ULTRASOUND VISUALIZATION TRAINING PHANTOM CIRS 077
Benchmark images with physical objects
The Ultrasound 3D Visualization Training Phantom is a hands-on tool to correlate physical objects and their corresponding ultrasound images.
The phantom consists of seven 3-D anechoic targets embedded in a scattering background at various depths. Plastic replicas of each embedded object are provided with the phantom to allow for comparison between the acquired ultrasound image and the physical object.
The phantom background in encased in a soft, skin-like membrane, surface that mimics the feel of scanning on a live patient. The rounded shape allows users to obtain images from a variety of angles and explore the relationship between probe positioning and imaging in a fun way.
Features:- Seven embedded anechoic targets
- Plastic replicas of embedded objects for visual comparison
- Soft, skin-like membrane replicates feel of scanning on a live patient
- Rounded surface allows image acquisition at a variety of angles

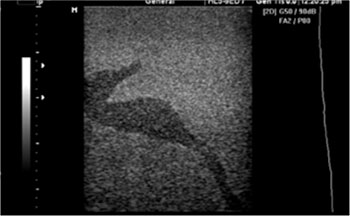

Ultrasound image of embedded seahorse |

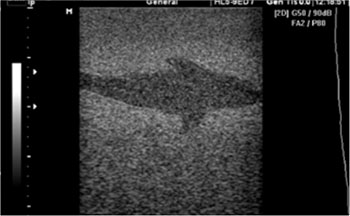

Ultrasound image of embedded dolphin |
|
|
|||||||||||||||||||||||
