Prostate Training Phantom - CIRS 070S & 070L
The Ideal Training Device for Image-Guided Procedures
The Model 070S and 070L is a realistic and durable prostate training phantom for both diagnostic and interventional procedures.
Enhanced realism has been achieved with a Zerdine® gel formulation that better simulates the ultrasound contrast between the prostate and background tissue. The gel formulations provide CT, MR and elastography contrast for multi-modality imaging. CIRS' proprietary Z-Skin™ formulation more accurately simulates the rectal wall, providing a more realistic scanning environment.
Z-Skin™ provides perineal access for interventional procedures, and closes up on itself after it is punctured so that the Zerdine® gel inside the phantom is not exposed to air during scanning. Minimal air exposure better protects the gel from drying out, thus increasing the phantom's useful life. In addition, Z-Skin is extremely stretchable and will protect the gel inside the phantom from tearing when the rectal probe is manipulated at severe angles. The phantom accommodates both end-fire and side-fire ultrasound transducers. Zerdine® is specially formulated to minimize tearing when punctured, providing a self-healing capability that dramatically extends the life of the phantom during interventional procedures.
The phantom is available in two configurations: one with embedded lesions (Model 070L), and one without embedded lesions (Model 070S).
Features:- Includes rectal wall, seminal vesicles, perineal membrane and urethra
- Enhanced realism available with the inclusion of a bladder, plus digitally modeled prostate gland and seminal vesicles
- Phantom available with and without lesions
- Train for ultrasound-guided seed implantation, cryosurgery and needle biopsy in one phantom
- Compatible with various probes and surgical tools
| Specifications | |
| Container |
Dimensions: 9 cm x 10 cm x 10 cm Weight: 2 lbs Probe opening: 12 mm |
| Perineal Membrane | Material: Z-Skin™ |
| Background Gel |
Standard Ultrasound background 0dB with respect to liver reference |
| Urethra |
Dimensions: 0.7 cm Ø Material: Zerdine®(1), anechoic |
| Seminal Vesicles |
Dimensions: 7 mm Ø x 10 cm long Material: Zerdine®, hypoechoic with respect to background |
| Prostate |

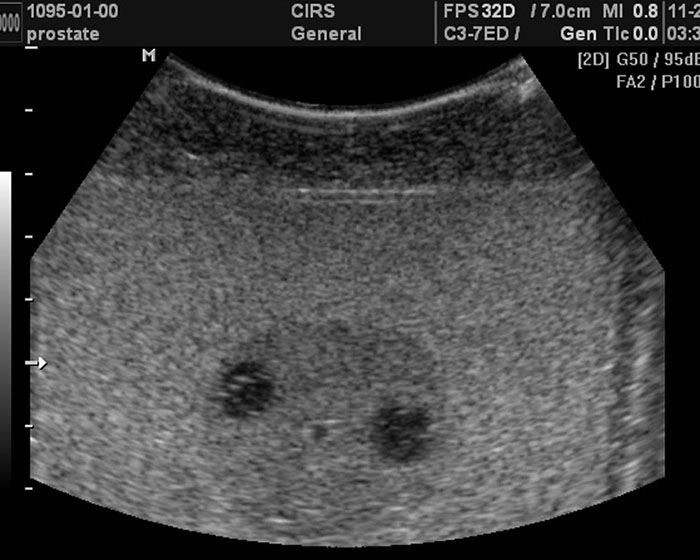

Hypoechoic with respect to background 35 cc Digitally Modeled with seminal vesicles and bladder Model 070L: Embedded lesions Model 070S: No lesions |
| Rectal Wall | Material: Z-Skin™ |
