Breast Biopsy Ultrasound Phantom
Breast Phantom for Ultrasound Applications
Removable Base
- Fine needle aspiration training
- Guided needle biopsy procedure
- Robotic applications
- Testing, teaching and demonstration
- May be ordered for Multi-modalities
The breast phantom construct mimics average 3D shape, size, mechanical properties and ultrasound echogenicity of a human breast. All components are based on Yezitronix's new unique MajesticMix material. Speed~ 1540m/s
Multi-layer Material – Each tissue (fat, cysts or lesions) is independent and has its own characteristics defined by a real 3D shape, gray level and mechanical properties.
There are embedded cysts and lesions in the breast phantom to simulate biopsies or needle aspiration procedures. Multiple usages of the same packaged breast phantom during an extended period of time (needle tracks faint with time).
Ultrasound Image of Breast Phantom Lesions and Cysts

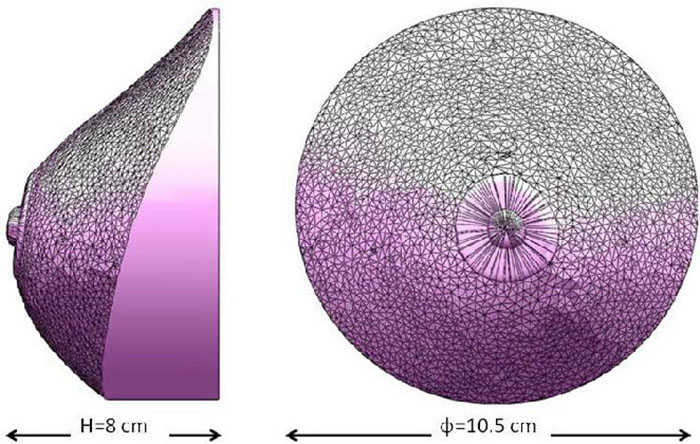

Breast Dimension:
|
Enclosure Dimension:
|
| Models | |
| Item # | Description |
| B-RG - 1.2 | Regular mode with 4 cysts and 4 lesions |
| B-MM - 1.2 | Multi-modality mode (Ultrasound, CT, MRI) |
| B-EX - 1.2 | With extra cysts and lesions |
| B-CC - 1.2 | Colored components (Cysts, lesions) for biopsy training |
| B-CD - 1.2 | Custom design according to customer specifications |
