Brachytherapy Prostate Ultrasound Phantom without catheter
Accurate Tissue Mimicking Device for Ultrasound Applications

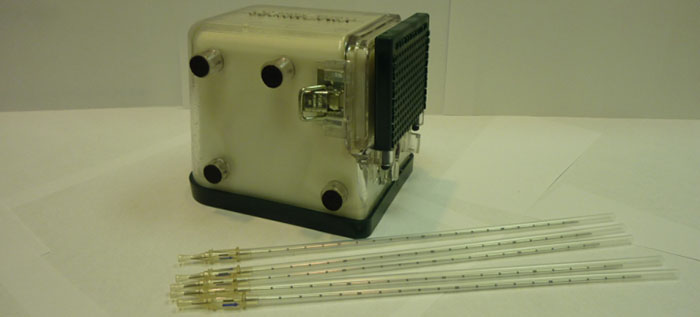

Radioactive seeds implantation Model S-B-2.3 Ultrasound Prostate Phantom is a multiple usage phantom developed for simulation and training for brachytherapy procedures.
Its ingenious and versatile design makes the S-B-2.3 model a useful tool for simulation and training of different ultrasound rectal probes and surgical elements involved in prostate medical procedures.
The prostate phantom construction mimics the exact 3D shape size of:
- 40cc prostate
- Urethra
- Seminal vesicle
- Ejaculatory duct
- Rectal wall
- Partial bladder
- Fat muscle tissues
- Perineal tissue
- Numerous lesions located inside the prostate.
- OEMs'
- Medical devices simulation
- Robotic system calibration
- Hospitals
- Clinics
- Medical school training
- Demonstrations

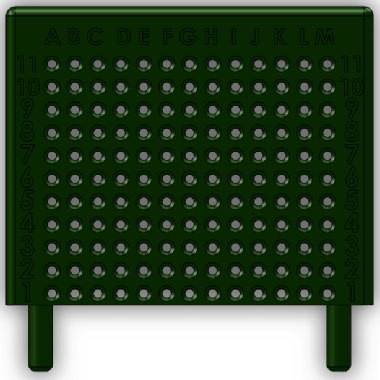

Brachytherapy template included with the Phantom

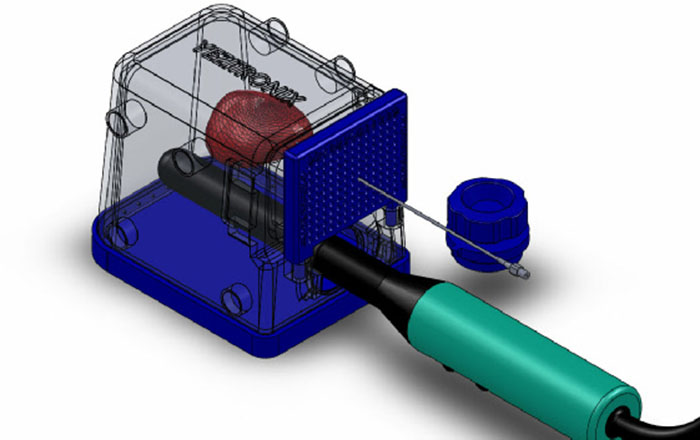

Brachytherapy mode

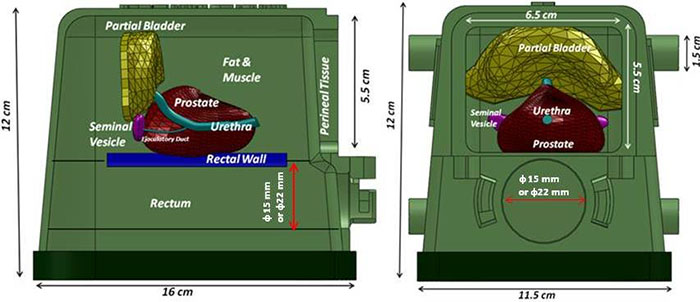

Internal tissues setup of the Brachytherapy prostate phantom model.
Diameter of 15 mm or 22 mm according client demand.

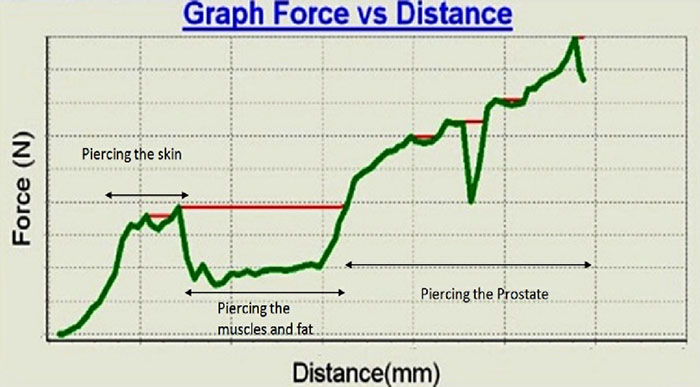

Real time graph (Prostate phantom device test bed) -
of force as function of needle depth penetration
All components are based on Yezitronix's new unique MajesticMix material.
Speed of propagation ~ 1540m/s
Specifications:
Multi-layer material: Each tissue or organ is independent and has its own characteristics defined by a real 3D shape, echogenicity level and mechanical properties. There are 4 embedded lesions in the prostate to help simulate biopsies.
Multiple uses of the same packaged phantom during an extended period of time.
Enclosure: 16(L) x 11.5(W) x 12(H), Material - PVC, PC.
Front upper window 6.5(W) x 5.5 (H), Probe input diameter - 3.5 (all units in cm)
Perineal tissue: 65(W) x 55 (H) x 3mm thick, approximate mechanical response of human tissue
Fat & Muscles: Approximate mechanical response of human tissue
Urethra: 6mm diameter and 61mm(L)
Ejaculatory duct: 4mm diameter 28mm (L)
Seminal vesicles: 2 of 25(L)x6(W)x 4mm(Thick)
Prostate gland: 40cc, approximate mechanical response of human tissue
Rectal wall: 81(L)x 75(W)x2.5(thick)mm, approximate mechanical response of human tissue.
Partial bladder: 13.4cc
Lesions: 4 Elliptic 0.3cc
Template: 13 columns and 11 rows x 2 mm centerline
Multi-layer material: Each tissue or organ is independent and has its own characteristics defined by a real 3D shape, echogenicity level and mechanical properties. There are 4 embedded lesions in the prostate to help simulate biopsies.
Multiple uses of the same packaged phantom during an extended period of time.
Enclosure: 16(L) x 11.5(W) x 12(H), Material - PVC, PC.
Front upper window 6.5(W) x 5.5 (H), Probe input diameter - 3.5 (all units in cm)
Perineal tissue: 65(W) x 55 (H) x 3mm thick, approximate mechanical response of human tissue
Fat & Muscles: Approximate mechanical response of human tissue
Urethra: 6mm diameter and 61mm(L)
Ejaculatory duct: 4mm diameter 28mm (L)
Seminal vesicles: 2 of 25(L)x6(W)x 4mm(Thick)
Prostate gland: 40cc, approximate mechanical response of human tissue
Rectal wall: 81(L)x 75(W)x2.5(thick)mm, approximate mechanical response of human tissue.
Partial bladder: 13.4cc
Lesions: 4 Elliptic 0.3cc
Template: 13 columns and 11 rows x 2 mm centerline
| Models | |
| Item # | Description |
| S-BP - 2.3 | Bi-plane (Side Fire) mode |
| S-B - 2.3 | Brachytherapy mode |
| S-EF - 2.3 | End fire mode |
| S-MM - 2.3 | Multi-modality mode (Ultrasound, CT, MRI) |
| S-WL - 2.3 | Without lesions |
| S-CC - 2.3 | Colored components (Bladder, Urethra, Seminal Vesicles, Ejaculatory Duct)for Biopsy training |
| S-HU - 2.3 | With hollow Urethra for catheter insertion |
| S-CD - 2.3 | Custom Design according to customer specifications |
