Bi-plane Prostate Ultrasound Phantom
Accurate Tissue Mimicking Device for Ultrasound Applications
Suitable for:
- OEMs'
- Medical devices simulation
- Robotic system calibration
- Hospitals
- Clinics
- Medical school training
- Demonstrations
Biplane Ultrasound Prostate Phantom is a multiple usage phantom developed for training and simulation of medical procedures such as ultrasound guided surgery, needle biopsy and ultrasound scanning.
Its ingenious and versatile design makes model S-BPNC-2.3 an incredible useful tool for training of different ultrasound rectal probes and surgical elements involved in the prostate medical procedures. All phantom tissues mechanical properties are approximated to human tissues. All prostate phantom layers mimic tissue behaviour (dynamics) when pierced.
For example; a needle is piercing the Multi-Layer Prostate Phantom, it will generate a "Haptic Feedback (tactile)" to the user, simulating the real human tissue during biopsy.
The prostate phantom construction mimics the exact 3D shape size of:
- 40cc prostate
- Urethra
- Seminal vesicle
- Ejaculatory duct
- Rectal wall
- Partial bladder
- Fat muscle tissues
- Perineal tissue
- Numerous lesions located inside the prostate.

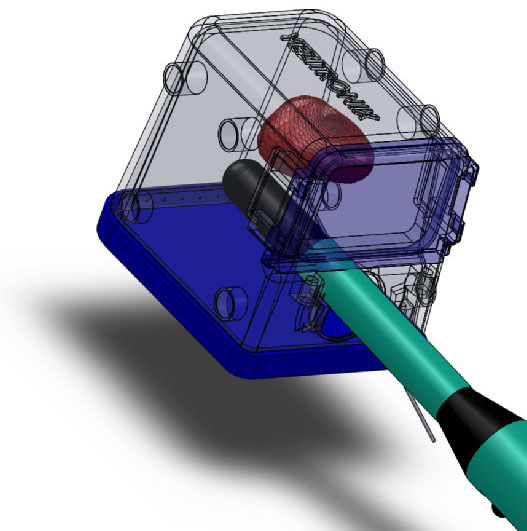

Bi-plane biopsy mode

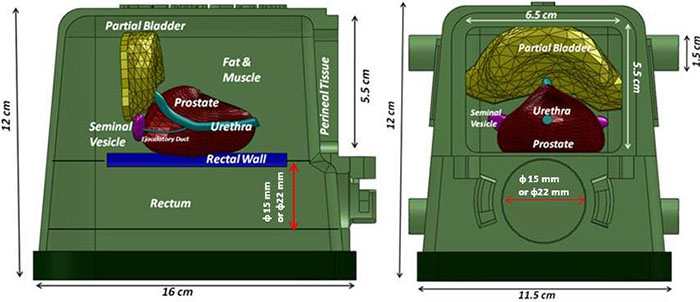

Internal tissues setup of the prostate phantom bi-plane model.
Diameter of 15 mm or 22 mm according client demand.

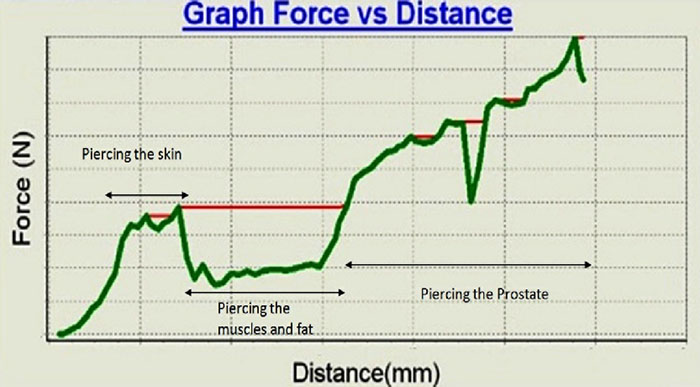

Real time graph (Prostate phantom device test bed) -
of force as function of needle depth penetration
All components are based on Yezitronix's new unique MajesticMix material.
Speed of propagation ~ 1540m/s
Specifications:
Multi-layer material: Each tissue or organ is independent and has its own characteristics defined by a real 3D shape, echogenicity level and mechanical properties. There are 4 embedded lesions in the prostate to help simulate biopsies.
Multiple uses of the same packaged phantom during an extended period of time.
Enclosure: 16(L) x 11.5(W) x 12(H), Material - PVC, PC and metal latches.
Front upper window 6.5(W) x 5.5 (H), Probe input diameter - 3.5 (all units in cm)
Perineal tissue: 65(W) x 55 (H) x 3mm thick, approximate mechanical response of human tissue
Fat & Muscles: Approximate mechanical response of human tissue
Urethra: 6mm diameter and 61mm(L)
Ejaculatory duct: 4mm diameter 28mm (L)
Seminal vesicles: 2 of 25(L)x6(W)x 4mm(Thick)
Prostate gland: 40cc, approximate mechanical response of human tissue
Rectal wall: 81(L)x 75(W)x2.5(thick)mm, approximate mechanical response of human tissue.
Partial bladder: 13.4cc
Lesions: 4 Elliptic 0.3cc
Multi-layer material: Each tissue or organ is independent and has its own characteristics defined by a real 3D shape, echogenicity level and mechanical properties. There are 4 embedded lesions in the prostate to help simulate biopsies.
Multiple uses of the same packaged phantom during an extended period of time.
Enclosure: 16(L) x 11.5(W) x 12(H), Material - PVC, PC and metal latches.
Front upper window 6.5(W) x 5.5 (H), Probe input diameter - 3.5 (all units in cm)
Perineal tissue: 65(W) x 55 (H) x 3mm thick, approximate mechanical response of human tissue
Fat & Muscles: Approximate mechanical response of human tissue
Urethra: 6mm diameter and 61mm(L)
Ejaculatory duct: 4mm diameter 28mm (L)
Seminal vesicles: 2 of 25(L)x6(W)x 4mm(Thick)
Prostate gland: 40cc, approximate mechanical response of human tissue
Rectal wall: 81(L)x 75(W)x2.5(thick)mm, approximate mechanical response of human tissue.
Partial bladder: 13.4cc
Lesions: 4 Elliptic 0.3cc
| Models | |
| Item # | Description |
| S-BPNC - 2.3 | Bi-plane Prostate Ultrasound Phantom |
| S-BP - 2.3 | Bi-plane (Side Fire) mode |
| S-B - 2.3 | Brachytherapy mode |
| S-EF - 2.3 | End fire mode |
| S-MM - 2.3 | Multi-modality mode (Ultrasound, CT, MRI) |
| S-WL - 2.3 | Without lesions |
| S-CC - 2.3 | Colored components (Bladder, Urethra, Seminal Vesicles, Ejaculatory Duct) for Biopsy Training |
| S-HU - 2.3 | With hollow Urethra for catheter insertion |
| S-CD - 2.3 | Custom Design according to customer specifications |
