Interventional Arterial Ultrasound Phantom ATS PVB-1 & PVB-3
The PVB series of Interventional Arterial Phantoms are constructed of a tissue mimicking rubber-based material. The phantoms are housed in a chemical resistant, injection molded polypropylene shell to permit sterilization be means of autoclaving.

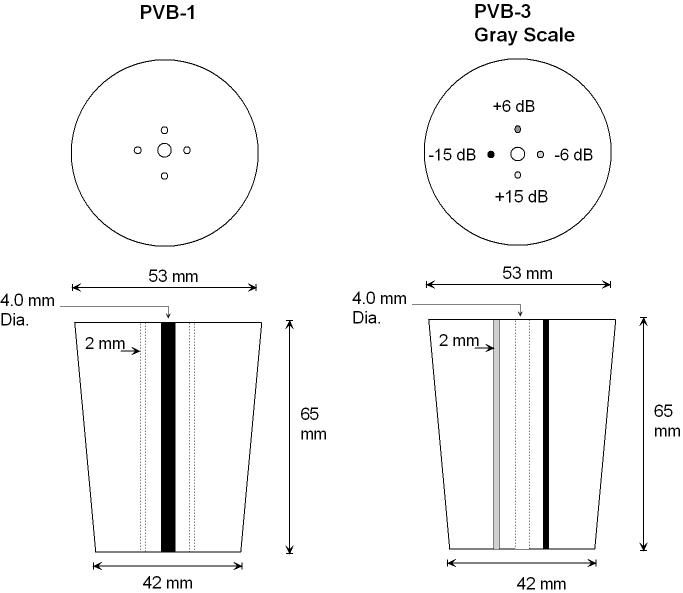

Model PVB-1 contains five cylindrical cavities. A 4.0 mm diameter cavity is located in the center of the phantom and four 2 mm cavities are positioned at 90º intervals around the central cavity. The edge to edge spacing of the four cavities relative to the central cavity are 1, 2, 3, and 4 mm.
Model PVB-3 contains five cylindrical cavities. A 4.0 mm diameter cavity is located in the center of the phantom and four 2 mm gray scale targets ranging from +15 to -15 dB relative to the background material are located at 90° intervals around the central cavity. The edge to edge spacing of the four 2 mm cavities relative to the central cavity is 4 mm.
The PVB is designed to evaluate the acoustical performance of an intra-arterial ultrasonic transducer prior to performing an examination of the patient.
Recommended Care
For best results the phantom should be kept clean at all times. In particular a build-up of dried coupling gel on the scan surface should be avoided. The phantom may be cleaned with warm water using a lint free cloth. Stubborn stains and dirt may be removed with a mild household cleaner. The use of petroleum solvents should be avoided since they may adversely react with the rubber-based material.
| Specifications | |
| Tissue Mimicking Material | |
| Type | Urethane Rubber |
| Melting Point | 100°C |
| Freezing Point | <-40°C |
| Attenuation Coefficient | 0.5 dB/cm/MHz ± 5.0% |
| Speed of Sound | 1450 m/s ±1.0% at 23° |
| General | ||
| PVB-1 | PVB-3 | |
| Overall Dimensions | ||
| Major Diameter | 53 mm* | 53 mm* |
| Minor Diameter | 42 mm* | 42 mm* |
| Height | 65 mm* | 65 mm* |
| Weight | 110 Gm* | 110 Gm* |
| Housing Material | Polypropylene | Poilypropylene |
| Intra-luminal Cavity | 1 | 1 |
| Cavity Diameter | 4.0 mm | 4.0 mm |
| Targets | ||
| Type | Circular Cavities | Echogenic, Cylindrical |
| Number of Targets | 4 | 4 |
| Diameter | 2 | 2 |
| Length | 65 mm | 65 mm |
| Radial Spacing | 90° | 90° |
| Interval Spacing (edge to edge) | 1, 2, 3, 4 mm | 4 mm |
| Contrast relative to background material (dB) | N/A | +15, +6, -6, -15 |
| *Nominal dimensions | ||
| **Lieftime Warranty** | ||
