Baby's Head Teaching Ultrasound Phantom ATS 3DBH

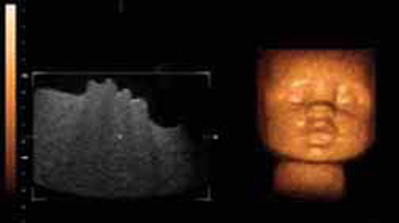

ATS Laboratories' 3D (three dimensional) Model 3DBH 3D Full Baby phantom has been specifically designed to provide the user with a scanning demonstration device for 3D surface contour rendering and 3D reconstruction. The estimate fetal gestational age is between 36-40 weeks.
These Model 3DBH is manufactured using our rubber based tissue-mimicking material. This TM material insures durability, acoustically stability, accuracy and the optimum in design flexibility.
Care of the Rubber-Based Phantom
For best results the phantom should be kept clean at all times. In particular a build-up of dried coupling gel on the scan surface should be avoided. The phantom may be cleaned with mild hand soap and warm water. Particularly stubborn stains and dirt may be removed with a mild household cleaner. The use of petroleum solvents should be avoided since they may adversely react with the rubber-based material.
|
|
| Specifications | Tissue Mimicking Material | ||
| General | Model 3DBH | Type | Urethane Rubber |
| Overall Dimensions | 22 x 20 x 12cm* | Freezing Point | < -40° C |
| Weight | 4.7 Kg* | Melting Point | > 100° C |
| Scan Surfaces | 3 | Attenuation Coeffecient Background | 0.5 dB/cm/MHz ± 5.0 |
| Warranty | Lifetime | Speed of Sound | 1450 m/s ±1.0% at 23° |
| *Approximate measurements | Contrast relative to background material | +15 dB | |
