CYST Ultrasound Phantom Kyoto Kagaku N-255

Ultrasound QA Phantoms are designed for assessment and calibration of ultrasound probes and other devices. Kyoto Kagaku original unique phantom material is stable and long-life and shows excellent homogeneous granular background reflection.

Probe performance can be evaluated up to 200 mm depth.

Geometrical resolution and permeability can be assessed

Specifications

Material:
Urethane elastomer, acrylic, nylon
Acoustic Features:

Sonic velocity: 1440m/sec at 25° C
Sonic velocity: 1440m/sec at 25° C
Rate of decrease: 0.57 dB/cm MHz at 25° C
Acoustic impedance: 1.38Rayl at 25° C

Set includes:
1 phantom each
1 carrying case each

Phantom size:
19 x 22 x 7 cm, 3.6 kg

Packing size:
35 x 36 x 24cm, 6 kg

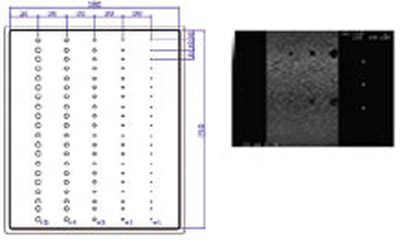

CYST Ultrasound Phantom Kyoto Kagaku N-255 ultrasound image and chart
