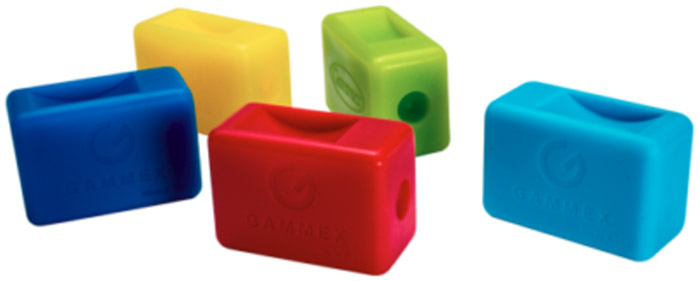

Sono TE Phantom - Gammex 416
Transducer Evaluation Device - UTED
Quick and easy transducer evaluation via multiple scanning surfaces
The color of the phantom is cosmetic. Does not affect specification or performance of the phanom.
The Sono TE Phantom is small and durable; designed to be kept with every ultrasound system. Shadows or artifacts in the image indicate a problem with one or more transducer elements, while the following image characteristics indicate the transducer is functioning properly:
- Smooth, homogenous surface
- Uniform grey scale
- No targets are visible
Personalize the Sono TE Phantom with your brand. You may select from a range of colors. On large orders, you may also add your logo.
Features:- Silicone-based phantom
- Varying surfaces and chambers
- Compact
- Easy to sterilize
- A low cost, high value resource for sonographers
- Provides affordable uniformity tests for linear, convex and intercavity transducers
- Keep a Sono TE phantom with each ultrasound system to quickly identify bad elements for higher clinical confidence and less work while scanning.

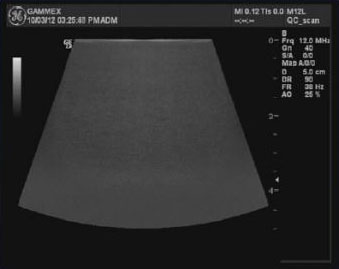

Phantom used with a normal transducer |

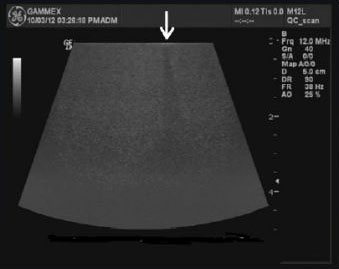

Phantom used with a transducer with 1 bad element |
The Sono TE/UTED comes with a 1 year warranty
| Specifications | |
| Material | Silicone Base |
| Dimensions (L/W/H) |
11.5 x 5.7 x 7.5 cm (4.63 x 2.25 x 3 in) |
| Weight | 580 ± 5g (1 lb. 4 oz.) |
|
Designed for use with linear, convex and inter-cavity transducers. Not for use with phased array sector scan transducers. |
|
| Models and Ordering | |
| Item | Description |
| 416 |
Sono TE Phantom - Gammex 416 Transducer Evaluation Device - UTED |
|
STANDARD COLOR IS RED. Other colors are available with purchase quantity of 10 or more pieces – all need to be the same color. Colors Available: Red, Light Blue, Dark Blue, Yellow, and Lime Green |
|
