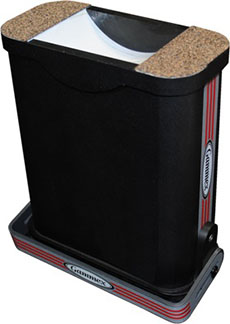

Gammex 410 LE-S/SC/SCG
Multi-Purpose Accreditation Phantom
Product Overview
The 410 family of Ultrasound phantoms lets you pick and choose what level of testing is right for your quality assurance program. All 410
phantoms will allow you to evaluate uniformity and artifacts, geometric accuracy and system sensitivity. This phantom provides a standard of
quality assurance required for routine testing of ultrasound scanning systems.
Benefits
- Provides all the required quality control indicators for testing your ultrasound system
- Distance accuracy
- Image uniformity
- Axial and lateral resolution
- Cyst imaging capabilities
- Dead Zone Assessments
- Depth of penetration
- Compact design
- Economical
Features
- The phantom utilizes the unique Tissue Mimicking gel of Gammex
- Multiple scanning surfaces to easily test all types of transducer shapes
- Uniformity Assessments
- Sensitivity Assessments
- Dead zone Assessments
- Harmonic Imaging
Warranty
- Each phantom comes with a 1 year Warranty
- Extended Warranty plans are available.
|
Feature
|

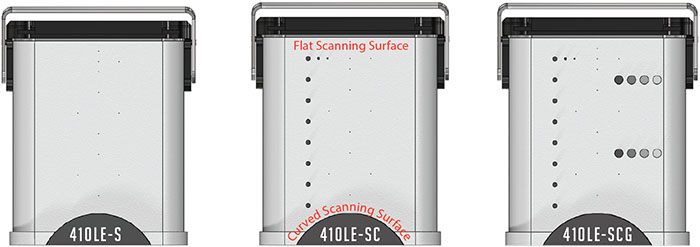

410LE-S
|
410LE-SC
|
410LE-SCG
|
|
Uniformity Assessments |
X |
X |
X |
|
Geometry Assessments |
X |
X |
X |
|
Sensitivity Assessments |
X |
X |
X |
|
Deadzone Assessments |
X |
X |
X |
|
Harmonic Imaging |
X |
X |
X |
|
Multiple Transducer Scanning Surfaces |
X |
X |
X |
|
Anechoic Cysts |
|
X |
X |
|
Grey Scale Targets |
|
|
X |
|
SPECIFICATIONS
|
|
Tissue Mimicking Material
|
Multi Frequency HE Gel™
|
|
Attenuation |
0.5db/cm/MHz (0.7 optional) |
|
Length x Width x Height |
18.8cm x 9.0 cm x 21.7cm |
|
Weight |
2.8 kg (6.2 lbs.) |
|
HE Gel Freezing Point |
Below 0°C |
|
HE Gel Melting Point |
Above 100°C |
|
Frequency Range |
2.25-15 MHz |
|
Speed of Sound |
1540 m/s |
|
Number of Scanning Surfaces |
2 |
|
Horizontal Geometry Groups |
3 |
|
Vertical Geometry Targets |
12 |
|
Cross Targets (Dead zone Detection) |
1 |
