Quantitative Ultrasound Phantom CIRS 063
Tissue Equivalent Calibration Standard
The Model 063 QUS Phantom provides a linear response of Broadband Ultrasonic Attenuation (BUA) in the diagnostic frequency range for assessment of bone quality.
Features- Linear response in the diagnostic frequency range
- Can be molded into any shape (custom manufacturing)
- Mimics calcaneus bone
- Proven construction methodology
- Known material properties permit phantom to be used as a calibration tool with various QUS systems
|

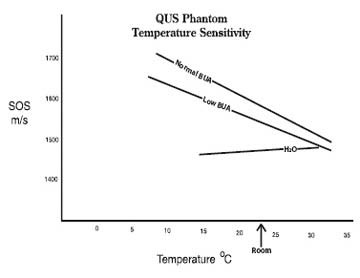

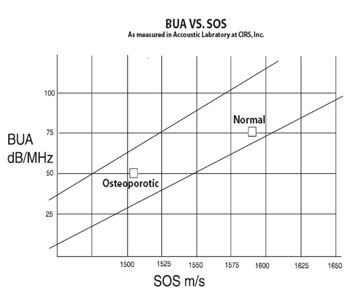

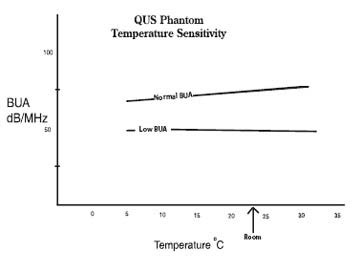

Model 063 Specifications Material: Proprietary Urethane Thickness: 36 mm Speed of Sound Range: 1500-1600 m/s at room temperature Test Conditions in CIRS Accoustic Laboratory: Water bath Transducer center frequency = 0.5 MHz Sampling frequency = 20 million samples/sec. Frequency range for BUA evaluation = 0.25 - 0.55 MHz Temperature = 21.3°C
|
|
||||||||
|
|
