3D Ultrasound Calibration Phantom ATS 560H
The Model 560H rubber-based, tissue-mimicking™ phantom is designed to provide a basic means of evaluating an imaging system’s performance and its 3D volumetric measurements.

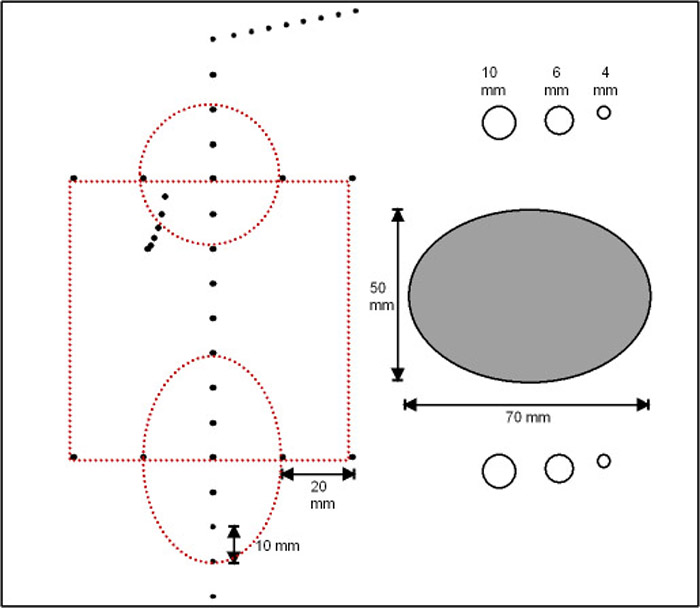

The phantom is designed with a combination of monofilament line targets.
Six non-echogenic cylindrical targets of varying sizes and a 3D egg-shaped target structure.
The monofilament line targets have a diameter of 0.12 mm, to optimize the displayed image at frequencies ranging from 2.25 to 7.5 MHz. Four groups of line targets are provided to
evaluate the vertical and horizontal calibration measurements, axial-lateral resolution and the dead zone.
Tests Performed
- Dead Zone or Ring-Down
- Vertical Measurement Calibration
- Horizontal Measurement Calibration
- Sensitivity/Penetration
- Functional Resolution
- Focal Zone
- Axial & Lateral Resolution
- Image Uniformity
- Volume Measurements
|
Uses:
- Quality Assurance
- Basic Clinical Performance
- In-Process Manufacturing
- 3D Volume Measurement
- Teaching
|
Specifications
|
General
|
Overall Dimensions |
23.4 x 20.5 x 9.5cm |
|
Weight |
3.1 Kg |
|
Scan Surfaces |
4 |
|
Scan Surface Dimensions |
7 x 8 cm
19 x 8 cm |
|
Tissue Mimicking Material
|
Type |
Urethane Rubber |
|
Freezing Point |
< -40°C |
|
Melting Point |
> 100°C |
|
Attenuation Coefficient |
0.5 dB/cm/MHz ±
5.0%
|
|
Speed of Sound |
1450 m/s ± 5.0% |
|
Line Targets
|
Material |
Monofilament
Nylon |
|
Diameter |
0.12 mm ± 5%
|
|
Vertical Group |
|
|
Number of Targets |
17 |
|
Interval Spacing |
1.0 cm |
|
Depth |
1.0 - 18.0 cm |
|
Horizontal Group |
|
|
Number of Targets |
10 |
|
Number of Groups |
2 |
|
Interval Spacing |
2.0 cm |
Depth
Scan Surface #1
Scan Surface #3 |
5.0 cm
5.0 cm |
|
Dead Zone Group
|
|
|
Number of Targets |
9 |
|
Lateral Displacement |
5.0 mm |
|
Interval Spacing |
1.0 mm |
|
Depth |
2.0 - 10.0 mm |
|
|
|
|
Axial-Lateral Resolution Group |
|
|
Number of Targets |
6 |
|
Lateral Displacement |
1.0 mm |
Interval Spacing
Axial Depths
Lateral Depths |
5.0, 4.0, 3.0, 2.0, 1.0 mm
5.5 & 12.5 cm
5.5 & 14 cm |
|
Depth |
7.0, 11.0, 4.0, 16.0 cm |
|
Anechoic Target Structures
|
Type |
Non-echogenic,
cylindrical |
|
Number of Targets |
6 |
Targets:
Group 2, 3, 4
Group 6, 8 |
17
8 |
|
Diameters |
4, 8, 10 mm |
Interval Spacing
(center to center) |
1.0 cm |
|
Depth |
3, 5, 12, 15 cm |
|
3D Target Structure
|
Type |
Echogenic, Egg-shaped structure |
|
Number of Targets |
1 |
|
Dimensions |
Length: 70 mm
Width: 50 mm |
|
Volume |
91.6 cm3 |
***Lifetime Warranty***
|
