Breast & Small Parts Phantom ATS 550
Model 550 provides a comprehensive means of evaluating the performance of a diagnostic ultrasound system at frequencies ranging from 7.5 to 15 MHz. It is designed with a combination of monofilament line targets and tissue mimicking cylindrical targets of varying sizes and contrasts. The monofilament line targets have a diameter of 0.05 mm, to optimize the displayed image at frequencies of 7.5 MHz or greater.

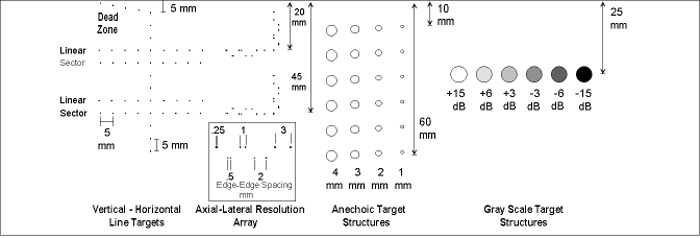

Four groups of line targets are provided to evaluate the vertical and horizontal calibration measurements, dead zone and axial-lateral resolution. The Model 550 is constructed of our rubber-base tissue mimicking material to provide a phantom which is accurate, durable and maintenance free.
Tests Performed
|
Uses
|
| Specifications | |||
| General | |||
| Operating Frequency Range | 7.5 - 15.0 MHz | Overall Dimensions | 28 x 11 x 11 cm* |
| Weight | 3.1 Kg* | Scan Surfaces | 1 |
| Scan Surface Dimensions | 25 x 8 cm | ||
| Line Targets | |||
| Diameter | .05 mm | ||
| Vertical Group | |||
| Number of Targets | 10 | Interval Spacing | 5 mm |
| Depth | 5 - 50 mm | ||
| Dead Zone Group | |||
| Number of Targets | 5 | Lateral Displacement | 5 mm |
| Interval Spacing | 1.0 mm | Depth | 1.5 - 5.0 mm |
| Horizontal Group | |||
| Number of Targets | 9 | Number of Groups | 2 |
| Interval Spacing | 5 mm | Depth |
Linear Array: 20 & 40 mm Sector Array: 25 & 45 mm |
| Axial-Lateral Resolution | |||
| Number of Targets | 9 | Lateral Displacement | 1.0 mm |
| Interval Spacing | 3, 2, 1, .5 mm | Depth | 5 & 30 mm |
| Anechoic Target Structures | |||
| Group 1, 2, 3, 4 |
Targets per group 6 |
Diameter 1, 2, 3, 4 mm |
Depth 10 - 60 mm |
|
Interval Spacing 10 mm (Center-to-Center) |
|||
| Gray Scale Target Structures |
Number of Targets 6 |
Diameter 6 mm |
Depth 20 mm |
|
Contrast relative to the background material (dB) +15, +6, +3, -3, -6, -15 |
Interval Spacing 10 mm (Center-to-Center) |
||
