Multipurpose Ultrasound Phantom ATS 514

The Model 514 Multipurpose Phantom is composed of a hydrogel-based material which acoustically mimics human tissue. The phantom is contained in an acrylic housing to provide strength and permanence. A soft polyurethane film with an impedance closely matching that of human skin is used for the scan window, thereby allowing easy transmission of the ultrasound beam into the phantom. A built-in scanning well is provided to allow the use of water as the coupling medium. However, coupling gels may be used if desired.

The phantom is designed specifically to evaluate the performance of sector scan, linear, phased and annular array ultrasound imaging systems.

Tests Performed
  • Dead Zone or Ring-Down
  • Vertical Measurement Calibration
  • Axial and Lateral Resolution
  • Sensitivity
  • Focal Zone
  • Functional Resolution
  • Definition and Fill-in
  • Gray Scale & Displayed Dynamic Range
 Uses:
  • Quality Assurance
  • Clinical Performance
  • In-Process Manufacturing
  • Final Q.A. Inspection
  • Research & Development
  • Teaching
Specifications
General
Overall Dimensions 23.5 x 22.4 x 9.7 cm*
Weight 5.33 Kg*
Housing Material Acrylic
Scan Surface 1
Scan Surface Material Polyurethane Membrane
Scan Surface Dimensions 22.0 x 8.0*
Tissue Mimicking Material
Type Hydrogel
Freezing Point 0°C
Melting Point 49°C
Speed of Sound 1450 m/s ± 1.0% at 23°C
Attenuation Coefficient 0.5 db/cm/Mhz ± 5.0%

Line Targets
Material Monofilament Nylon   Horizontal
Diameter 0.12 mm ± 5.0%   Number of Groups 3
Dead Zone     Target per group 5
Number of Targets 6   Depth 3.0, 8.0, 12.0 cm
Lateral Displacement 5 mm to 10 mm ± 0.1 mm
Vertical Group     Axial-Lateral Resolution
Number of targets 23   Number of Groups 3
Interval Spacing
Depth		 .5 cm ± 0.1 mm
1.0 - 5.0 cm		   Target per group 10
Interval Spacing
Depth		 1.0 cm ± 0.1 mm
5.0 - 20.0 cm		   Depth 3.5, 7.0, 12.0 cm
Anechoic Target Structure   Lateral displacement 1.0mm ± 0.1 mm
Type Non-echogenic, cylindrical   Axial Spacing 4, 3, 2, 1, .5 mm
Positional Tolerance ± 0.1 mm   Lateral Spacing 4, 3, 2, 1, mm
Diameter Tolerance ± 5%
Number of Groups 5   Gray Scale Target Structures
Diameters
Interval Spacing (center to center)
Depth of 1.0 - 3.0 cm
Depth of 3.0 - 20.0 cm		 2, 3, 4, mm

1.0 cm
2.0 cm		   Type
Number of Targets
Diameter
Depth		 Echogenic cylindrical
4
10 mm ± 5.0%
4 cm ± 1.0 mm
Diameters
Interval Spacing (center to center)
Depth of 1.0 - 3.0 cm
Depth of 3.0 - 20.0 cm		 2, 3, 4 mm

1.0 cm
2.0 cm		   Contrast relative to the
background material (dB)
+6, +3, -3, -6

WARRANTY ONE YEAR



*Nominal Dimensions

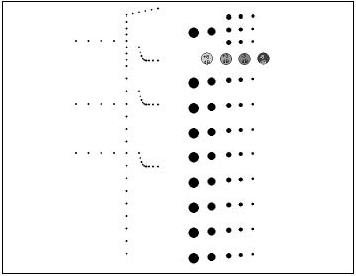

Multipurpose Ultrasound Phantom ATS 514 Target Diagram
