Doppler Ultrasound Flow Simulator - CIRS 069
Perform Sensitivity & Velocity QA on Doppler Ultrasound
The Doppler Ultrasound Flow Simulator is designed to simulate blood flow in a tissue mimicking phantom, and may be used to perform quality assurance testing of Doppler ultrasound devices. The two most common tests are sensitivity and velocity accuracy, but a number of other useful tests are also described in the literature (see references).

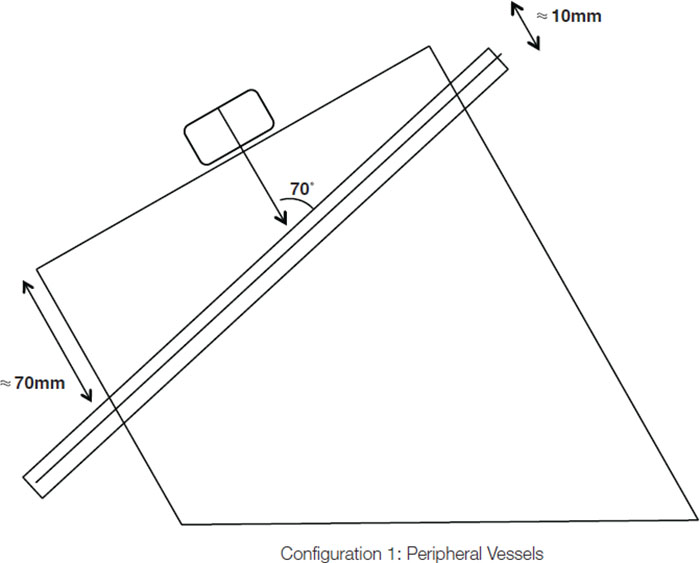

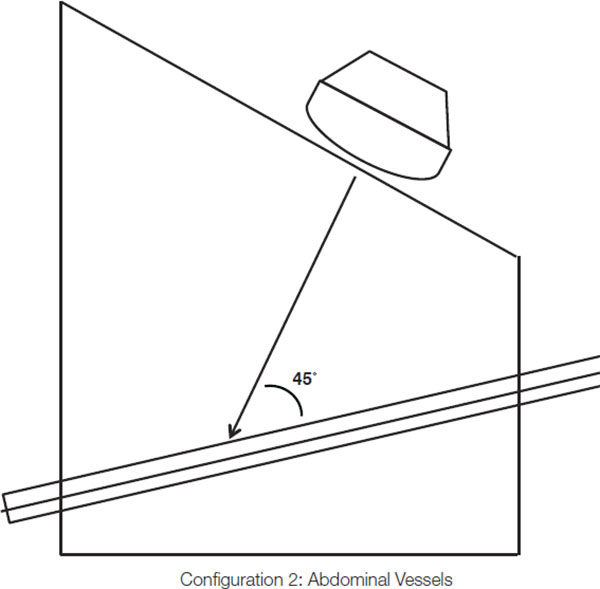

The simulator includes a tissue-mimicking flow phantom with a blood-vessel-simulating, ultrasound-compatible tube that enters the phantom at an angle. The phantom has both a top and bottom scanning surface that allows testing at varying depths and angles of orientation. This makes the phantom suitable for testing both peripheral flow and deeper abdominal vessels. The phantom is filled with Zerdine® tissue mimicking gel with a speed of sound of 1540 m/s, an attenuation of 0.7 dB/cm/MHz and a backscatter contrast designed to match that of the liver. It is housed in rugged ABS plastic for added durability. Customers who wish to combine B-mode quality assurance features with Doppler testing may request customization of the phantom to include wire, greyscale and anechoic targets.
Features- A peristaltic pump capable of providing flow rates of 0.5 to 12.5 ml/s, which translates to an average flow velocity of 2-70 cm/s. (Peak flow velocities will be 2-4 times greater than the average flow velocity due to the effects of laminar and pulsatile flow.)
- A fluid reservoir pre-filled with CIRS blood mimicking fluid. Replacement fluid may be ordered separately.
- A pulse dampener that converts the pulsatile flow from the peristaltic pump into constant velocity flow.
- Convenient color coded tubing with quick-disconnect fittings
- Convenient hard-shell carry case designed so that the full system is pre-configured within the case.

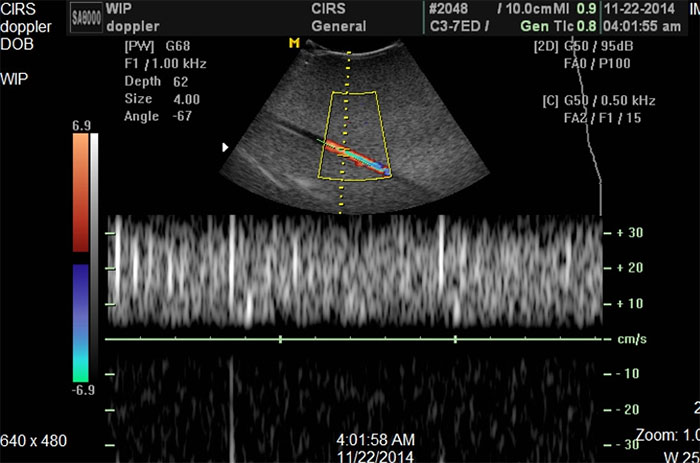

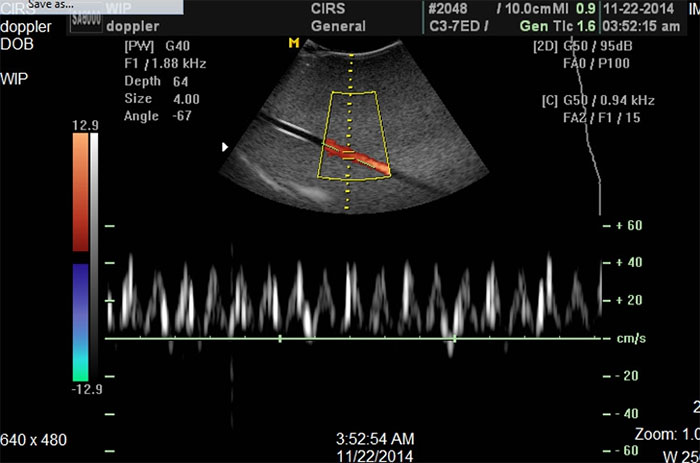

Doppler ultrasound images with Doppler Ultrasound Flow Phantom showing pulsatile and continuous flow.
Doppler ultrasound images with Doppler Ultrasound Flow Phantom showing pulsatile and continuous flow.
| Specifications | ||
| DOPPLER FLOW PUMP | ||
| Motor Type | Step motor | |
| Motor Steps Per Revolution | 200 | |
| Microstepping | 1/8 to 1/1 depending on motor speed | |
| DC Connector | 2.1mm, center positiove | |
| Voltage at DC Connector | 24V DC at full load | |
| Amperage | 900mA at full load | |
| Power Supply Type | Unregulated linear external wall adapter, country and power source specific | |
| Power Supply Output Rating | 24V DC @ 1A | |
| Dimensions |
7 3/4" x 5 1/4" x 5 3/4" High (19.685 cm x 13.335 cm x 14.605 cm) |
|
| Weight | 4.51 lbs. (2.05 kg) | |
| Maximum Speed | 372 RPM | |
| Minimum Speed | 0.0168 RPM | |
| Maximum Pumping Rate | 775.2 mL/min with 3/16 ID tubing | |
| Minimum Pumping Rate | 0.035 mL/min with 3/16 ID tubing | |
| Blood Mimicking Fluid | ||
| Property | Human Blood (37° C) | Blood Mimicking Fluid (22° C) |
| Viscosity (mPa) | 3 | 4 ± 0.5 |
| Velocity (m/s) | 1583 | 1570 ± 30 |
| Attenuation (dB/cm/MHz) | 0.15 | < 0.1 |
| Backscatter (f4 m-1 sr1) | 4x10-31 | Not Measured |
| Fluid Properties | Non Newtonian | Newtonian |
|
"Validation of a New Blood-Mimicking Fluid for Use in Doppler Flow Test Objects", K. Rammnarine, et. al., Ultrasound in Medicine & Biology, Vol. 24. No. 3, pp.454. |
||
| Tissue Equivalent Phantom | ||
| Dimensions | 20 x 12.5 x 27.5 cm | |
| Tubing |
Inside Dimensions: 3/16" Outside Dimensions: 1/4" |
|
| Scan Surface | Saran Laminate Membrane: 12.5 x 17.5 cm | |
| Background Material |
Zerdine® SoS: 1540 m/s ± 10 m/s Attenuation: 0.7 dB/cm-MHz |
|
References:
- Performance Criteria and Measurements for Doppler Ultrasound Devices: Technical Discussion; Second Edition. AIUM Technical Standards Committee, 2002.
- Testing of Doppler Ultrasound Equipment. Institute of Physical Sciences in Medicine, Report No. 79, ed. PR Hoskins, SB Sherriff and JA Evans, 1994.
- IEC TS 61895: Ultrasonics – Pulsed Doppler diagnostic systems – Test procedures to determine performance. First edition, 1999-10.
