Cardiac Doppler Flow Ultrasound Phantom ATS 523 & 523A
The Models 523 and 523A rubber based tissue mimicking Doppler flow phantoms contain four flow channels of various diameters (normally 2, 4, 6, and 8mm diameter) simulating the deep vasculature of the cardiac and abdominal vessels. Two fixed-angled scan surfaces maintain a constant angle between the sound beam and the ATS Model 707 Doppler Test Fluid flowing through the phantom.
**Lifetime warranty**
Tests Performed:
|
Uses:
|
|
|

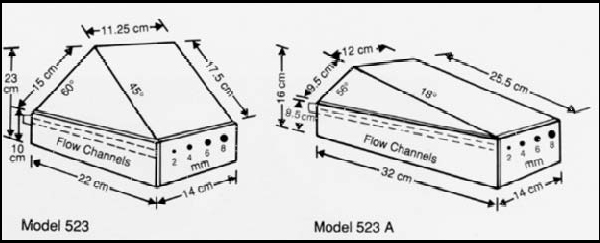

| The scan surfaces of the Model 523 are angled at 45° and 60°, permitting continuous scanning at depths ranging from 5 to 18 cm. | In the Model 523A the scan surfaces are angled at 18° and 56°, permitting continuous scanning at depths ranging from 3 to 17 cm. |
| Specifications | |
|
Model 523 Overall Dimensions: 22 x 14 x 10 cm Scan Surfaces: 2 Scan Surface Dimensions: 17.5x11.25cm @ 45° Scan Surface Dimensions: 15x11.25cm @ 60° Maximum Fluid Pressure: 15 psi (1.05 Kg/cm) Connectors: Stainless Steel Hose barb Weight: 6.1 Kg Tissue Mimicking Material: Urethane rubber Freezing Point: <-40°C Melting Point: >100°C Attenuation Coefficient: 0.5 dB/cm/MHz ± 5.0% Speed of Sound: 1450 m/s ±1.0% at 23° Flow Channels Type: Circular Number of Channels: 4 Diameters: 2, 4, 6, 8 mm Scan Surface Depths: 5.0-16.0cm @ 45° Scan Surface Depths: 5.0-18.0cm @ 60° |
Model 523A Overall Dimensions: 32 x 14 x 8.5cm Scan Surfaces: 2 Scan Surface Dimensions: 25.5x12.0cm @ 18° Scan Surface Dimensions: 9.5x12.0cm @ 56° Maximum Fluid Pressure: 15 psi (1.05 Kg/cm) Connectors: Stainless Steel Hose barb Weight: 6.9 Kg Tissue Mimicking Material: Urethane rubber Freezing Point: <-40°C Melting Point: >100°C Attenuation Coefficient: 0.5 dB/cm/MHz ± 5.0% Speed of Sound: 1450 m/s ±1.0% at 23° Flow Channels Type: Circular Number of Channels: 4 Diameters: 2, 4, 6, 8 mm Scan Surface Depths: 3.0-11.0cm @ 18° Scan Surface Depths: 4.0-17.0cm @ 56° |
Use in conjunction with the Model 700 Pumping System & Model 707 Doppler Test Fluid.
