Anatomage Virtual Dissection Systems
Trivitron Healthcare

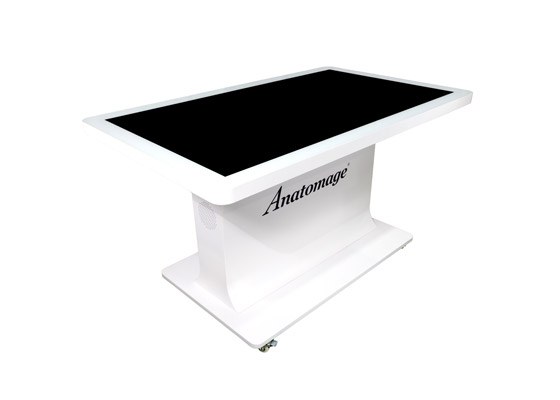

Anatomage Slim Table - 65-Inch Anatomy Teaching System
Anatomage Slim Table is a 65-inch interactive anatomy and physiology teaching system with virtual-dissection tools, clinical cases and assessment functions.
- Clipping, curved/linear, point-to-point and freehand dissection tools.
- Measurement, drawing, pin-drop and screen-capture tools.
- Lecture-recording and anatomy-assessment functions.
- BioDigital anatomy and physiology content.
| Specification | Details |
|---|---|
| Display | 65-inch multi-touch screen; 600 nit display with tempered-glass overlay |
| Gross anatomy | 1 standardized full-body female model |
| Histology library | 1,399 slides |
| Clinical case library | 200 patient CT/MRI cases |
| BioDigital content | 5 full-body dissectible models; 346 anatomy/physiology models; 219 preloaded quizzes |
| Connectivity | Wi-Fi, Bluetooth, HDMI, USB and Ethernet |
| Dimensions, as labeled by manufacturer | 62.4 x 35 x 37.8 inches (L x H x W) |
| Weight | 350 lb |

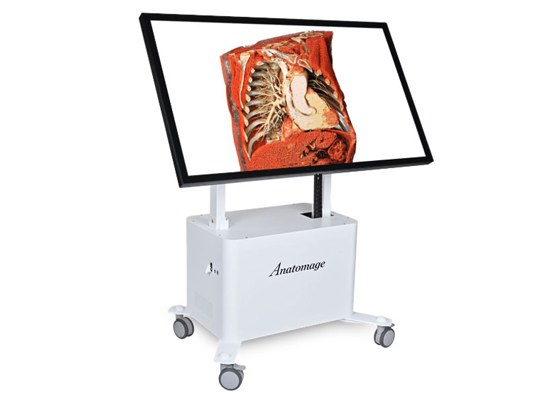

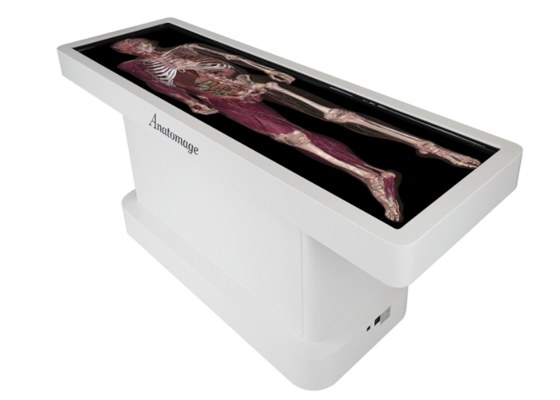

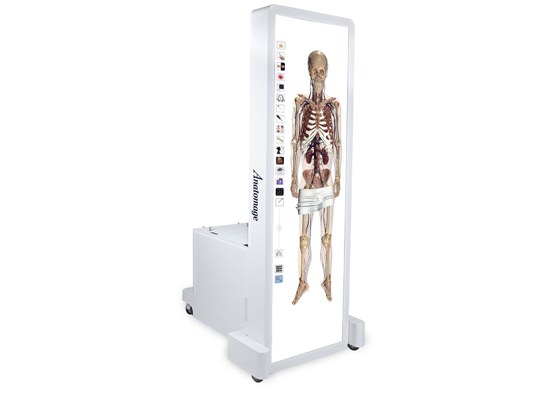

Anatomage Table Virtual Dissection System
The Anatomage Table is a digital anatomy visualization and virtual-dissection system for medical education, clinical training and research.
- Virtual dissection, clipping and point-to-point anatomy exploration.
- Physiological, cardiac and procedural simulation tools.
- Annotation, quizzes and teaching presets.
- Manufacturer-listed variants are Table Classic, Table Convertible and Table Clinical.
| Specification | Details |
|---|---|
| Digital cadavers | 3 male and 2 female life-size digitized cadavers |
| Case library | 1,500+ patient cases |
| Histology library | 1,000+ digital slides |
| Teaching presets | 220+ |
| Annotated prosections | 60 |
Configuration choices
- Table Classic, Table Convertible and Table Clinical variants, as listed by Trivitron.

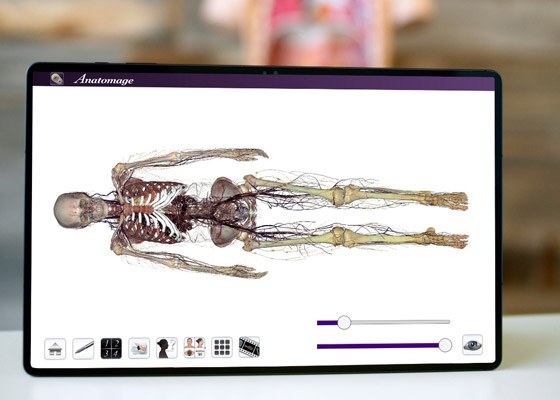

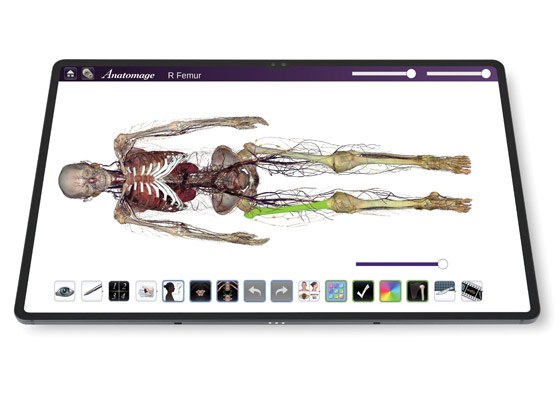

Anatomage Tablet Anatomy Learning System
Anatomage Tablet is a portable anatomy-learning system combining digitized human cadavers, CT/MRI cases, DICOM viewing and assessment tools.
- Axial, sagittal and coronal navigation.
- Clipping, structure isolation, measurement and annotation tools.
- Flashcards, quizzes and anatomy-pronunciation tools.
- DICOM viewing with PACS-supported workflow.
- Anatomage Share collaboration and file sharing.
| Specification | Details |
|---|---|
| Display | 14-inch HD multi-touch display |
| Digital cadavers | 1 male and 1 female |
| Annotated anatomical structures | 2,600+ |
| Regional anatomy video modules | 71 |
| CT/MRI cases | 300 |
| Curriculum presets | 75 across 11 body systems |
| Connectivity | Wi-Fi, Bluetooth and USB |
Request product information or a quote
Contact Supertech at (800) 654-1054 or send a quote request. Please specify the model, item number and configuration required.
Contact Supertech at (800) 654-1054 or send a quote request. Please specify the model, item number and configuration required.
