Abacus Wireless Handheld Radiation Alert® Detector
Windows Desktops and Laptops, Windows Mobile Devices & PalmOS
The Abacus is a handheld, digital radiation detection device that enables you to complete your surveys automatically with your Abacus and a Windows Mobile™, Palm™ Pilot or Windows™ Computer. Not only does it offer excellent sensitivity to low levels of alpha, gamma, and x-rays, but the internal "guard" detector automatically performs gamma subtraction from the "pancake" detector for unprecedented beta sensitivity. The software can display a variety of units for a wide array of applications, take timed counts, control the audio of each tube, and save your surveys for easy analysis and sharing, all wirelessly with Bluetooth® right to your computer! The Abacus also has a red count light, a beeper sound and selectable alarm thresholds for quick assessments.
Specifications
Detector
- Internal tube 1 - Halogen-quenched, uncompensated GM pancake tube with thin mica window, 1.4-2.0 mg/cm2 areal density. Effective diameter of window is 45 mm (1.75 in.).
- Internal tube 2 - Halogen-quenched, uncompensated thin wall beta-gamma GM peanut tube Radiation symbol on front and top labels mark the center of the detectors.
- Windows Mobile™ Pocket PCs, Palm™ Pilots or Windows™ based laptop or desktop computer.
|
|
||||||||||||||||||||||||||||
|
Sample Counting: Total counts - >99,999,999,999 |
|||||||||||||||||||||||||||||
Accumulated Dose
1.8E308
Total Time
Unlimited
Accuracy
±15% over the entire operating range
Alert Set Range
mR/hr .001 - 50 and CPM 1 - 160,000
Gamma Sensitivity
7.5 CPS/mR/hr referenced to Co60. Smallest detectable level for I-125 is .02 µCi at contact.
Timer
Total Count timer from 1 -99,999,999,999 seconds.
Count Light
Red LED and internal beeper (can be switched off for silent operation)
Outputs
Bluetooth Wireless Serial Connection.
Anti-Saturation:
Meter will hold at full scale in fields as high as 100 times the maximum reading.
Power Requirements: Two (2) AA Batteries
Temperature Range: -10°C to 50°C (14°F to 122°F).
Weight: 337.4 grams (11.9 oz.) with battery.
Size: 332.7 x 63.5 x 35.6 mm (13.1 x 2.5 x 1.4in.).
Warranty: 90 day Warranty on GM Detector, 1 year limited
Carrying case included with this model.
| Optional Accessories | |
 Wipe Test Plate |
 TDS Recon |
|

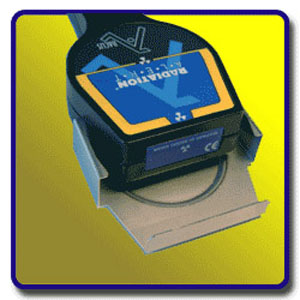

The stainless steel WipeTest Plate slides easily onto the Abacus positioning the depression and wipe directly in front of the GM tube window at a fixed distance of 1 centimeter. The WipeTest plate is removable for general surveying or decontamination. It can also be used for protecting the GM from damage and the instrument from being contaminated while the Abacus is not in use. (patent #5,936,246) |
|
