Photometric Measurement Test Patterns
Modulation Transfer Function (MTF)
MTF Edge Test Devices
Choose Pro-RF MTF or the compact Pro-RF MTF MINI for detector modulation transfer function measurements. Select a device below for specifications and ordering information.
Photometric Line-Pair Test Patterns
For photometric measurement, with its possibility of determining the modulation transfer function (MTF) of an image transmission system, tests have been developed without intermediate spaces between the
individual line pairs or line groups, in order to avoid measuring errors due to neighbouring effects. In order to maintain the same measurement certainty over the total spatial frequency range, after reaching
the highest spatial frequency, the values drop again to the same degree (see tabulated test description).
We have highlighted the most popular models in yellow

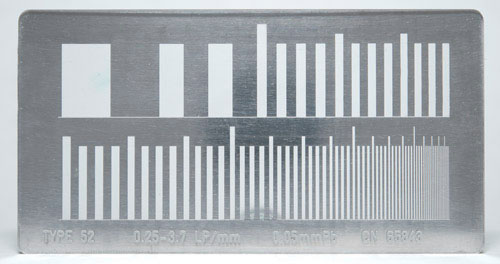

Type 52
|
Overall Dimension:
|
95 x 50 mm
|
|
Resolution:
|
0.25 LP/mm - 3.7 LP/mm
|
|
Resolution Steps:
|
0.05 + 0.1 + 0.25...3.4 + 3.7
|
|
Number of Groups:
|
19
|
|
Models and Ordering
|
|
Part Number
|
Lead Thickness (mm)
|
|
52-001
|
0.01
|
|
52-002
|
0.02
|
|
52-0025
|
0.025
|
|
52-003
|
0.03
|
|
52-005
|
0.05
|
|
52-008
|
0.08
|
|
52-010
|
0.1
|
|

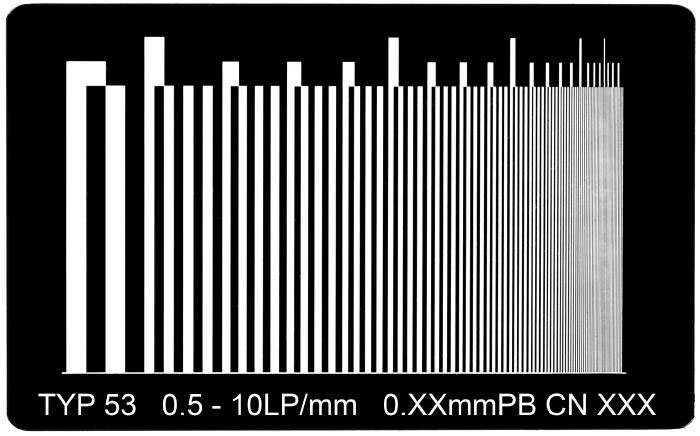

Type 53
|
Overall Dimension:
|
71 x 44 mm
|
|
Resolution:
|
0.5 LP/mm - 10 LP/mm
|
|
Resolution Steps:
|
0.25 + 0.5...10.0...6.0
|
|
Number of Groups:
|
23
|
|
Models and Ordering
|
|
Part Number
|
Lead Thickness (mm)
|
|
53-001
|
0.01
|
|
53-002
|
0.02
|
|
53-0025
|
0.025
|
|
53-003
|
0.03
|
53-005
(Formerly 07-553)
|
0.05
|
|

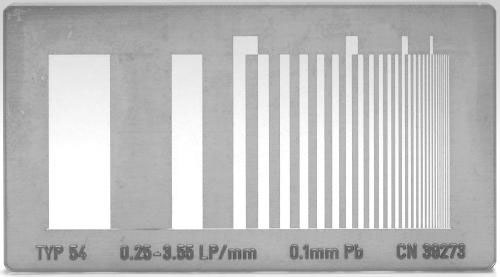

Type 54
|
Overall Dimension:
|
80 x 84 mm
|
|
Resolution:
|
0.25 LP/mm - 3.55 LP/mm
|
|
Resolution Steps:
|
0.05 + 0.1 + 0.25...3.55...2.8
|
|
Number of Groups:
|
28
|
|
Models and Ordering
|
|
Part Number
|
Lead Thickness (mm)
|
|
54-001
|
0.01
|
|
54-002
|
0.02
|
|
54-0025
|
0.025
|
|
54-003
|
0.03
|
|
54-005
|
0.05
|
|
54-008
|
0.08
|
|
54-010
|
0.1
|
|

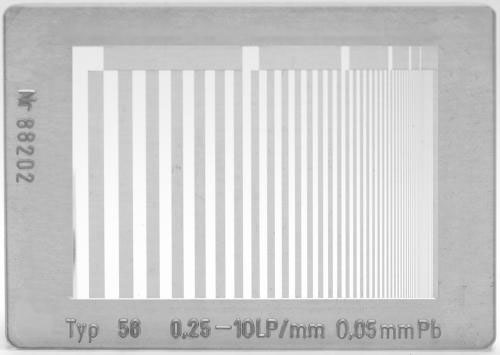

Type 56
|
Overall Dimension:
|
62 x 44 mm
|
|
Resolution:
|
0.25 LP/mm - 10 LP/mm
|
|
Resolution Steps:
|
0.25 / 0.275 / 0.30 / 0.33 / 0.36 / 0.40 / 0.44 / 0.48 / 0.52 / 0.57 / 0.63 / 0.69 / 0.76 / 0.83 / 0.91 / 1.0 / 1.1 / 1.2 / 1.3 / 1.45 / 1.6 / 1.75 / 1.9 / 2.1 / 2.3 / 2.5 / 2.75 / 3.0 / 3.3 / 3.6 /
4.0 / 4.4 / 4.8 / 5.2 / 5.7 / 6.3 / 6.9 / 7.6 / 8.3 / 9.1 / 10.0 / 9.1 / 8.3 / 7.6 / 6.9 / 6.3 / 5.7 / 5.2
|
|
Number of Groups:
|
48
|
|
Models and Ordering
|
|
Part Number
|
Lead Thickness (mm)
|
|
56-001
|
0.01
|
|
56-002
|
0.02
|
|
56-0025
|
0.025
|
|
56-003
|
0.03
|
|
56-005
|
0.05
|
|
