QUART DVTap
DIN 6868-161 CBCT Image Quality Test Phantom

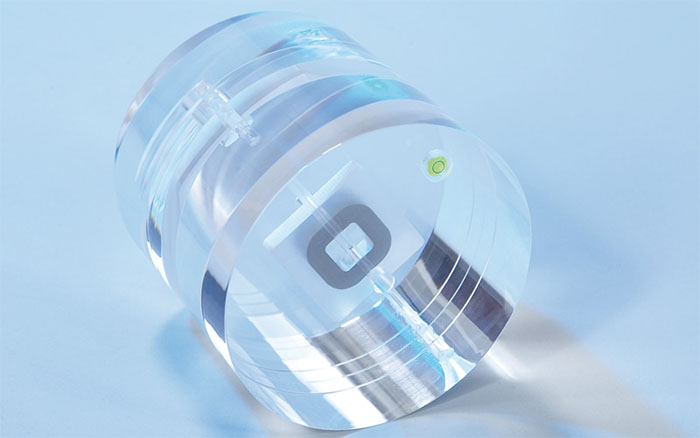

The QUART DVTap phantom is designed to be used as a universal tool for 3D imaging equipment including CT applications. The phantom fully complies with DIN 6868-161 for acceptance tests in CBCT applications.

In conjunction with a specially developed software (QUART DVTtec), quick and comprehensive CT IQ tests can be performed.

Only one exposure required to create 3D data set containing all required parameters to evaluate image quality. Automated evaluation through unique QUART QA/QC software.Phantom can be applied for field sizes from 4x4cm to large fields-of-view (FOV). A universal holder or customised phantom holders available for easy and reproducible positioning.

Technical Specifications

SPATIAL RESOLUTION: Line spread function
RESOLUTION: Z-Resolution

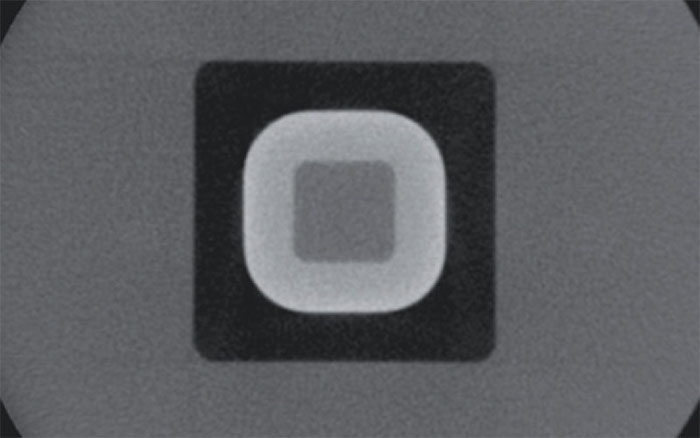

STANDARD TEST OBJECTS: PMMA / Air / PVC
MATERIAL EQUIVALENTS: Free Air / Soft tissue / Bone
POSTIONING TOOLS: Linear (top side) / Selective markers
SIZE: Ø 16 cm, height: 15 cm
SCATTER RADIATION MODULES: 1x 6 cm / 1x 5 cm

Parameters

Nyquist Frequency (NF)
Contrast-to-Noise Ratio (CNR)

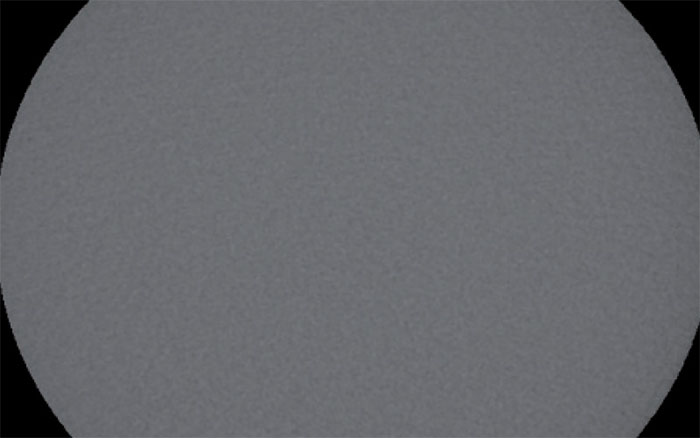

Homogeneity / Image Uniformity
Z-Resolution
Modulation Transfer Function
Artefacts, Image Flaws
Figure of Merit

References

EFOMP working group, Quality control in cone-beam computed tomography (CBCT) EFOMP-ESTRO-IAEA protocol (summary report), Physica Medica, Volume 39, July 2017, Pages 67-72.

Which software is right for you?

QUART DVTtec
For CBCT only

DIN 6868-161 compliant for DVT/CBCT acceptance tests

Software Evaluates:

Nyquist Frequency (NF)
Contrast
Noise
Contrast-to-Noise Ratio (CNR)
Homogeneity / Image Uniformity
Modulation Transfer Function (MTF) at 10 % and 50 %
Artefacts, Image Flaws
Patient/Phantom Positioning Accuracy
Geometric Accuracy
Automatic System Indicator / Acceptance Indicator (as per DIN 6868-161)

QUART CTtec
For CBCT and CT

DIN 6868-161 compliant for CBCT acceptance tests
IEC 61223-3-5 compliant for CT acceptance tests
IEC 62220-1-2 compliant for detective quantum efficiency
IEC 60601-2-44 compliant for CT equipment safety requirements
compliant with EFOMP - ESTRO - IAEA protocol for quality control of cone-beam CT equipment.

Software Evaluates:

Nyquist Frequency (NF)
Contrast
Noise
Contrast-to-Noise Ratio (CNR)
Homogeneity / Image Uniformity
Spatial Resolution / Modulation Transfer Function (MTF) at 10% & 50% modulation
Modulation Transfer Function (MTF) as per IEC 62220-1-2
CT Numbers / Hounsfield Units
Z-Axis Resolution / NF and MTF in Axial Direction
Artefacts, Image Flaws, etc.
System Indicator / Acceptance Indicator (Figure of Merit)
Patient / Phantom Positioning Accuracy
Additional QA/QC related tests such as geometry and distance measurements etc. to be conducted in an external DICOM viewer

Models and ordering
Item Number	Name	Description
12130	CBCT Professional Set	DVTap phantom + DVTtec Software CBCT test phantom for constancy and acceptance testing. Includes 2 scatter radiation parts for ambient dose measurement and patient simulation. Including hardshell case. QA Software (DVTtec) included. Applications: DVT / CBCT / 3D.
12130SW	QUART DVTtec License	Additional Software License for DVTtec
12635	CT IQ Professional Set	DVTap phantom + CTtec Software CT image quality test phantom for advanced acceptance/routine testing. Includes 2 scatter radiation parts for ambient dose measurement and patient simulation. Including hardshell case. One QA Software license (CTtec) included. Applications: CT / DVT / CBCT / 3D.
Upon Request	QUART CTtec License	Additional Software License for CTtec
12139	DVT uni stand	DVT phantom holder for quick positioning. Base plate on a tripod stand.
12154-16	DVT horizontal	DVT holder for horizontal positioning, e.g. at NewTom or CT equipment. Anti-roll support.
12155	DVT Base 6cm	PMMA base phantom support for x-ray equipment manufacturer calibration tool base
