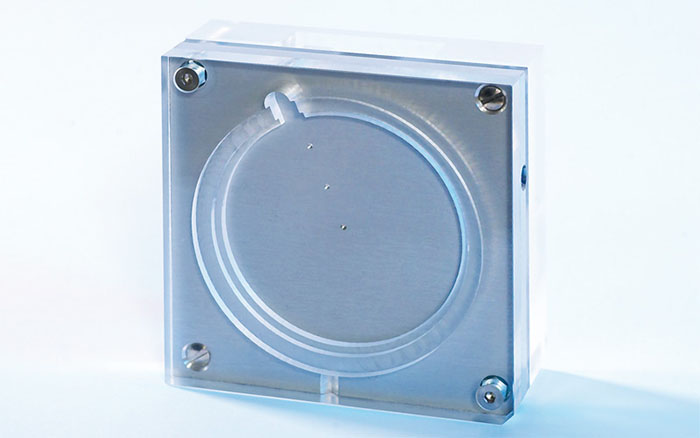

QUART dent/digitest M2/M1
Enhanced Digital Dental QA Test Phantom
The QUART dent/digitest M1 & M2 phantoms are extended versions of the digitest line of products.
The phantoms incorporate additional test objects.
For more detailed image examination and/or critical assessment of any dental x-ray system‘s performance.
Technical Specifications- INTERNAL FILTRATION: 6.0 mm standard compliant aluminium filtration
- LOW-CONTRAST RESOLUTION: 6 objects (Ø 2.5/2/1.5/1/0.75/0.5 mm)
- CONTRAST DETAIL: Low-Contrast Wedge to determine actual perceptability limit
- Wedge is integrated in the phantom body, located between line pair resolution bar pattern and low-contrast objects
- LIMITING CONTRAST DETAILS: Limiting contrast detail visibility in the integrated wedge is a simple test (similar to IQF or Contrast Detail curve)
- HIGH-CONTRAST RESOLUTION:
- M1: 4/5/5.5/6/7/8/9 Lp/mm; 45° / 0.05 Pb) for Pano/Ceph
- M2: 10/12/14/16/18/20 Lp/mm; 45° / 0.05 Pb) for intra-oral
- SLOTS: for digital storage screen, intra-oral sensor, dose detector
- CENTER: 3 centring rings to fit variety of tube diameters
- SIZE: 80 x 80 x 3.6 mm (L x W x H)
| Models and ordering | ||
| Item Number | Name | Description |
| 12108 | dent/digitest M1 |

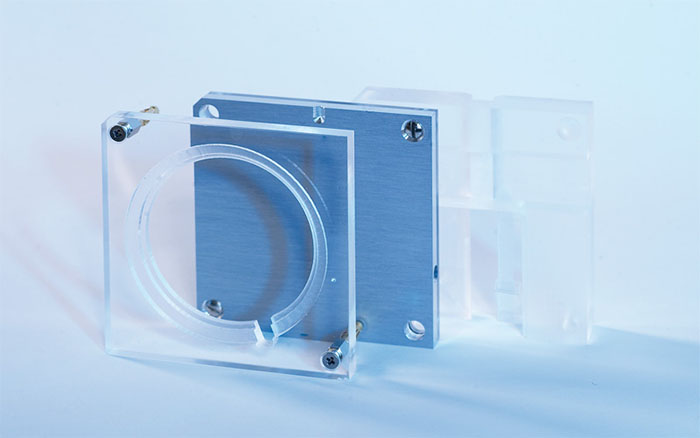

Separable test phantom with enhanced test object features for critical equipment testing. Additional low-contrast objects, perceptibility wedge, line pair
pattern resolution 4/5/5.5/6/7/8/9 Lp/mm.
Applications: Digital Pano / Ceph. |
| 12109 | dent/digitest M2 |
Separable test phantom with enhanced test object features for critical equipment testing. Additional low-contrast objects, perceptibility wedge, line pair
pattern resolution 10/12/14/16/ 18/20 Lp/mm.
Applications: Digital intra-oral. |
