QUART AEC RAD Sets - 13230 / 13230L
PMMA Slabs for Automatic Exposure Control Testing

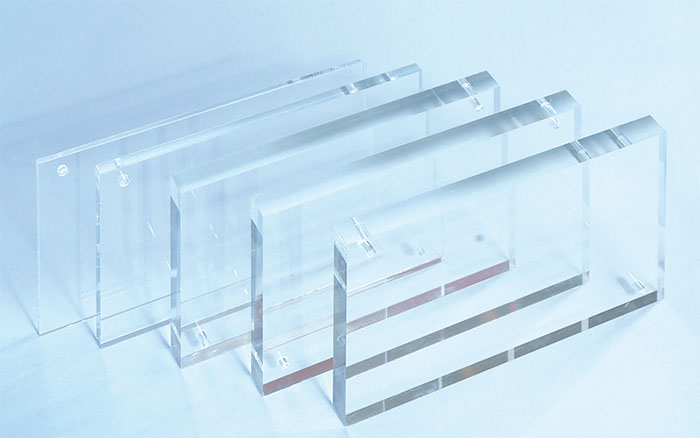

QUART AEC RAD sets provide acrylic (PMMA) slabs for checking automatic exposure control performance in radiography equipment.
Choose the standard or large sheet format to suit your testing setup. Each set includes 12 sheets in the thicknesses shown below, allowing different attenuation thicknesses to be assembled for AEC measurements.
The sets are used for automatic exposure control tests according to IEC 61223-3-1.
Models & Technical Specifications
| Part Number / Size | Sheet Dimensions | Included Sheet Thicknesses | Sheets per Set |
|---|---|---|---|
| 13230 Standard | 240 x 240 mm | 9 x 20 mm / 1 x 10 mm / 2 x 5 mm | 12 |
| 13230L Large | 300 x 300 mm | 9 x 20 mm / 1 x 10 mm / 2 x 5 mm | 12 |
Both sizes contain the same thickness assortment, with a combined stack thickness of 200 mm. Additional sheets are available on request.
For ordering information, request a quote from Supertech or call (800) 654-1054. Please specify 13230 or 13230L.
