Pro-RF Ruler
Radiopaque QA Rulers - Diagnomatic by Pro-Project - 02-601, 02-602, 02-603, 02-604, 02-605
Pro-RF Ruler from Diagnomatic by Pro-Project provides visible measurement references for X-ray images and light-field checks in PMMA, aluminum and cross configurations.
Click a photo or illustration to enlarge it.
Models and Ordering
| Part number | Model / configuration |
|---|---|
| 02-601 | PMMA ruler with the radiopaque scale - 50 cm / 2 mm scale |
| 02-602 | PMMA ruler with the radiopaque scale - 50 cm / 1 mm scale |
| 02-603 | aluminium ruler with the radiopaque scale - 50 cm / 2 mm scale |
| 02-604 | aluminium ruler with the radiopaque scale - 50 cm / 1 mm scale |

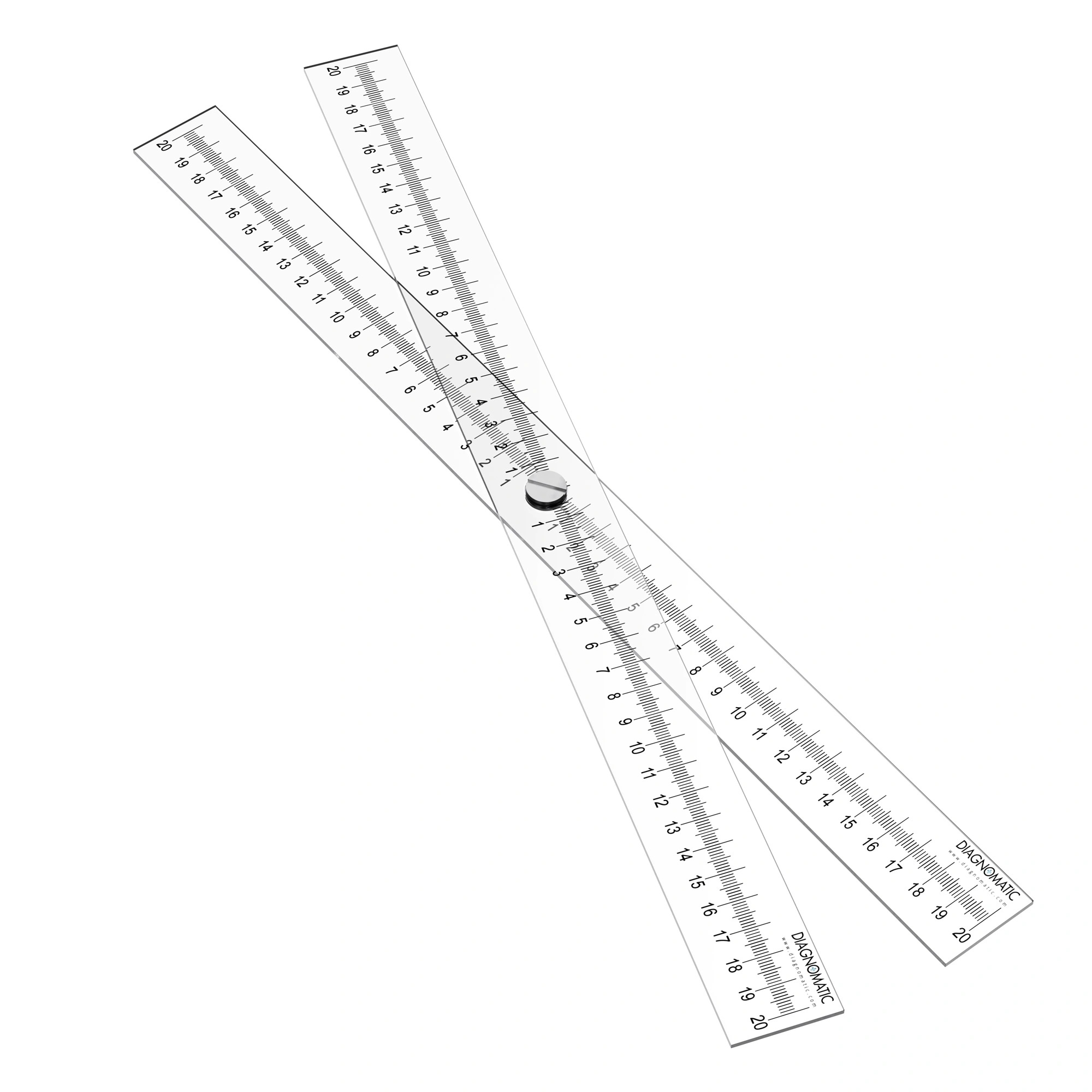

| 02-605 | two PMMA rulers with the radiopaque scale joined in the middle (cross)- 40 cm each / 1 mm scale |
Specifications
Additional ruler sizes and graduations can be requested through Supertech.
Features and Test References
- complies with:
– IEC 61223-3-1 - CE marked
- Includes a manual covering the tests, result evaluation and recording.
