Pro-RF MTF MINI
Compact MTF Edge Test Device - Diagnomatic by Pro-Project - 02-127

Pro-RF MTF MINI from Diagnomatic by Pro-Project provides a protected tungsten edge and angular alignment aid for detector modulation transfer function testing.

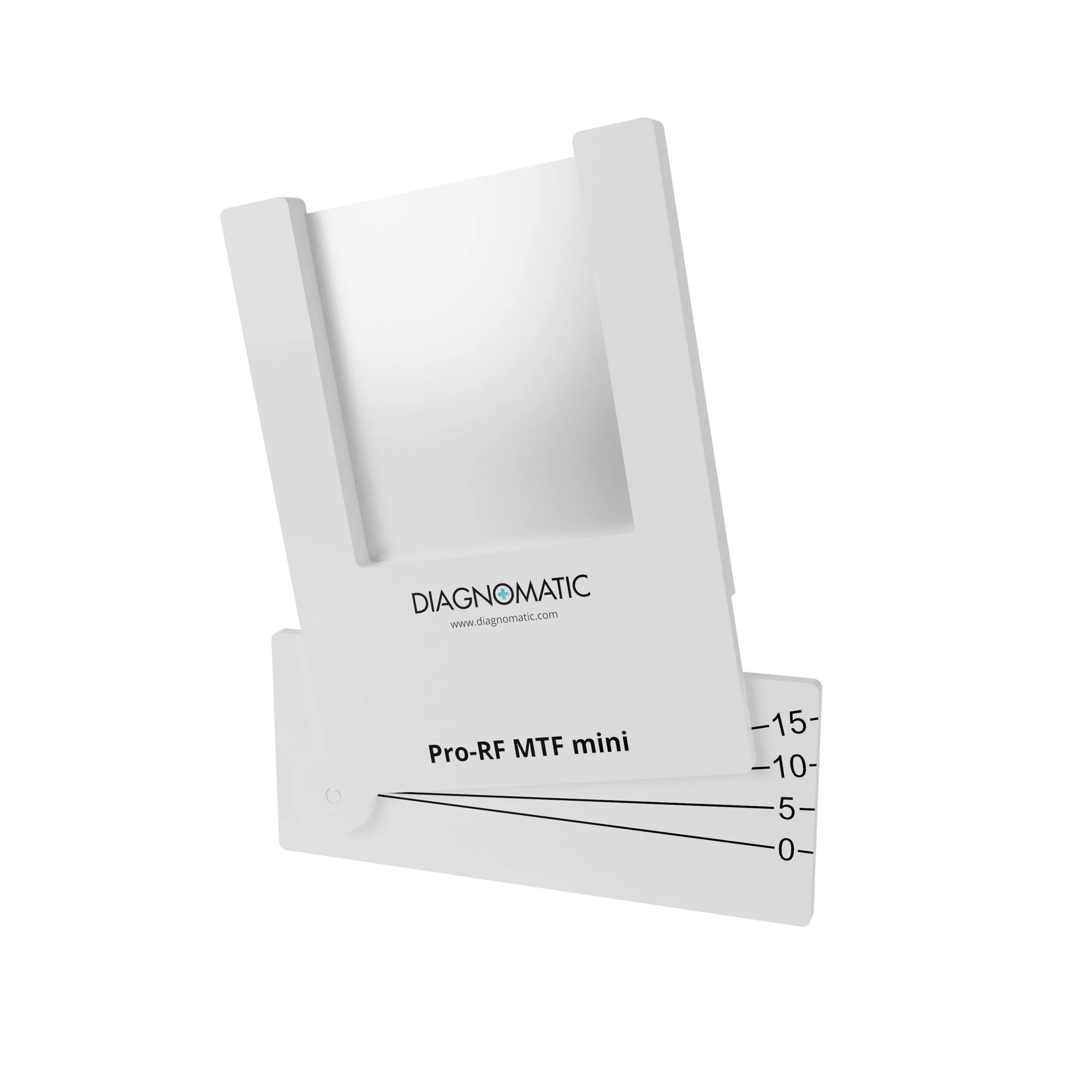

A rectangular head, made of U-shaped white plastic and a square tungsten plate, attached to a rectangular plastic base so that the angle of the head can be adjusted.
A rectangular head, made of U-shaped white plastic and a square tungsten plate, attached to a rectangular plastic base so that the angle of the head can be adjusted.

Click a photo or illustration to enlarge it.

Models and Ordering

Part numberModel / configuration
02-127Pro-RF MTF MINI

Specifications

  • overall dimensions: 97 x 96 x 9 mm
  • tungsten plate dimensions: 50 x 60 x 1 mm
  • tungsten plate made from high purity tungsten (> 90%)
  • tungsten edge roughness less than 5 µm
  • PVC and PMMA cover
  • angular alignment aid

Features and Test References

  • complies with:
    – IEC 62220-1
    – DIN EN 62220-1
    – IEC 62220-1-1:2015
  • CE marked
  • Includes a manual covering the tests, result evaluation and recording.
