Pro-RF Basic Tool
Compact Radiography QA Phantom - Diagnomatic by Pro-Project - 02-502

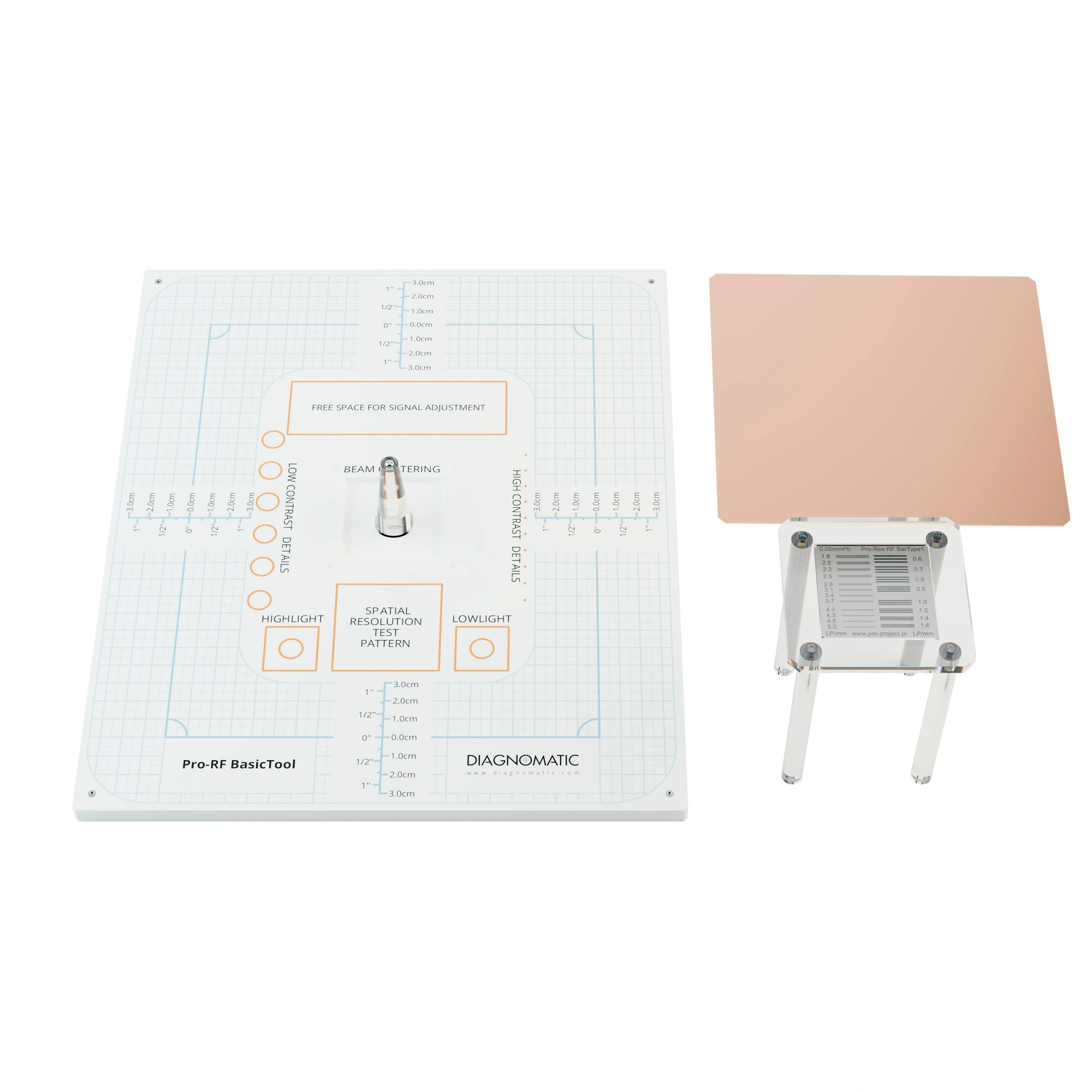

Pro-RF Basic Tool from Diagnomatic by Pro-Project brings contrast, resolution, field alignment and geometry targets together in one compact radiography test tool.
Click a photo or illustration to enlarge it.
Models and Ordering
| Part number | Model / configuration |
|---|---|
| 02-502 | Pro-RF Basic Tool |
It can be used to do the following tests
- dynamic range
- geometric distortion
- spatial resolution
- contrast resolution
- beam centring
- focal spot size
- noise/uniformity
- artefacts
- X-ray to light field congruence
Specifications
- outside dimensions: 345 x 290 mm
- high contrast array of 5 and 10 mm uniformly pitched mesh
- Highlight and Lowlight details
- 0.6 to 5.0 LP/mm resolution pattern
- 7x 11.0 mm diameter low contrast details
- 11x 0.5 mm diameter high contrast details
- extra stand for the spatial resolution pattern for focal spot size evaluation
- cone for perpendicular X-Ray beam control in the range of 0° ÷ 1.5°
- an area of uniform attenuation suitable for noise measurements
- 1 mm Cu filter
Features and Test References
- complies with:
– IEC 61223-3-1 - CE marked
- Includes a manual covering the tests, result evaluation and recording.
