Pro-NM Slits

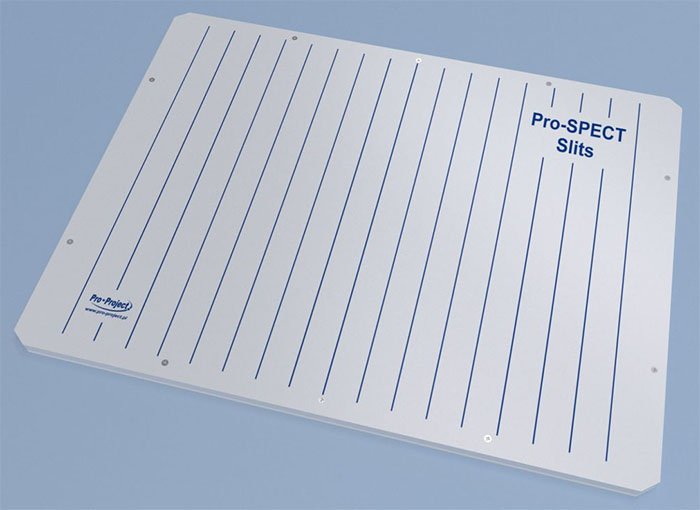

Gamma Camera Slit Phantom - Diagnomatic by Pro-Project - 08-302

Pro-NM Slits from Diagnomatic by Pro-Project supports quantitative intrinsic spatial resolution and linearity measurements of gamma cameras.

Click a photo or illustration to enlarge it.

Models and Ordering

Specifications

• dimensions: 564 x 432 x 15 mm
• lead size 539 x 405 x 3 mm
• parallel 1 mm thick slits with 30 mm spacing
• cover made of PVC
• uniform PVC part of the phantom

Features and Test References

• complies with:
  - NEMA Standards Publication (NU 1-2023) Performance Measurements of Gamma Cameras
• CE marked
• Includes a manual covering the tests, result evaluation and recording.
