Pro-NM Resolution
Four-Quadrant Bar Phantom - Diagnomatic by Pro-Project - 08-301

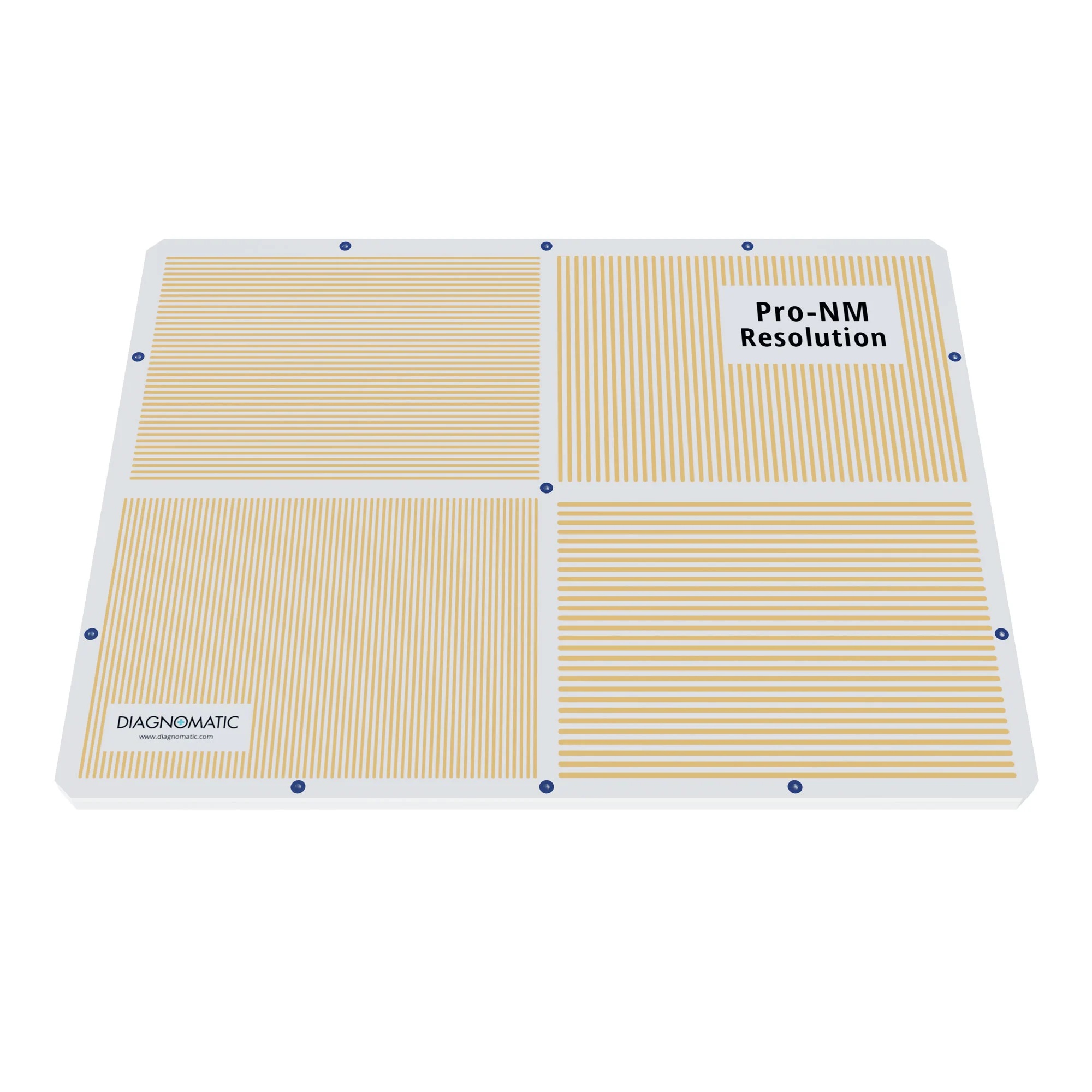

Pro-NM Resolution from Diagnomatic by Pro-Project provides four groups of bar targets for scintillation camera resolution and linearity measurements.

Click a photo or illustration to enlarge it.

Models and Ordering

Specifications

• dimensions: 564 x 432 x 15 mm
• lead bar widths: 2.0, 2.5, 3.0 and 3.5 mm
• field across bar configuration: 533 x 405 mm

Features and Test References

• complies with:
  - NEMA Standards Publication (NU 1-2001) Performance Measurements of Scintillation Cameras
  - AAPM Report No. 9 - Computer Aided Scintillation Camera Acceptance Testing
  - AAPM Report No. 22 - Rotating Scintillation Camera SPECT Acceptance Testing and Quality Control
  - ACR–SNM  (Res. 5 – 2011) technical standard for diagnostic procedures using radiopharmaceuticals
• CE marked
• Includes a manual covering the tests, result evaluation and recording.
