Pro-NM PETscatter
PET Scatter Phantom - Diagnomatic by Pro-Project - 08-802

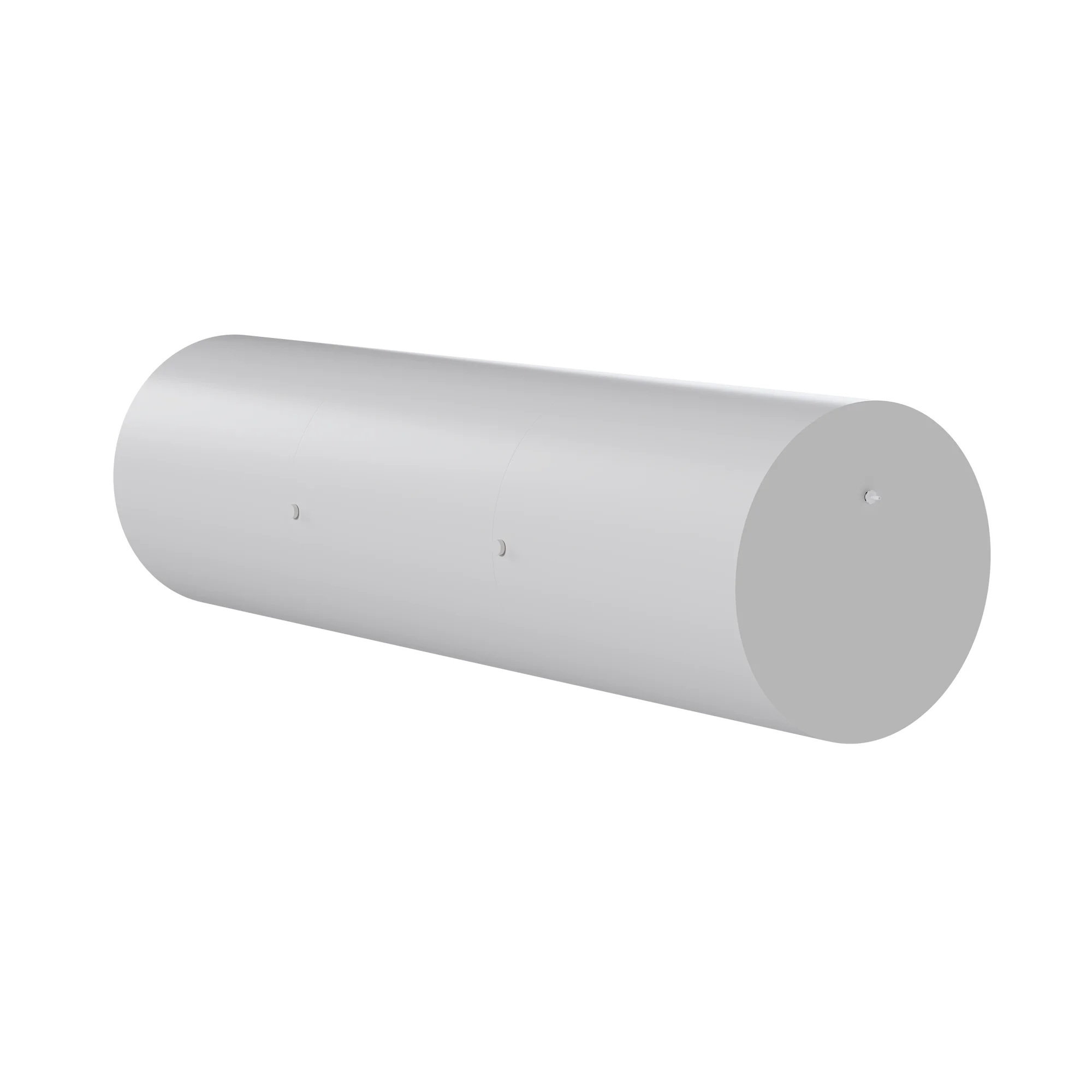

Pro-NM PETscatter from Diagnomatic by Pro-Project uses a segmented polyethylene cylinder and offset line source for PET scatter and count-rate testing.

The cylinder separates into three sections for handling and assembly. The line-source hole runs parallel to the cylinder axis with a 45 mm radial offset.

Click a photo or illustration to enlarge it.

Models and Ordering

Specifications

Cylinder

• outside diameter: 203 mm
• length: 700 mm
• hole diameter: 6.4 mm
• hole offset from the central axis: 45 mm

Line source

• outside diameter: 4.8 mm
• length: 800 mm
• inside diameter: 3.2 mm

Accessories

• carrying case

Features and Test References

• complies with:
  - Performance Measurements (NU 2-2024) of Positron Emission Tomographs
• CE marked
• Includes a manual covering the tests, result evaluation and recording.
