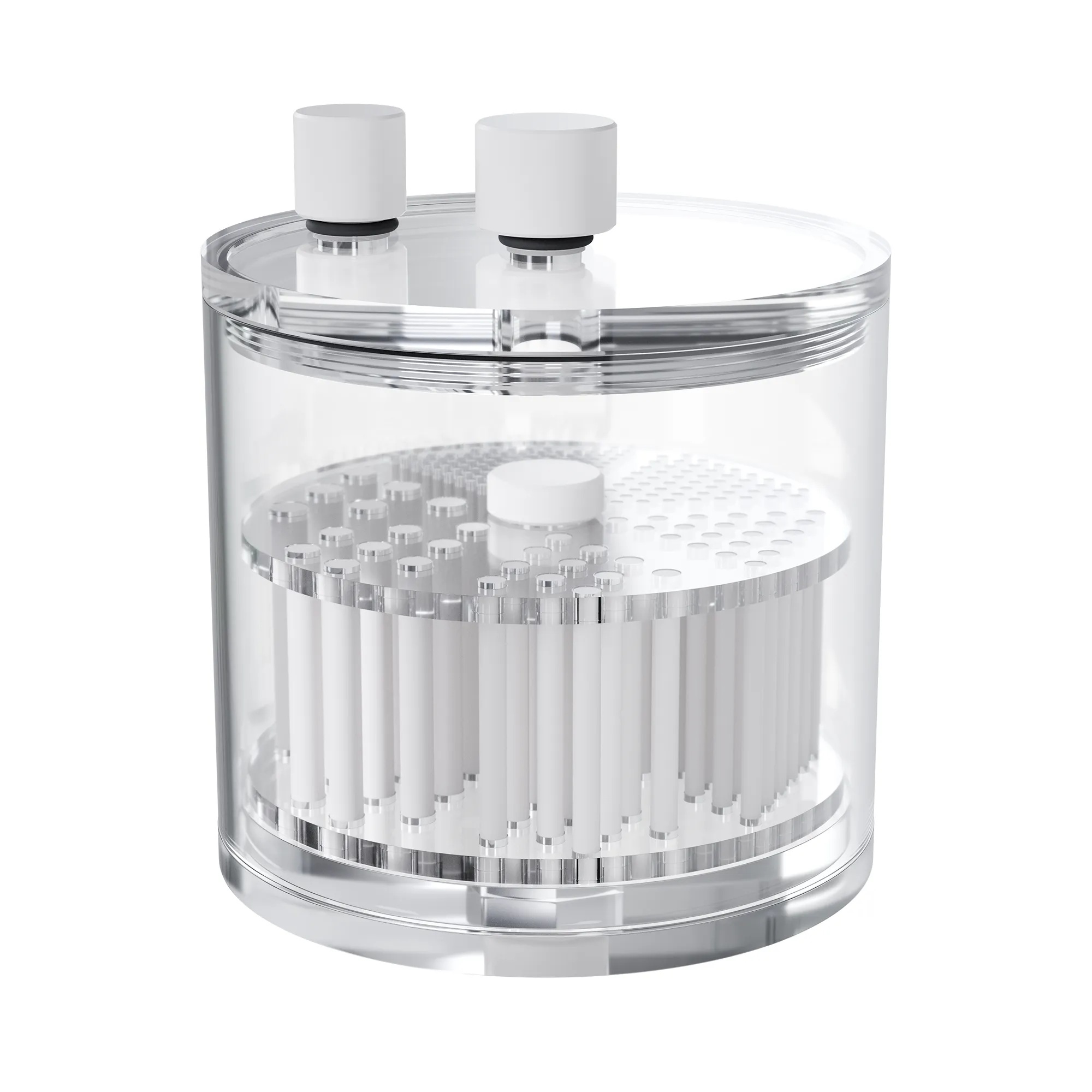

Pro-NM Performance MINI - Pro-Project - 08-108

Phantom for performance evaluation of small animal systems or ultra-high resolution ECT systems.

It can be used to evaluate: center-of-rotation error, non-uniformity artifacts and spatial resolution. Available in two sizes for FOV at least 45mm or 75mm.

Technical data (can be modified to customer specifications):

At least 75mm FOV version:
- main cylinder:
  - outside cylinder diameter: 80 mm
  - inside cylinder diameter: 74 mm
  - inside cylinder height: 65 mm
  - cold rods insert:
  - rod diameters: 1.2, 1.6, 2.4, 3.2, 4.0 and 4.8 mm
  - height of rods: 34 mm
At least 45mm FOV version
- main cylinder:
  - outside cylinder diameter: 50 mm
  - inside cylinder diameter: 45 mm
  - inside cylinder height: 65 mm
  - cold rods insert:
  - rod diameters: 1.2, 1.6, 2.4, 3.2, 4.0 and 4.8 mm
  - height of rods: 34 mm
Optional carrying case

Product features:

Complies with:
- NEMA Standards Publication (NU 1-2001) Performance Measurements of Scintillation Cameras
- AAPM Report No. 9 - Computer Aided Scintillation Camera Acceptance Testing
- AAPM Report No. 22 - Rotating Scintillation Camera SPECT Acceptance Testing and Quality Control
- ACR–SNM (Res. 5 – 2011) technical standard for diagnostic procedures using radiopharmaceuticals
CE certified
The manual provides detailed guidelines for carrying out each test, results assessment and registration

Item Number	Description
08-108	Pro-NM Performance MINI
