Pro-NM NEMA NU2
PET Image Quality Phantom - Diagnomatic by Pro-Project - 08-105

Pro-NM NEMA NU2 from Diagnomatic by Pro-Project provides a whole-body test geometry with fillable spheres for PET image quality and reconstruction assessment.

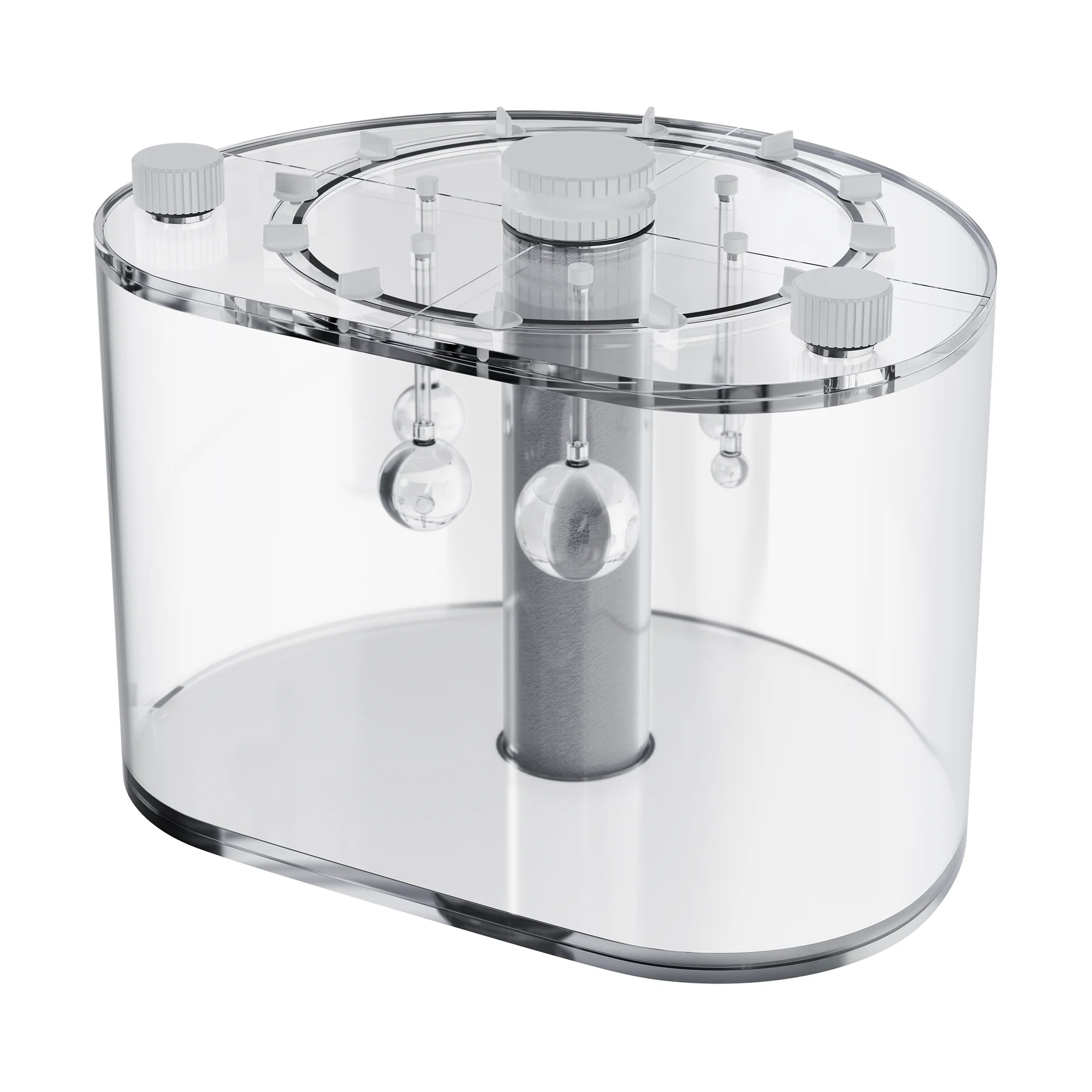

Semi-oval transparent PMMA vessel with a transparent tube in the middle filled with white grain, and 6 transparent spheres with descending diameters, attached to the top lid with rods, arranged in the circle.

Click a photo or illustration to enlarge it.

Models and Ordering

Part number	Model / configuration
08-105	Pro-NM NEMA NU2

Specifications

interior length of the phantom: 180 mm
volume of empty cylinder: 9.7 liters

6 fillable spheres

inner diameter: 10 mm, 13 mm, 17 mm, 22 mm, 28 mm, and 37 mm
distance from sphere plane to inside wall: 70 mm

Cylindrical insert dimensions

outside diameter: 51 mm
length: 180 mm

Accessories

optional heavy duty carrying case (08-105-CS)

Features and Test References

complies with:
- International Standard: Radionuclide imaging devices – Characteristics and test conditions – Part 1: Positron emission tomographs, International Electrotechnical Commission (IEC), 61675-1, Geneva, Switzerland, 1998.
- Performance Measurements of Scintillation Cameras, NEMA Standards Publication No. NU2, National Electrical Manufacturers Association (NEMA), Washington, D.C., 2001.
- Performance Measurements (NU 2-2024) of Positron Emission Tomographs
CE marked
Includes a manual covering the tests, result evaluation and recording.

Request product information or a quote
Contact Supertech at (800) 654-1054 or send a quote request.
