Pro-NM FloodROUND
Round Flood Phantoms - Diagnomatic by Pro-Project - 08-403, 08-404

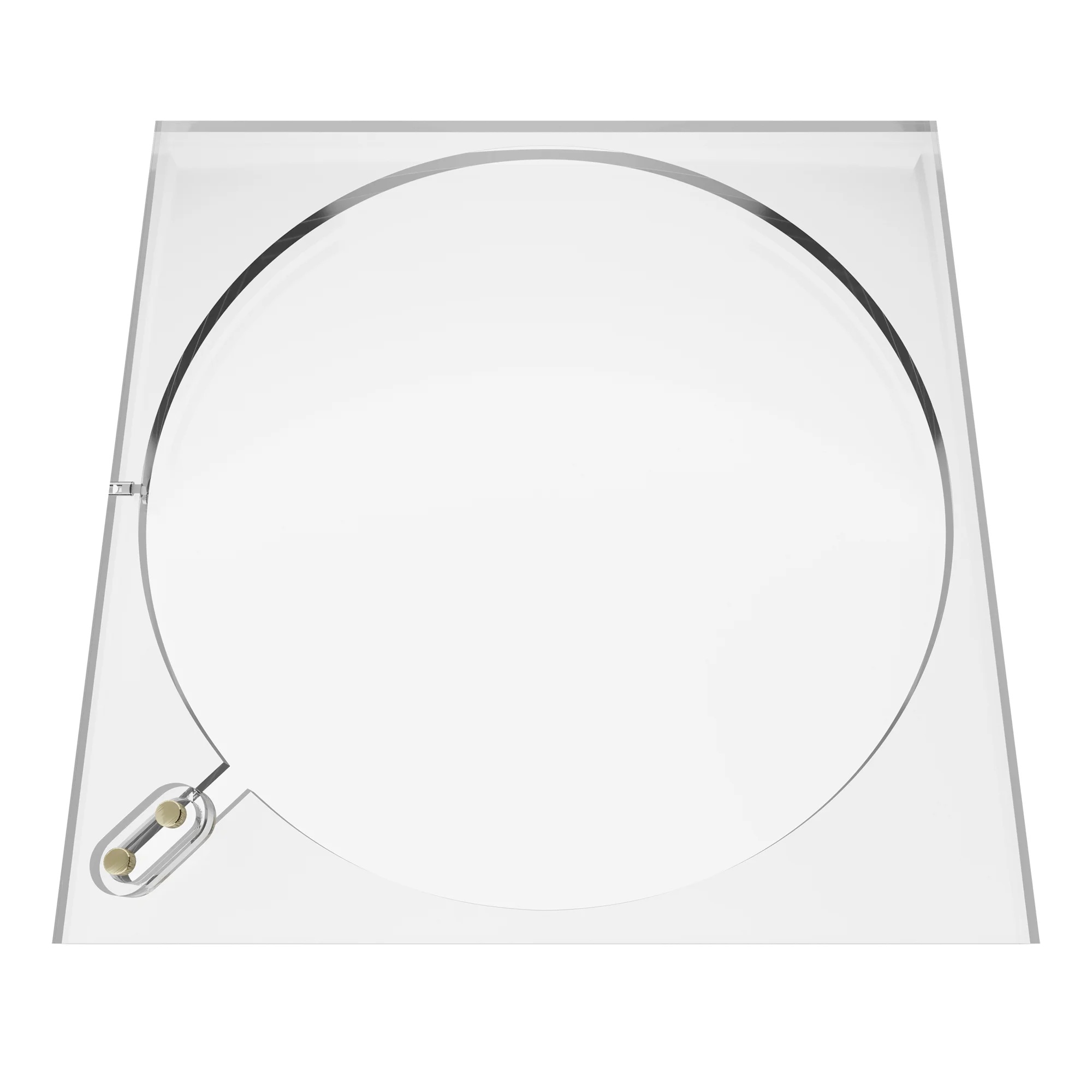

Pro-NM FloodROUND from Diagnomatic by Pro-Project provides standard and XL circular flood chambers for gamma camera uniformity checks.
Click a photo or illustration to enlarge it.
Models and Ordering
| Part number | Model / configuration |
|---|---|
| 08-403 | Pro-NM FloodROUND |
| 08-404 | Pro-NM FloodROUND XL |
Specifications
Pro-NM FloodROUND
- outside dimensions: 460 x 460 x 23 mm
- cavity dimensions: Ø430 x 13 mm
Pro-NM FloodROUND XL
- outside dimensions: 580 x 580 x 23 mm
- cavity dimensions: Ø560 x 13 mm
Product features:
- complies with:
- NEMA Standards Publication (NU 1-2001) Performance Measurements of Scintillation Cameras
- AAPM Report No. 9 - Computer Aided Scintillation Camera Acceptance Testing
- AAPM Report No. 22 - Rotating Scintillation Camera SPECT Acceptance Testing and Quality Control
- ACR–SNM (Res. 5 – 2011) technical standard for diagnostic procedures using radiopharmaceuticals - CE marked
- Includes a manual covering the tests, result evaluation and recording.
