Pro-NM FloodRECT & FloodRECT XL
Rectangular Flood Phantoms - Diagnomatic by Pro-Project
Pro-NM FloodRECT and FloodRECT XL are fillable phantoms for checking gamma camera response uniformity across the detector crystal. Two sizes are available: model 08-401 and the larger model 08-402.

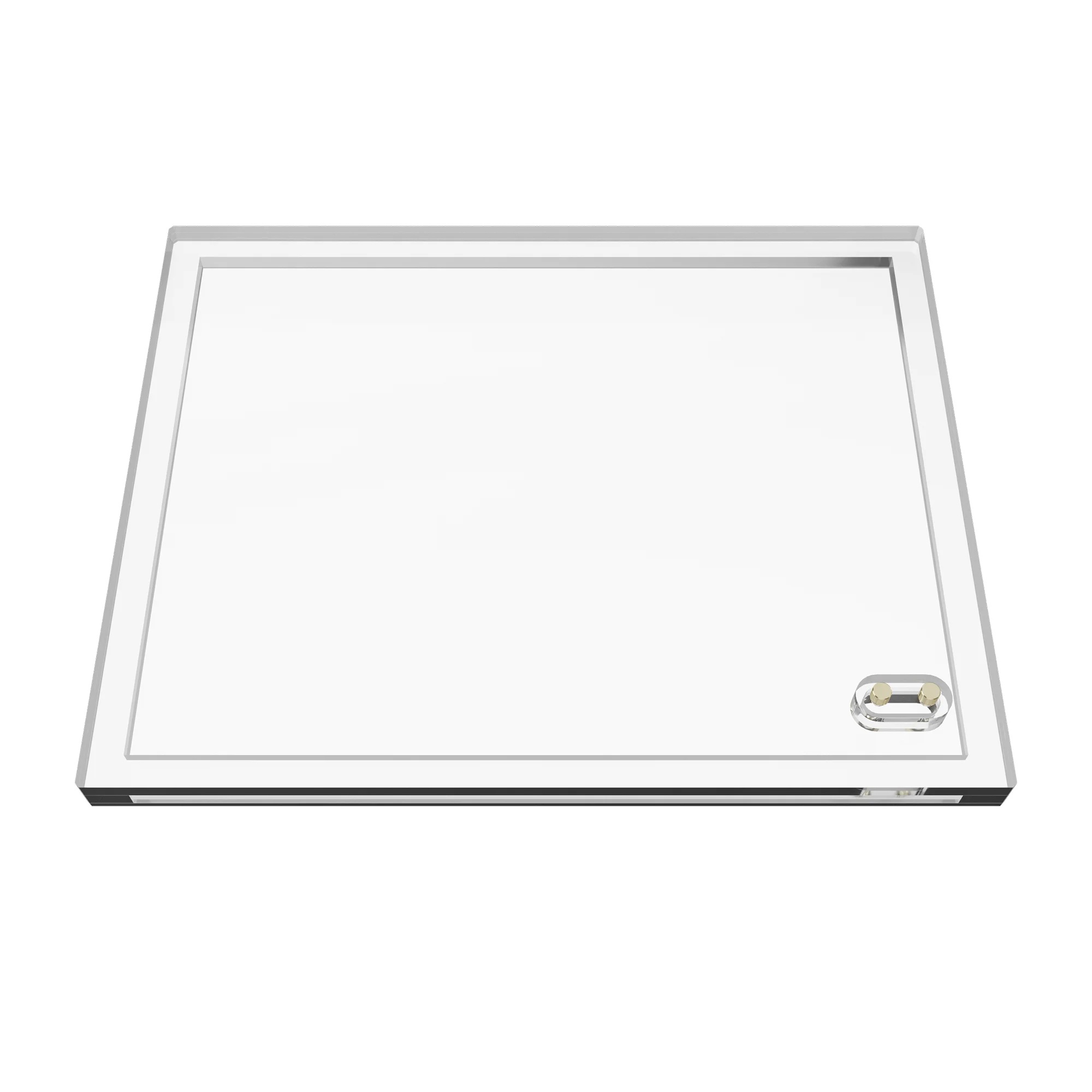

Pro-NM FloodRECT
Click the photo to enlarge it.
Compare the Two Models
| Specification | Pro-NM FloodRECT | Pro-NM FloodRECT XL |
|---|---|---|
| Item number | 08-401 | 08-402 |
| Outside dimensions | 460 × 580 × 23 mm | 710 × 570 × 33 mm |
| Cavity dimensions | 410 × 530 × 13 mm | 660 × 520 × 13 mm |
Designed for Horizontal Filling
Both models are designed to be filled while lying horizontally. This reduces the water-pressure bulging associated with vertical filling and helps distribute activity more evenly within the cavity.
Features and Documentation
- CE marked.
- Specifications can be adapted to customer requirements.
- The supplied manual covers testing, evaluation and recording of results.
Manufacturer-listed compliance references include NEMA NU 1-2001, AAPM Reports 9 and 22, and ACR-SNM Res. 5 (2011). See the product card for details.
Download the Pro-NM FloodRECT and FloodRECT XL product card (PDF)
