Pro-NM Distortion
Gamma Camera Geometry Phantom - Diagnomatic by Pro-Project - 08-304

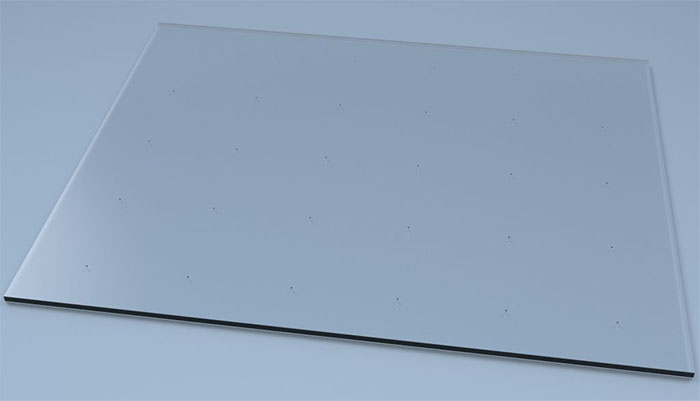

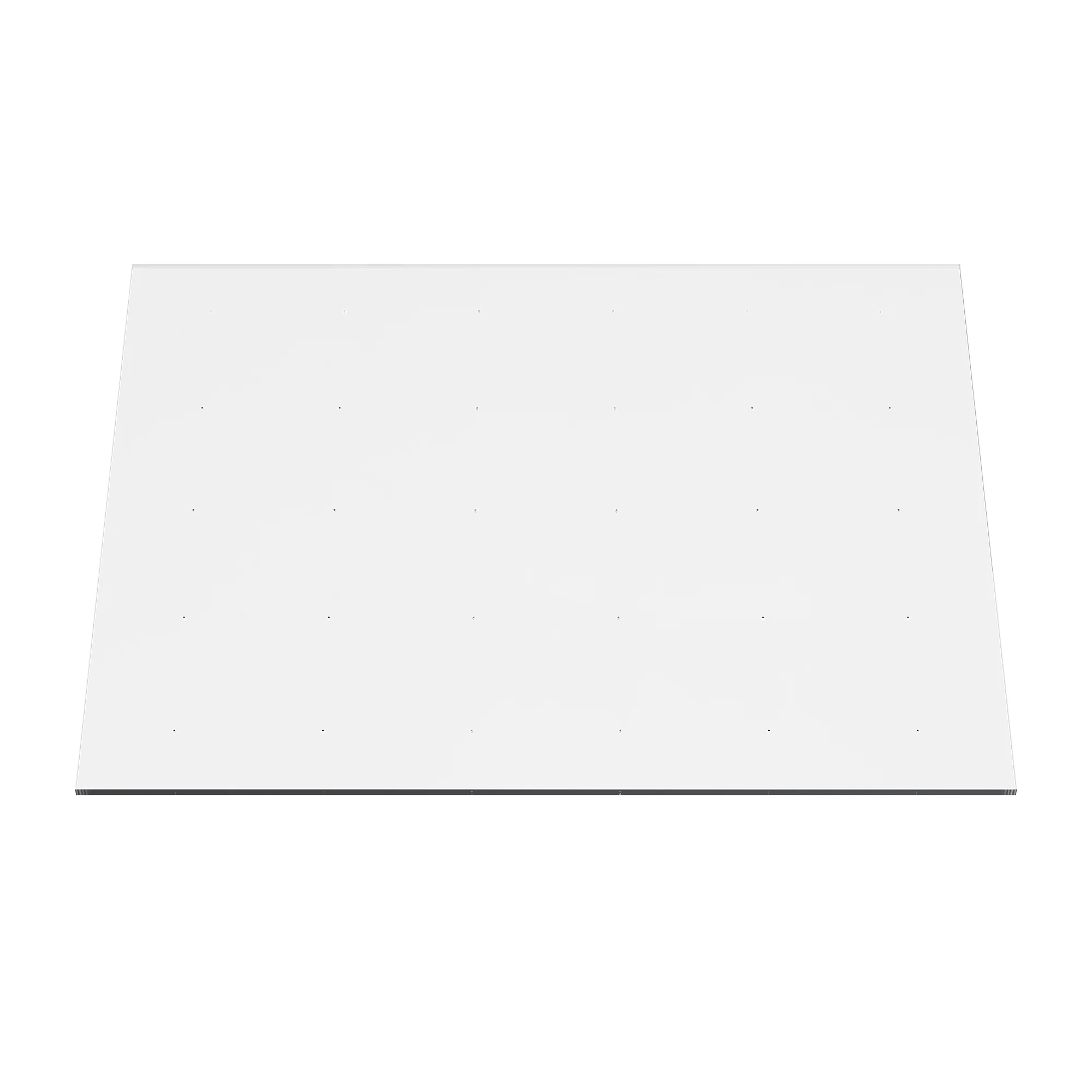

Pro-NM Distortion from Diagnomatic by Pro-Project uses a fillable hole array for gamma camera geometry and spatial resolution measurements across the field of view.

Click a photo or illustration to enlarge it.

Models and Ordering

Specifications

• dimensions 500 x 400 x 5 mm
• series of holes of 1 mm in diameter and 3 mm deep, at 80 mm pitch, to be filled with activity

Features and Test References

• complies with:
  - NEMA Standards Publication (NU 1-2001) Performance Measurements of Scintillation Cameras
  - NEMA Standards Publication (NU 1-2012) Performance Measurements of Scintillation Cameras
• CE marked
• Includes a manual covering the tests, result evaluation and recording.
