Pro-Dent CT 161
Dental CBCT Test Phantom - Diagnomatic by Pro-Project - 01-401

Pro-Dent CT 161 from Diagnomatic by Pro-Project supports acceptance and constancy checks of dental CBCT, DVT and other 3D imaging systems.

Click a photo or illustration to enlarge it.

Models and Ordering

Specifications

• diameter: 160 mm

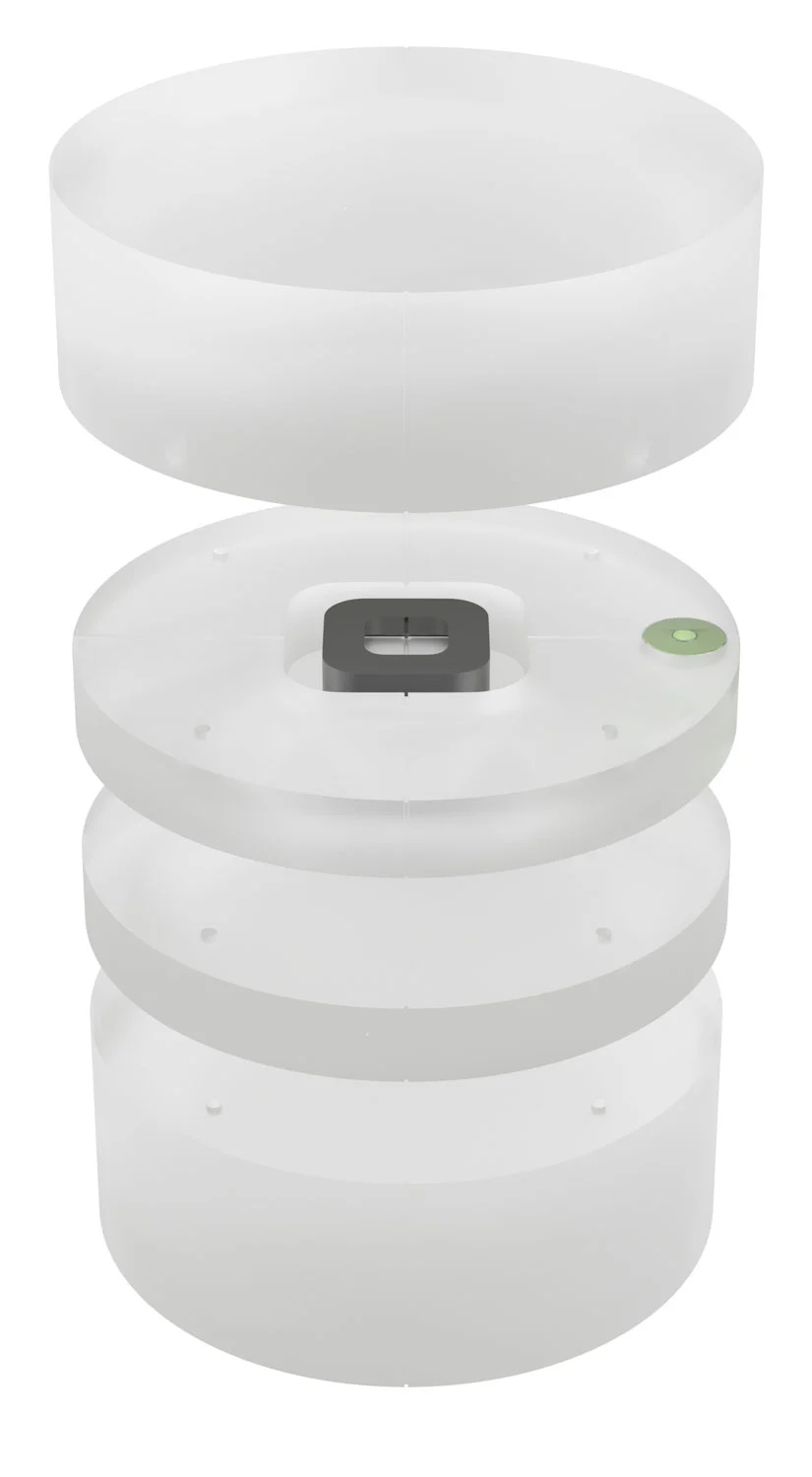

• 20 mm thick main module containing:
  – test object containing equivalents of air, soft tissue and bone
  – positioning markers
  – bubble level
• 20 mm, 50 mm and 60 mm thick PMMA modules with positioning aids
• test stand with a table for placing the phantom in the test position
• portable case for storing and transporting the phantom

Features and Test References

• complies with:
  – Radiation Protection no 172 report by the SEDENTEXCT
  – IEC 61223-3-4 and IEC 61223-3-5
• CE marked
• Includes a manual covering the tests, result evaluation and recording.

Additional Product Illustrations
