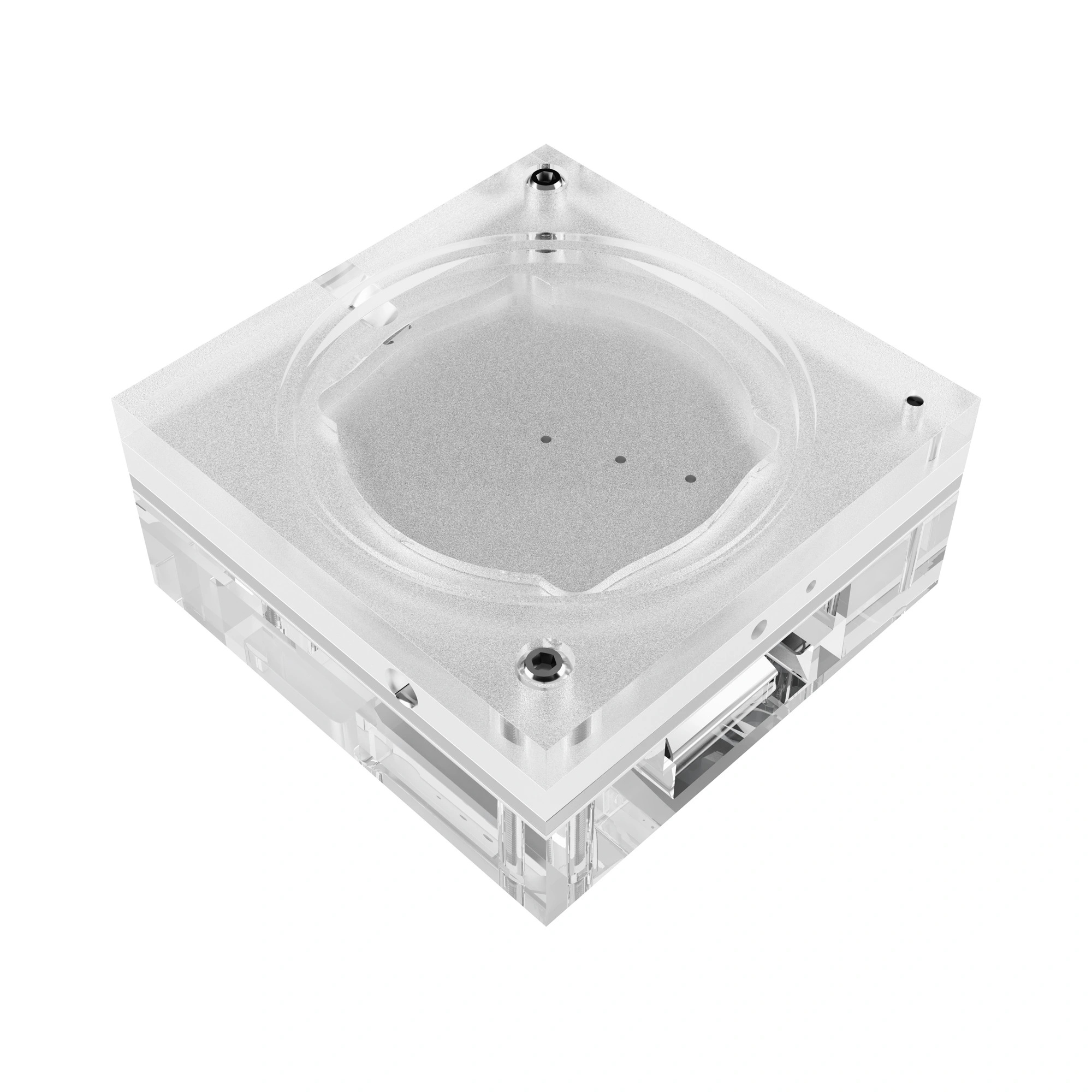

Pro-Dent DIN 2D
Dental X-Ray Test Phantom - Diagnomatic by Pro-Project - 01-220

Pro-Dent DIN 2D from Diagnomatic by Pro-Project supports intraoral, panoramic and cephalometric X-ray checks with centering rings, filtration and resolution targets.

Click a photo or illustration to enlarge it.

Models and Ordering

Specifications

• Size 80 x 80 x 36 mm
• 3 centring rings with different diameters to fit standard tubes
• Slots for digital storage screen, intra-oral sensor, dose detector
• 45° Line Pair test (2.5 / 2.8 / 3.1 / 5.0 / 5.8 / 6.3 LP/mm; 0.05 Pb)
• 4 Low Contrast objects (Ø 2.5/2/1.5/1 mm)
• Integrated filtration 6 mm Al (purity 99.5 %)

Test Parameters

• spatial resolution
• low-contrast resolution
• radiation field alignment
• image homogeneity
• dose equivalency check
• artefacts, image flaws, etc.

Features and Test References

• complies with:
  – IEC 61223-2-7 and IEC 61223-3-4
  – DIN 6868-5 and DIN V 6868-151
  – ÖNORM S 5240-5 and ÖNORM S 5240-11
• CE marked
• Includes a manual covering the tests, result evaluation and recording.
