Moving Phantom for Residual Image Evaluation KS-III - PH-81 - Kyoto Kagaku
Dynamic X-ray and fluoroscopy image-lag quality control

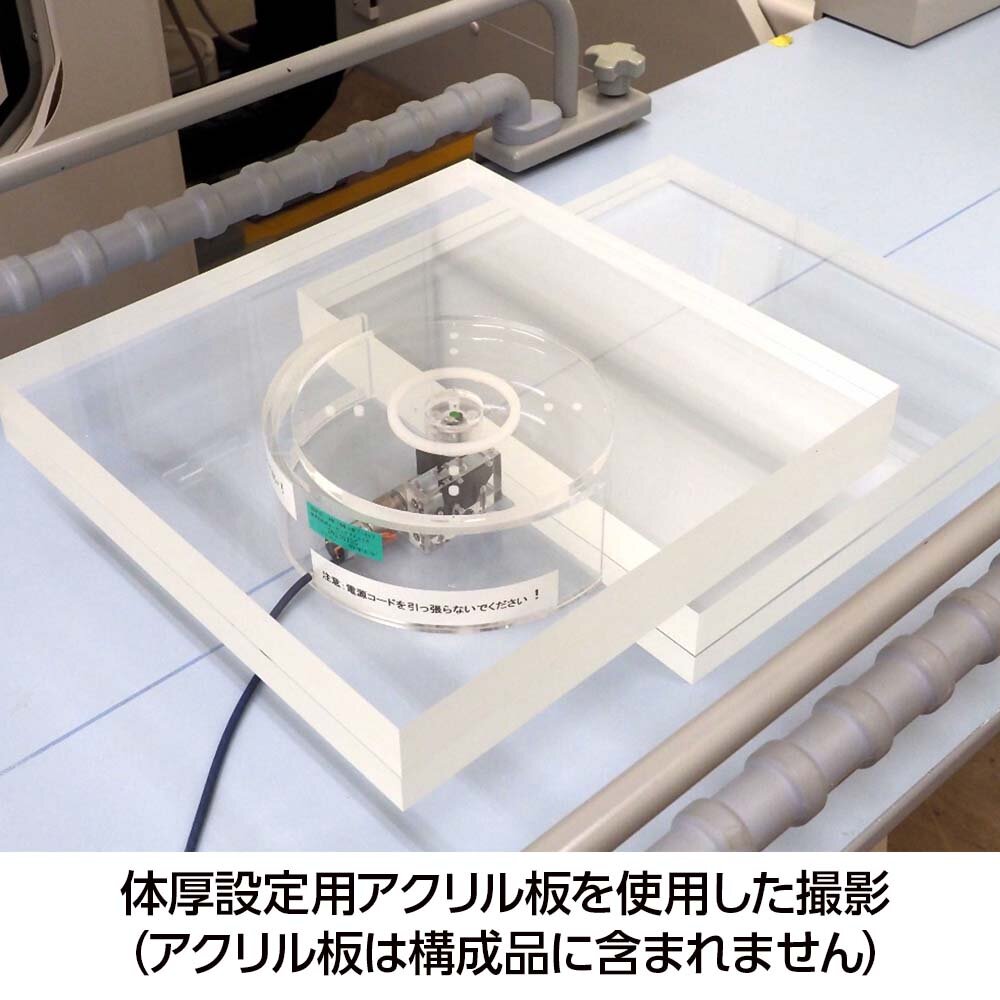

Setup example. Acrylic absorption/scatter plates shown are not included.
The PH-81 Moving Phantom for Residual Image Evaluation KS-III is a powered dynamic quality-control phantom for X-ray and fluoroscopy systems. Signals on a motor-driven rotating acrylic disc support evaluation of residual images and instantaneous image lag under moving-image conditions.
The phantom helps users determine acquisition conditions and adjust image-processing and noise-reduction parameters for moving images, including cardiovascular and interventional radiology (IVR) fluoroscopy applications.
Download the PH-81 Product Catalog (PDF)
Features- Motor-driven rotating acrylic disc for repeatable moving-target evaluation

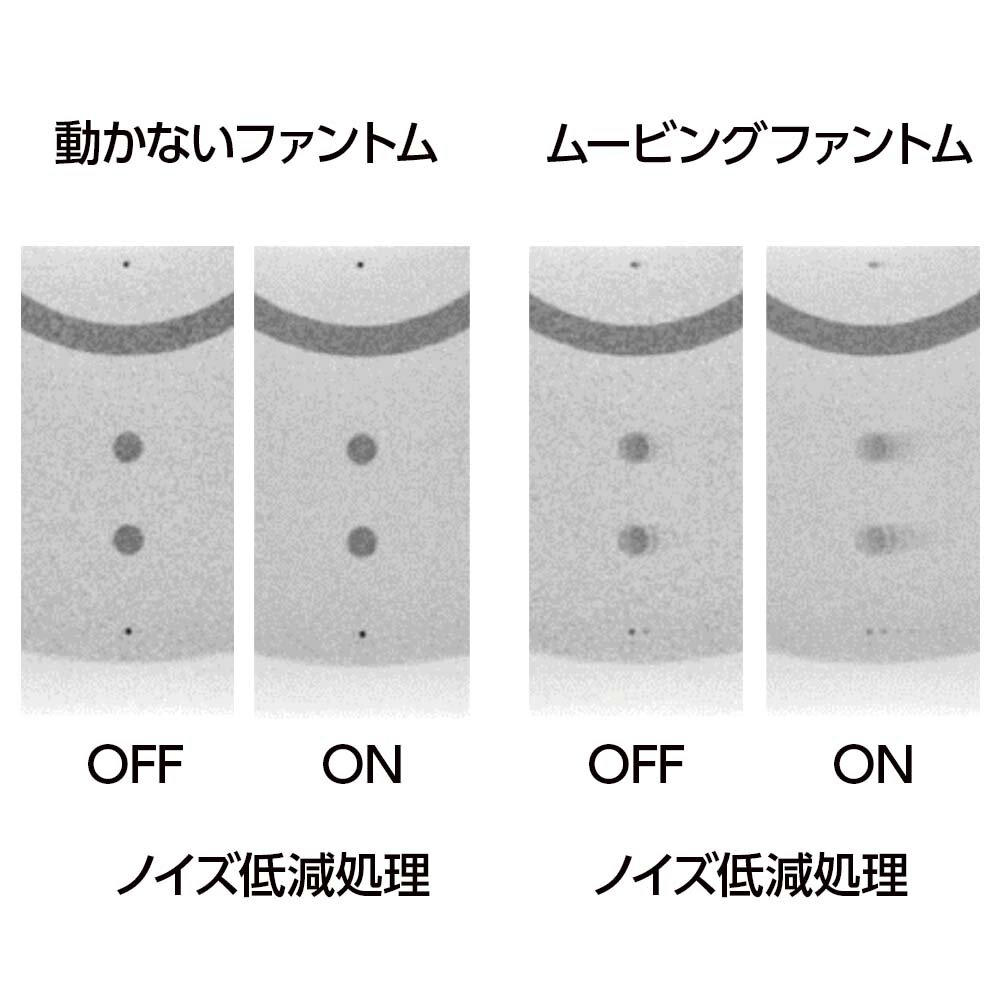

- Evaluates residual images and instantaneous image lag in dynamic images
- Supports adjustment of moving-image acquisition conditions, image processing and noise reduction
- Eight 1 mm stainless-steel balls support alignment and region-of-interest positioning
- Four 5 mm-diameter contrast targets at depths of 2.0, 3.2, 5.0 and 8.0 mm support moving-target contrast and low-contrast visual evaluation
- Supplied ImageJ-based analysis software supports analysis of residual images and lag
- Residual-image and instantaneous image-lag evaluation
- Moving-image acquisition-condition evaluation
- Image-processing and noise-reduction adjustment
- Moving-target contrast evaluation
- Low-contrast visual evaluation
- Quality control of cardiovascular and IVR fluoroscopy systems
- Rotation rate: 4 rotations per minute
- The 4 rpm setting is based on cardiac motion of approximately 20 mm/s
- Internal target speed: 20.9 mm/s
- External target speed: 27.2 mm/s
- The supplied software uses ImageJ to analyze lag particular to moving images
- 1 control/mechanism unit
- 1 disc phantom
- 1 set of cable and plug
- 1 analysis software package
- 1 carrying case
- 1 physical instruction manual
Not included: The acrylic absorption/scatter plates shown in the setup photograph and catalog are not included with PH-81.
SpecificationsModel: PH-81
Product Number: 41949-000
Size (approx.): W200 x D185 x H67 mm / W7.9 x D7.3 x H2.6 in
Weight (approx.): 855 g / 1.88 lb
Materials: Acrylic resin and epoxy resin
Power Supply: AC 100 V, 50/60 Hz
Power Consumption: 10 W
Production and Development Supervision
- Keisuke Kondo, Associate Professor, Radiological Sciences, Komazawa University, Japan
