Pro-RF XR21
Interventional X-Ray Test Phantom - Diagnomatic by Pro-Project - 02-220

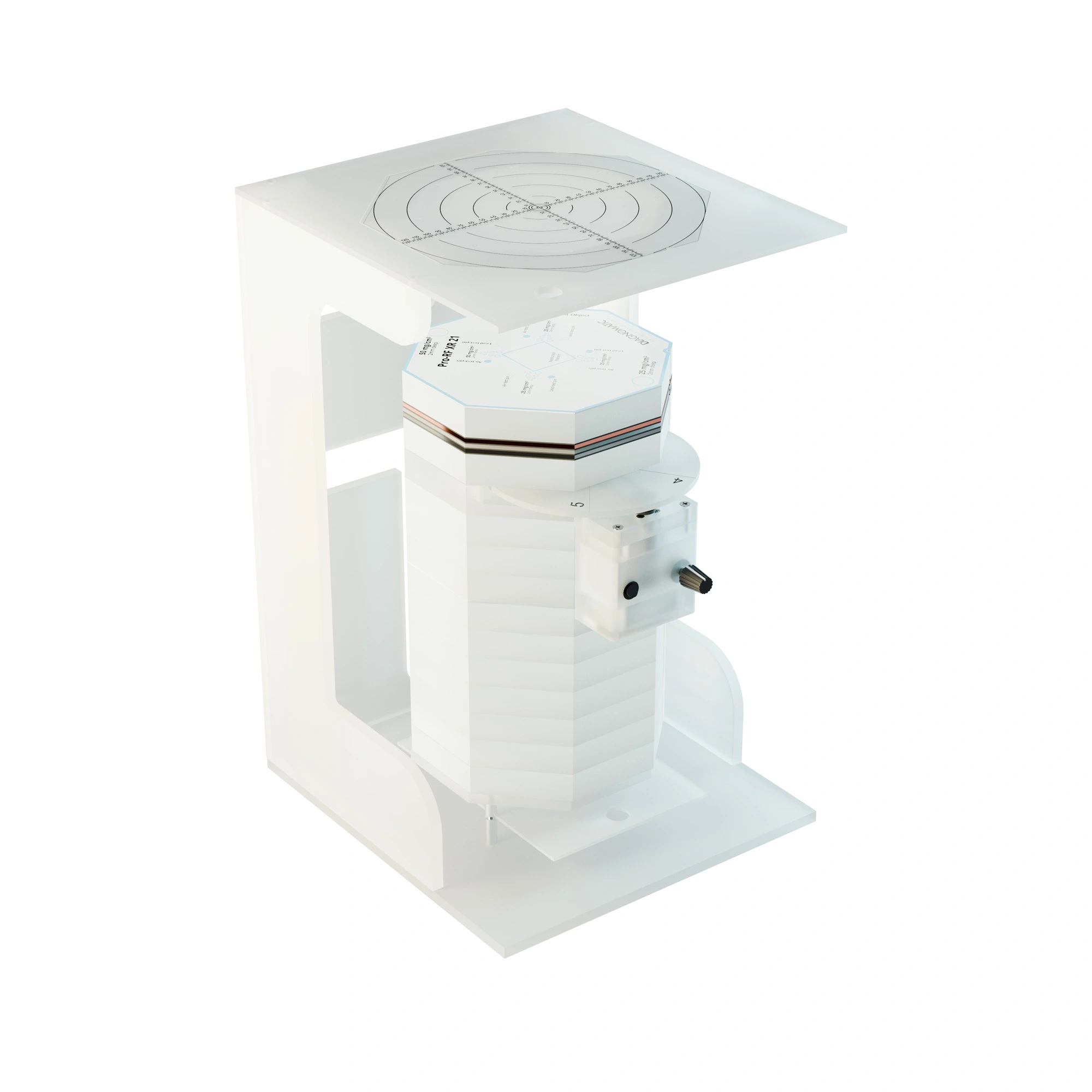

Pro-RF XR21 from Diagnomatic by Pro-Project uses modular PMMA plates and test targets to evaluate interventional X-ray imaging at different simulated patient thicknesses.

The PMMA plates allow thickness adjustment in 25 mm increments up to 300 mm, providing test conditions for different simulated patient sizes.

Click a photo or illustration to enlarge it.

Models and Ordering

It can be used to measure

• collimation / beam alignment
• position and size of the effective radiation field
• dynamic range
• spatial resolution
• contrast resolution
• homogeneity
• beam quality

Specifications

• central target assembly - 1 piece
• WTR plate A - 25 mm test object - 1 piece
• WTR plate B - 25 mm plate with Al and Air cylinders - 1 piece
• WTR plate C - 25 mm plate with Al and Air cylinders - 1 piece
• WTR plate D - 25 mm plate with Air cylinders - 3 piece
• WTR plate E - 25 mm plate with Air cylinders - 1 piece
• blank 25 mm PMMA plate with alignment parts - 4 pieces
• field size plate - 1 piece
• alignment target for test stand - 1 piece
• alignment cross for test stand - 1 piece
• alignment target for small base - 1 piece
• alignment cross for small base - 1 piece
• rotating target assembly - 1 piece
• test stand - 1 piece
• small base - 1 piece
• 3 mm thick lead plate with laminate - 1 piece
• 2 mm thick copper plate with laminate - 1 piece
• alignment pins (including spares) - 100 pieces
• heavy duty carrying case

Features and Test References

• complies with:
  – NEMA Standards Publication (NU 1-2001) Performance Measurements of Scintillation Cameras
  – NEMA Standards Publication (NU 1-2012) Performance Measurements of Scintillation Cameras
  – AAPM Report No. 15 - Performance Evaluation and Quality Assurance in Digital Subtraction Angiography - Diagnostic X-Ray Imaging Committee / Digital Radiography / Fluorography Task Group
  – Report NO. 60 Instrumentation Requirements of Diagnostic Radiological Physicists
  – Report NO. 31 by the American Association of Physicists in Medicine (AAPM)
• CE marked
• Includes a manual covering the tests, result evaluation and recording.
