Pro-RF Res 150
3D Fluoroscopy Test Phantom - Diagnomatic by Pro-Project - 02-120

Pro-RF Res 150 from Diagnomatic by Pro-Project supports acceptance and constancy testing of cone-beam CT and volume tomography functions in fluoroscopic systems.

Click a photo or illustration to enlarge it.

Models and Ordering

Specifications

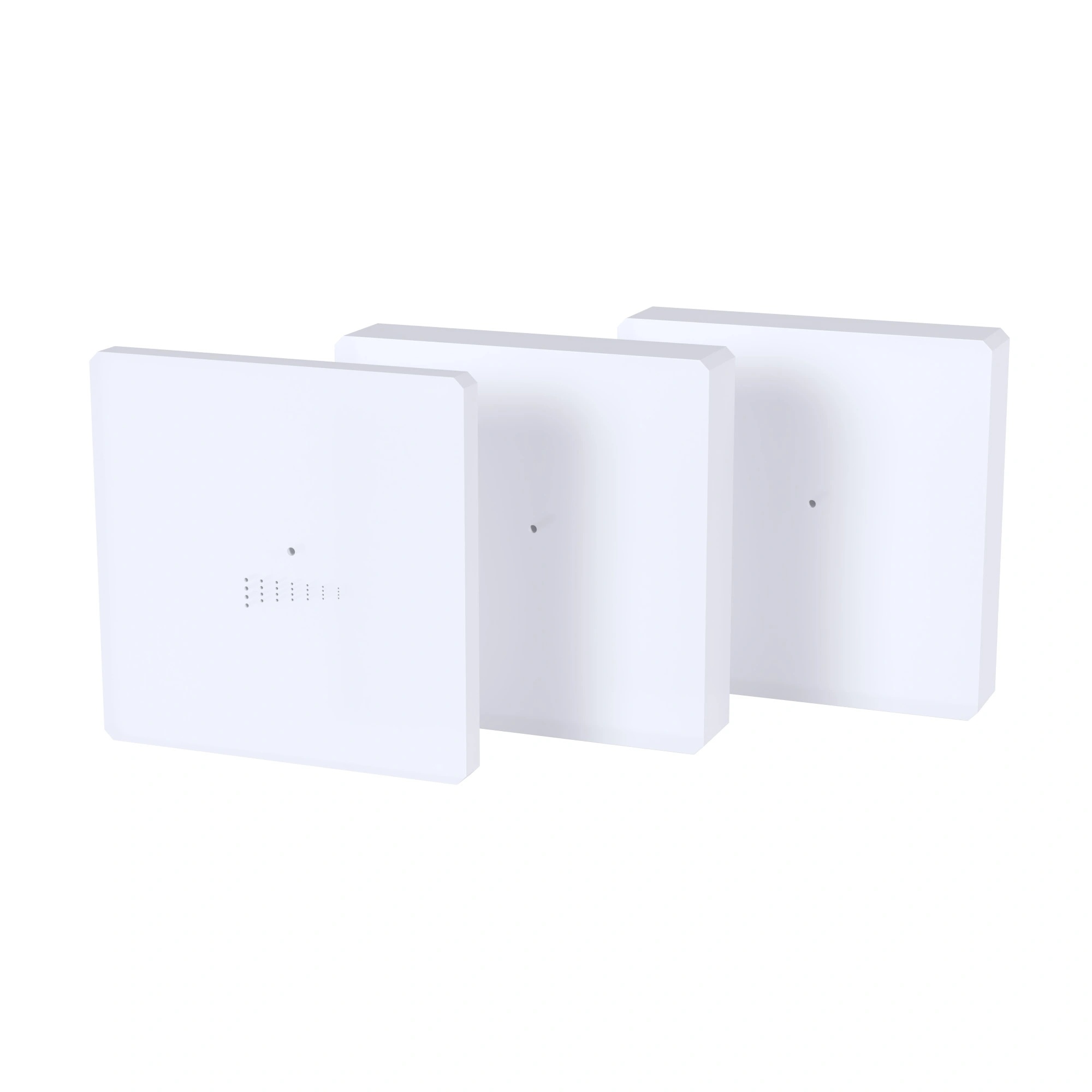

• dimensions: 120 x 120 mm
• 10 mm thick test module containing sets of cylindrical holes, parallel to Z-Axis, of 0.5, 0.6, 0.7, 0.8, 0.9, 1.0 and 1.3 mm diameters
• two additional 25 mm PMMA plates

Features and Test References

• complies with:
  – DIN 6868 – 150
• CE marked
• Includes a manual covering the tests, result evaluation and recording.
