Pro-RF MTF
Detector MTF Edge Test Device - Diagnomatic by Pro-Project - 02-107

Pro-RF MTF from Diagnomatic by Pro-Project provides a tungsten edge target for modulation transfer function measurements of radiographic and fluoroscopic detectors.

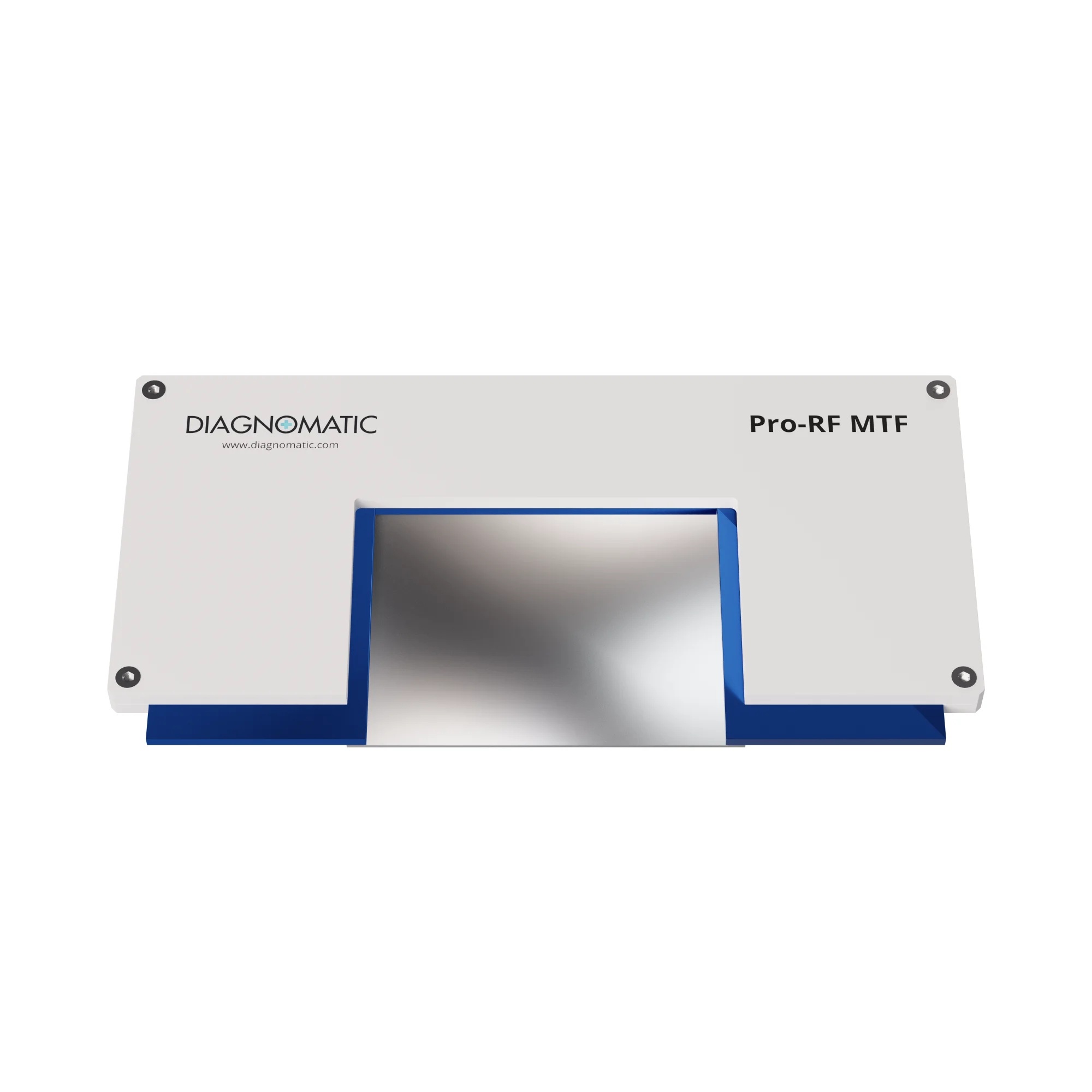

Diagnomatic Pro-RF MTF edge test device — front view, tungsten edge plate in blue aluminum frame on PMMA substrate, IEC 62220-1 MTF phantom

Click a photo or illustration to enlarge it.

Models and Ordering

Part number	Model / configuration
02-107	Pro-RF MTF

Software support

The device is supported by Diagnomatic software for automated analysis of acquired images. The software removes manual ROI placement and edge-profile processing, and generates audit-ready measurement reports compliant with the applicable standards.

Specifications

overall dimensions: 220 x 110 x 13 mm
tungsten plate dimensions: 100 x 80 x 1 mm
lead plate dimensions: 200 x 100 x 3 mm
tungsten edge roughness less than 5 µm
PMMA cover

Accessories

positional angle - the included positional angle sets the edge at a 2° inclination relative to the detector matrix, a requirement of the edge method for correct over-sampling of the edge spread function.

Diagnomatic Pro-RF MTF with positional angle accessory — side view showing angled mounting for IEC 62220-1 edge MTF measurement

Features and Test References

complies with:
– IEC 62220-1
– DIN EN 62220-1
– IEC 62220-1-1:2015
CE marked
Includes a manual covering the tests, result evaluation and recording.
