Pro-RF GridAlign
Radiographic Grid Alignment Tool - Diagnomatic by Pro-Project - 02-113

Pro-RF GridAlign from Diagnomatic by Pro-Project helps check alignment between a radiographic grid and the central X-ray beam.

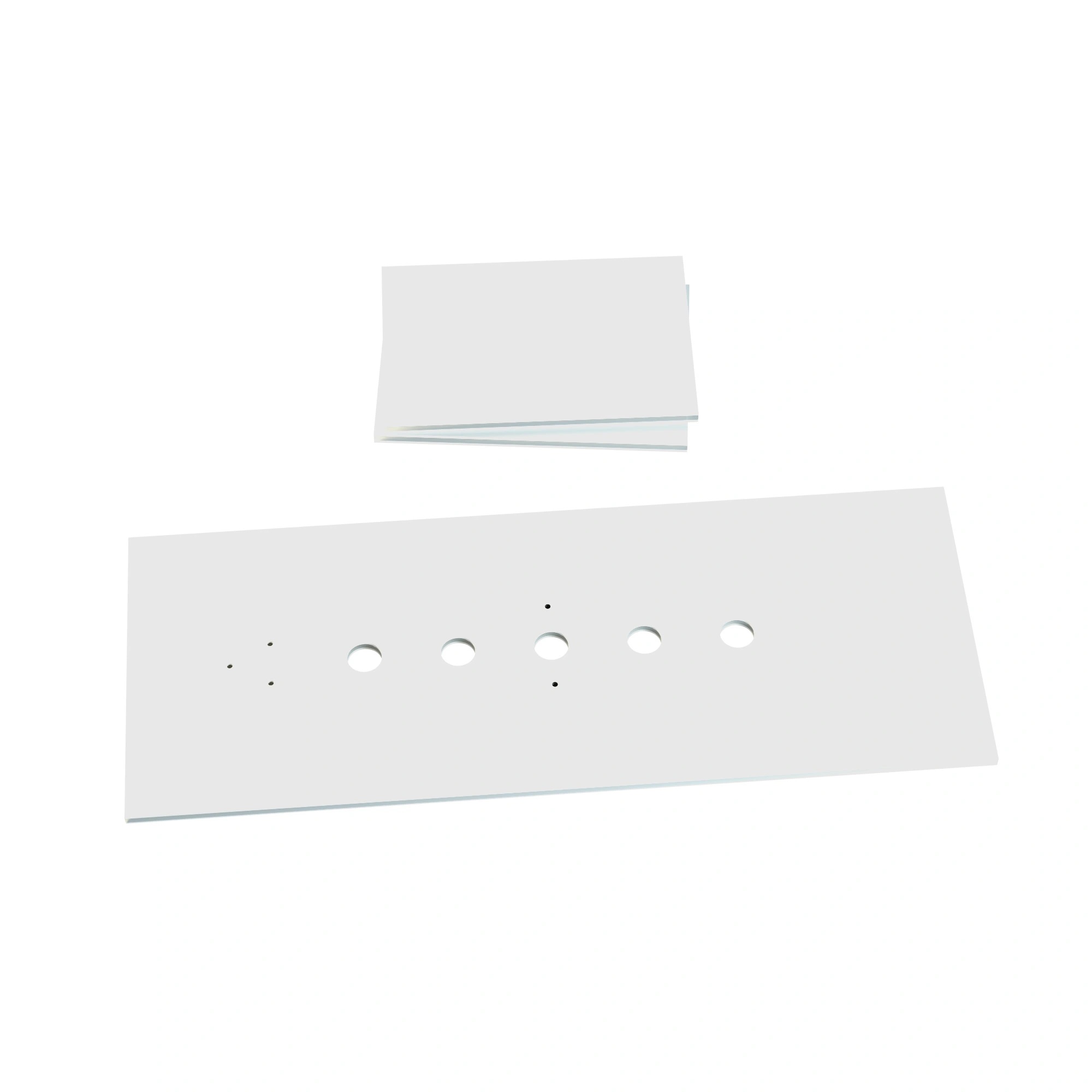

A set consisting of a long, rectangular, flat object made of one lead layer between two layers of white plastic with a row of five pass-through holes, and two similar shorter rectangular objects without holes.
A set consisting of a long, rectangular, flat object made of one lead layer between two layers of white plastic with a row of five pass-through holes, and two similar shorter rectangular objects without holes.

Click a photo or illustration to enlarge it.

Models and Ordering

Part numberModel / configuration
02-113Pro-RF GridAlign

Specifications

  • main plastic covered lead blocker
  • dimensions: 90 x 230 x 2 mm
  • five larger holes have centers spaced 25 mm apart (allow test exposures to a film cassette)
  • smaller holes provide marking to show the tool orientation
  • two additional small lead blockers

Features and Test References

  • complies with:
    – IEC 61223-3-1
  • CE marked
  • Includes a manual covering the tests, result evaluation and recording.
Request product information or a quote
Contact Supertech at (800) 654-1054 or send a quote request.
