Pro-RF Fluo 18
Fluoroscopy Image Quality Phantom - Diagnomatic by Pro-Project - 02-401

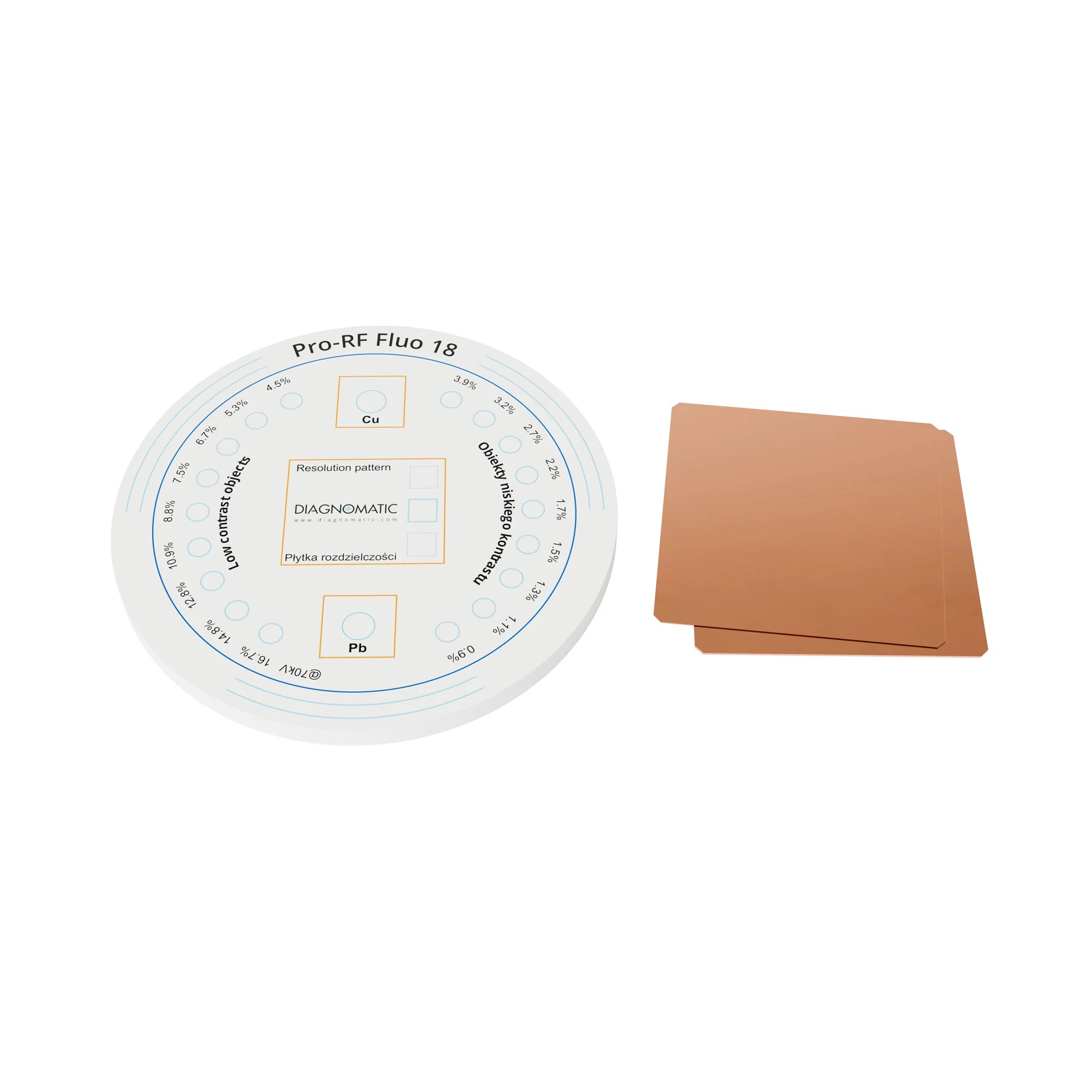

Pro-RF Fluo 18 from Diagnomatic by Pro-Project combines contrast, resolution and circular geometry targets for fluoroscopy image-quality evaluation.

Click a photo or illustration to enlarge it.

Models and Ordering

Specifications

• diameter: 180 mm
• thickness: 10 mm
• two standard layouts available (others upon request)
• 3 circular rims on the outside of the phantom (Ø: 150, 160 and 170 mm) for a geometry and collimation check
• 18 low contrast objects, 8 mm in diameter, producing contrast values from 0.9 to 16.7%
• pattern for line pair resolution evaluation (from 0.6 to 5.0 LP/mm)
• Pb and Cu squares with circular bright and dark objects for contrast and brightness adjustment
• 1.0 and 0.5 mm high purity Cu attenuation filters (fit to the diaphragm housing)
• compact carrying case

Features and Test References

• complies with:
  – IEC 61223-3-1
  – IPEM Report 91 (2005): Recommended Standards for the Routine Performance Testing of Diagnostic X-Ray Imaging Systems published by the Institute of Physics and Engineering in Medicine
• CE marked
• Includes a manual covering the tests, result evaluation and recording.
