Pro-RF DSA - Pro-Project - 02-108

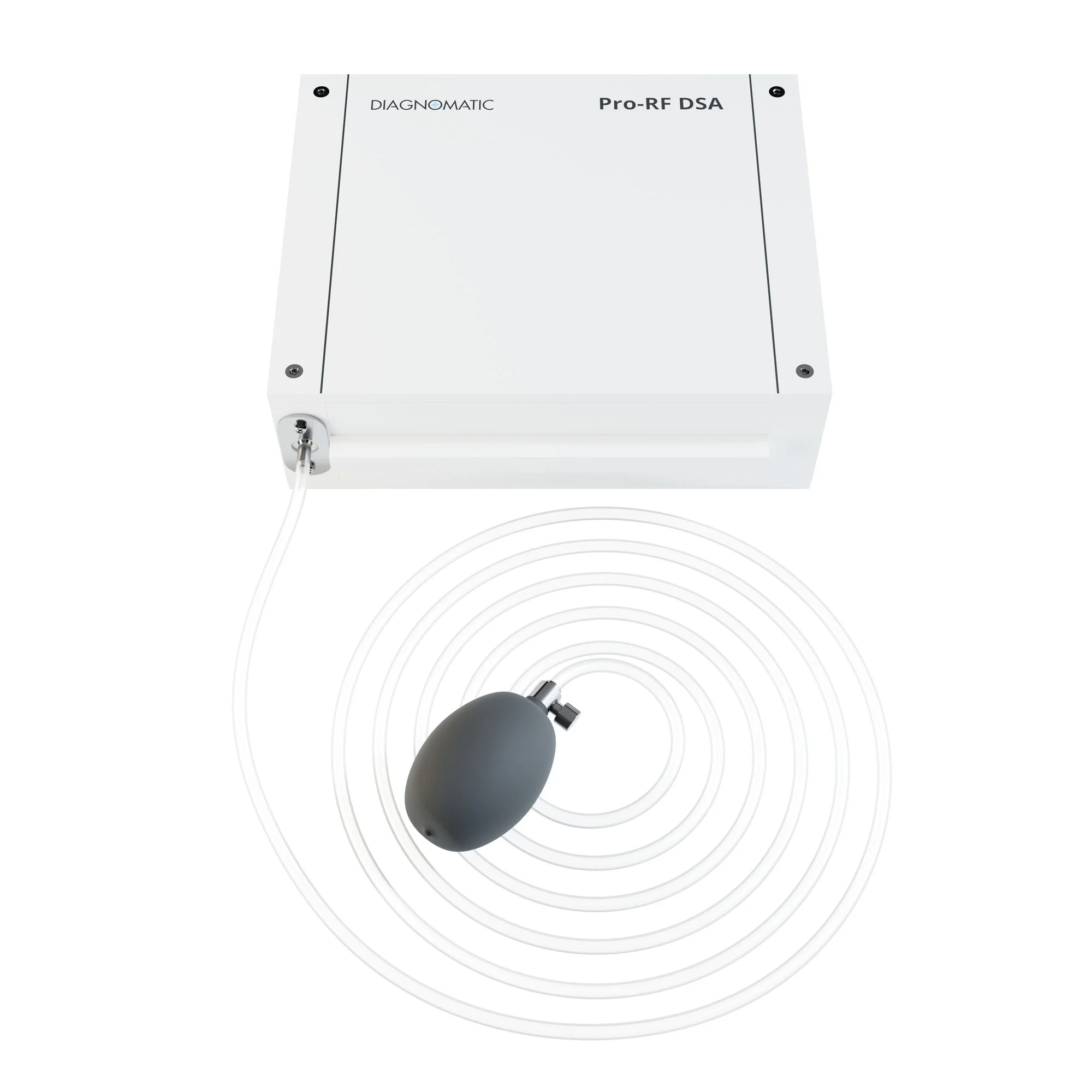

A special phantom for Quality Assurance of Digital Subtraction Angiography Equipment (DSA) according to IEC 61223-3-3 and DIN 6868/Parts 8, (2007) and 54. The phantom contains a movable insert with aluminium strips to simulate blood vessels. This insert can be moved via pneumatic system from a safe distance during exposure.

The Pro-RF DSA phantom measures:

artifacts
dynamic range
logarithmic errors
contrast media sensitivity

Technical data (can be modified to customer specifications):

overall dimensions: 200 x 170 x 59mm
total PMMA thickness in the test area: 57mm
dynamic 7 steps wedge of copper with thicknesses from 0.2 mm to 1.4 mm arranged perpendicular to the longitudinal direction of the insert
additional step from 1.4mm to 0.2mm for compensation test
additional step from 0.0mm to 0.2mm
movable PMMA insert with 4 aluminum strips (0.05, 0.1, 0.2, 0.4mm), purity 99.5%, simulating different vascular densities
pneumatic 6m hose with a valve allowing for remote movement of the insert in both directions

Product features:

complies with:
- IEC 61223-3-3
- DIN 6868/Parts 8, (2007) and 54
CE certified
the Manual provides detailed guidelines for carrying out each test, results assessment and registration

Item Number	Description
02-108	Pro-RF DSA - testing Digital Subtraction Angiography according to IEC 61223-3-3
