Pro-RF Contrast
R/F Contrast-Detail Phantom - Diagnomatic by Pro-Project - 02-109

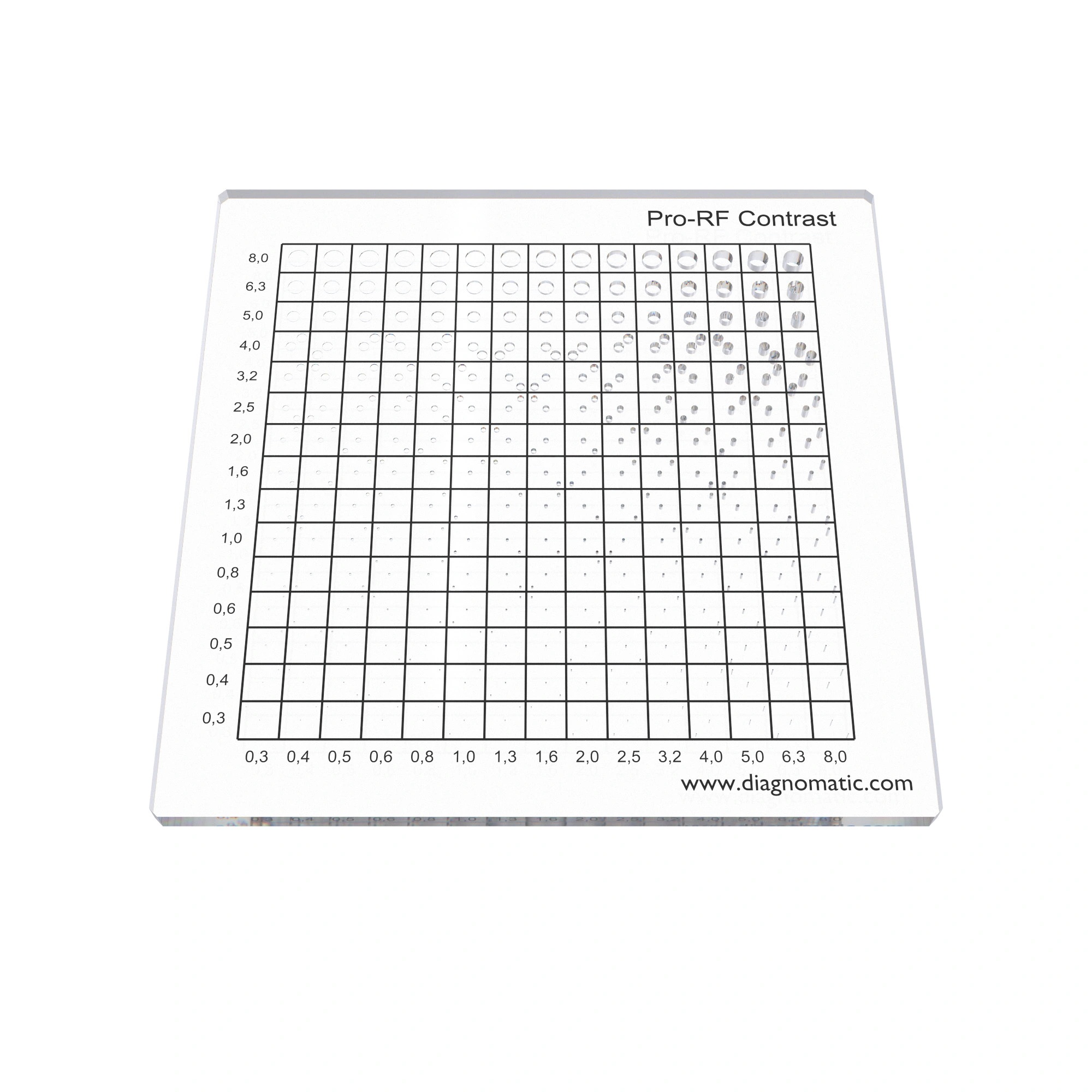

Pro-RF Contrast from Diagnomatic by Pro-Project uses 405 contrast-detail holes for assessing detail visibility in radiography, fluoroscopy and angiography.

Click a photo or illustration to enlarge it.

Models and Ordering

Specifications

• dimensions: 265 x 265 x 10 mm
• made of PMMA
• 15 columns and 15 rows of holes
• two cylindrical holes for each combination, except for the first 3 rows with the largest diameters
• diameters of holes range from 0.3 to 8.0 mm
• depths of holes range from 0.3 to 8.0 mm
• tolerance of hole measurements is at least 0.01 mm
• all markings on the phantom are opaque for X-rays
• available in rectangular and circular shapes
• additional Cu filters for different attenuation combinations
• optional carrying case (02-110)

Features and Test References

• complies with:
  – IEC 61223-3-1
• CE marked
• Includes a manual covering the tests, result evaluation and recording.
