Pro-RF Contact
Film-Screen Contact Test Grid - Diagnomatic by Pro-Project - 02-104

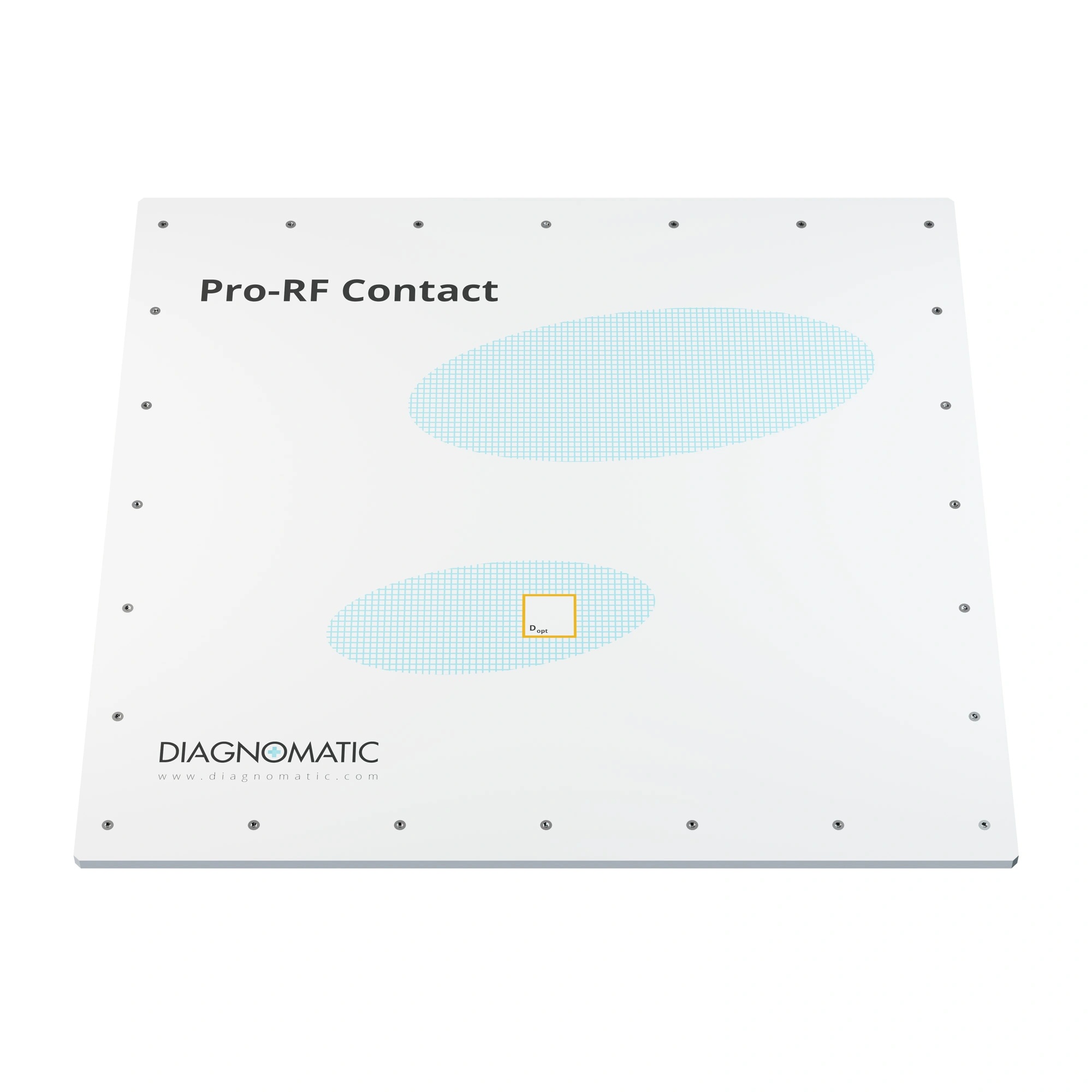

Pro-RF Contact from Diagnomatic by Pro-Project provides a wire mesh for checking radiographic film-screen cassette contact.

Click a photo or illustration to enlarge it.

Models and Ordering

Specifications

• dimensions: 430 x 450 x 8 mm
• 25 x 25 mm free field to measure optical density
• mesh size: 3.15 mm
• wire diameter: 0.71 mm

Features and Test References

• complies with:
  – IEC 61223-3-1
• CE marked
• Includes a manual covering the tests, result evaluation and recording.
