Pro-RF AlphaG
R/F Geometry Test Phantom - Diagnomatic by Pro-Project - 02-114

Pro-RF AlphaG from Diagnomatic by Pro-Project checks beam alignment, collimation and effective field size in radiography and fluoroscopy.

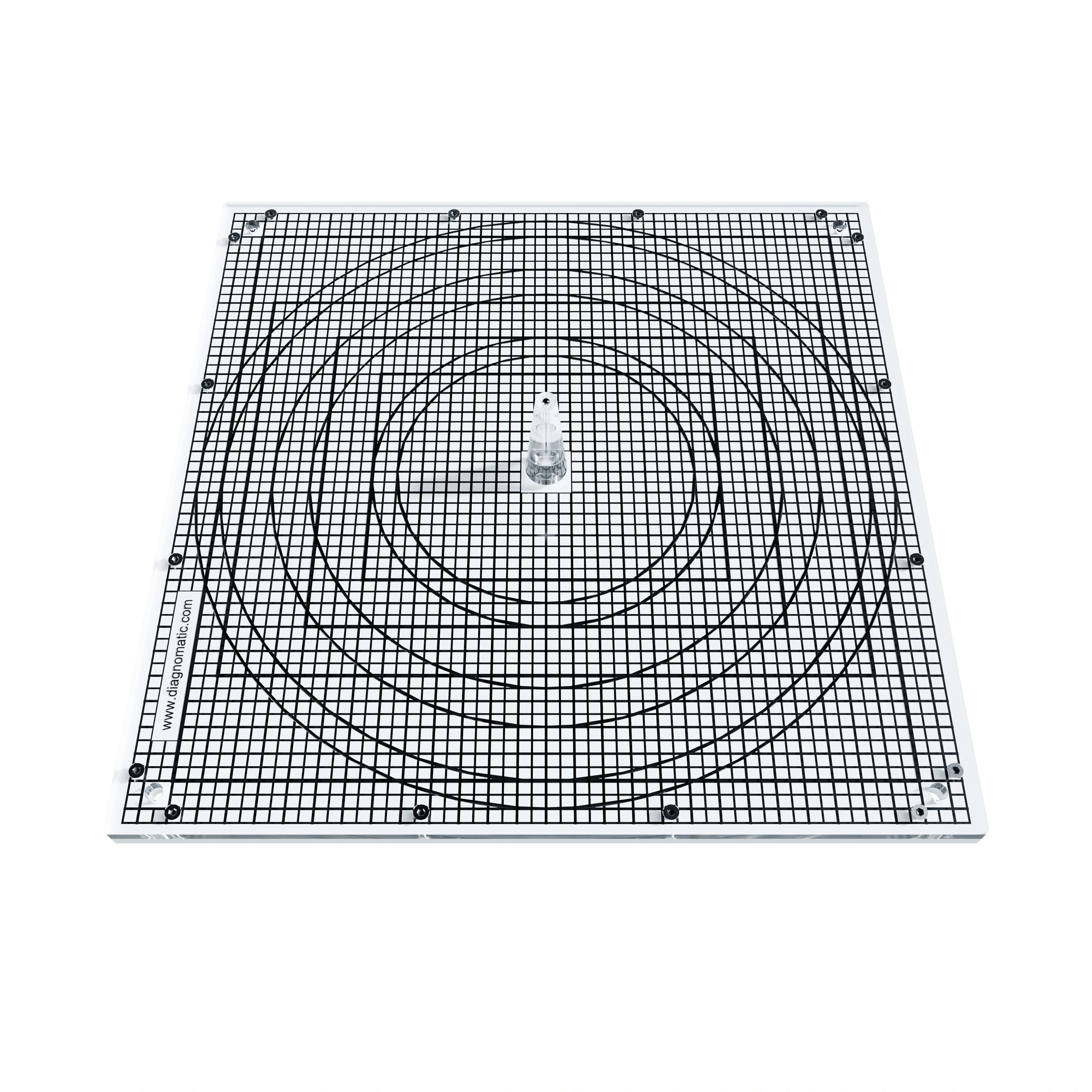

A square object, the top half made of transparent plastic, the bottom half made of white plastic, lead mesh located inside, and a transparent cone in the centre of the top cover.
A square object, the top half made of transparent plastic, the bottom half made of white plastic, lead mesh located inside, and a transparent cone in the centre of the top cover.

Click a photo or illustration to enlarge it.

Models and Ordering

Part numberModel / configuration
02-114Pro-RF AlphaG

Specifications

  • dimensions: 308 x 308 x 11 mm
  • lead mesh pattern (5 mm scale) engraved in PMMA plate secured with transparent cover
  • markings to determine the size and position of the effective radiation field
  • cone for the perpendicular X-Ray beam control in the range of 0° ÷ 1.5°

Features and Test References

  • complies with:
    – IEC 61223-3-1
    – DIN 6868/3 and DIN 6868/4
  • CE marked
  • Includes a manual covering the tests, result evaluation and recording.
Request product information or a quote
Contact Supertech at (800) 654-1054 or send a quote request.
