Pro-RF AEC PMMA
PMMA AEC Test Plates - Diagnomatic by Pro-Project - 02-201, 02-221, 02-221-15
Pro-RF AEC PMMA from Diagnomatic by Pro-Project provides acrylic plate stacks for automatic exposure control checks, with multiple sizes and stack heights.
Click a photo or illustration to enlarge it.
Models and Ordering
| Part number | Model / configuration |
|---|---|
| 02-201 | 240 x 240 mm, 20 cm stack version |
| 02-221 | 300 x 300 mm, 20 cm stack version |
| 02-221-15 | 300 x 300 mm, 15 cm stack version |
Specifications
- made of transparent PMMA

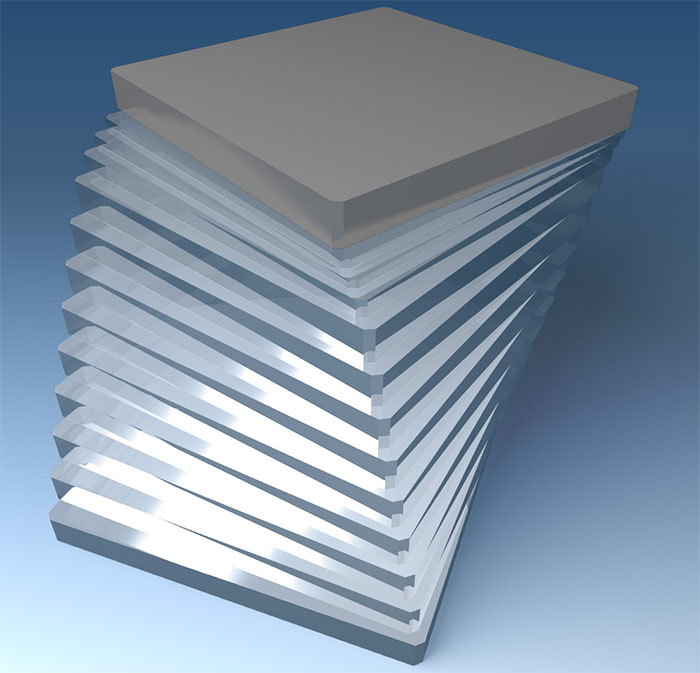

- optional 99.5% purity 240 x 240 x 25 mm aluminium plate (02-202)
- optional holder for stabilizing PMMA panels vertically
- optional carrying case
Available configurations

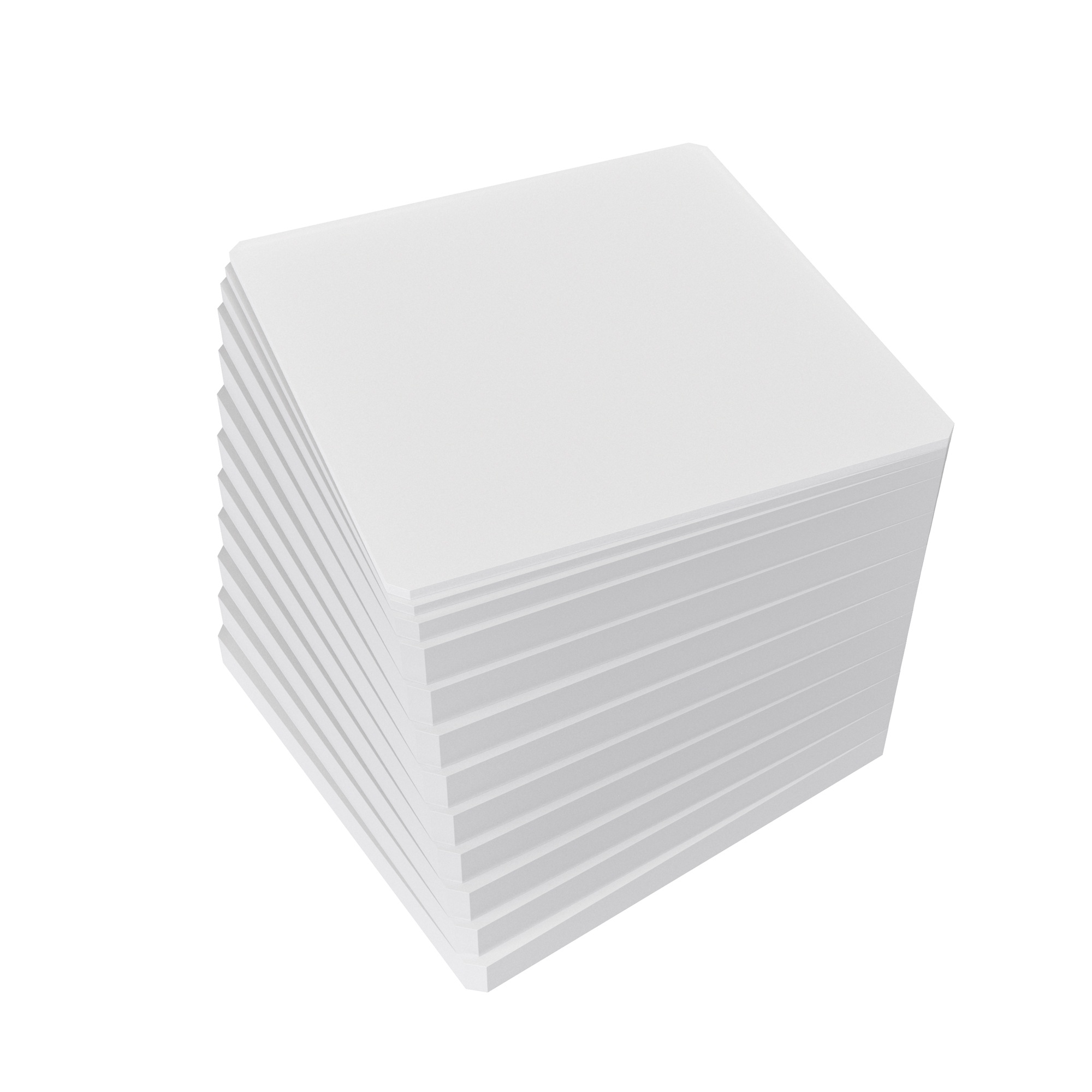

- Pro-RF AEC PMMA (02-201)- 240 x 240 mm (9x 20 mm, 1x 10 mm, 2x 5 mm)
- Pro-RF AEC PMMA (02-221) - 300 x 300 mm (9x 20 mm, 1x 10 mm, 2x 5 mm)
- Pro-RF AEC PMMA (02-221-15) - 300 x 300 mm (7x 20 mm, 1x 10 mm)
- thickness tolerance +/- 10%
- other sizes of filters upon request
Features and Test References
- complies with:
— IEC 61223-3-1 (withdrawn) – superseded by IEC 61223-3-8:2024
— IEC 61223-3-8:2024
- CE marked
- Includes a manual covering the tests, result evaluation and recording.
