Pro-RF AAPM 31
Diagnostic X-Ray Attenuation Filters - Diagnomatic by Pro-Project - 02-205

Pro-RF AAPM 31 from Diagnomatic by Pro-Project uses acrylic and aluminum attenuators for diagnostic X-ray exposure measurements and AEC or ABC testing.

Click a photo or illustration to enlarge it.

Models and Ordering

Specifications

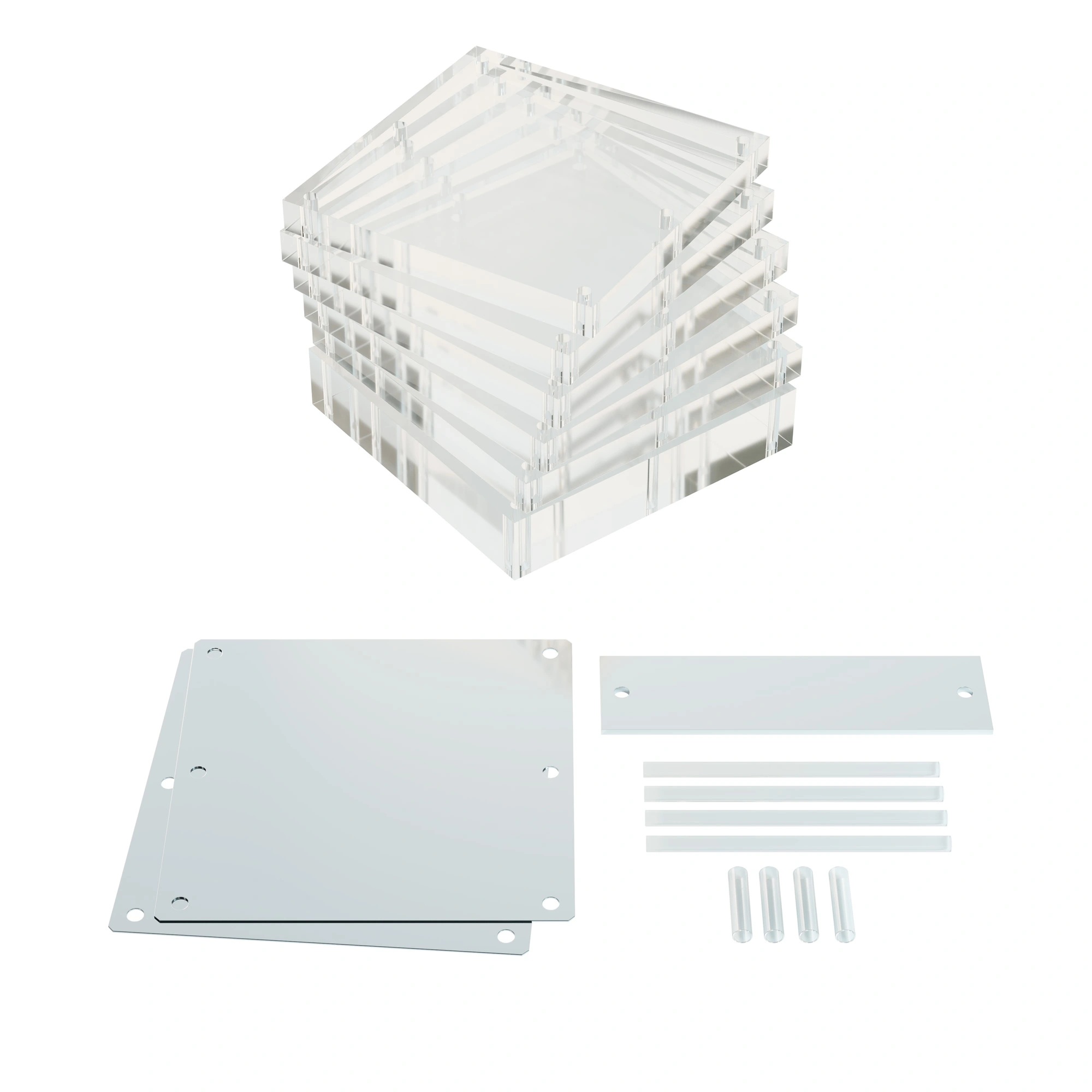

• 5x acrylic plate 250 x 250 x 25.4 mm
• 1x acrylic plate 250 x 250 x 50.8 mm
• 1x 250 x 250 x 1 mm aluminium filter
• 1x 250 x 250 x 2 mm aluminium filter
• 1x 70 x 250 x 4.5 mm aluminium filter
• 4x positioning rod
• 4x 50.8 mm spacer tube
• optional heavy-duty transport case (02-206)

Features and Test References

• complies with:
  – AAPM Report No. 31 “Standardized Methods for Measuring Diagnostic X-Ray Exposure”
• CE marked
• Includes a manual covering the tests, result evaluation and recording.
