Pro-RF AAPM 15 - Pro-Project - 02-117
Evaluate Digital Functions of DSA Systems
This Digital Subtraction Angiography (DSA) Phantom follows the recommendation in Report No. 15 by the AAPM (American Association of Physicists in Medicine) - Digital Radiology/Fluorography Task Group of the Diagnostic X-Ray Imaging Committee.
The AAPM 15 is designed to evaluate digital functions of DSA systems and can be used to check: contrast range, resolution, linearity, uniformity, amplifier dynamic range, registration accuracy and subtraction effectiveness. Its modular construction allows to setup up the desired test configuration in a very easy and accurate manner.
Technical data (can be modified to customer specifications):- Section I and II: Step Wedge module

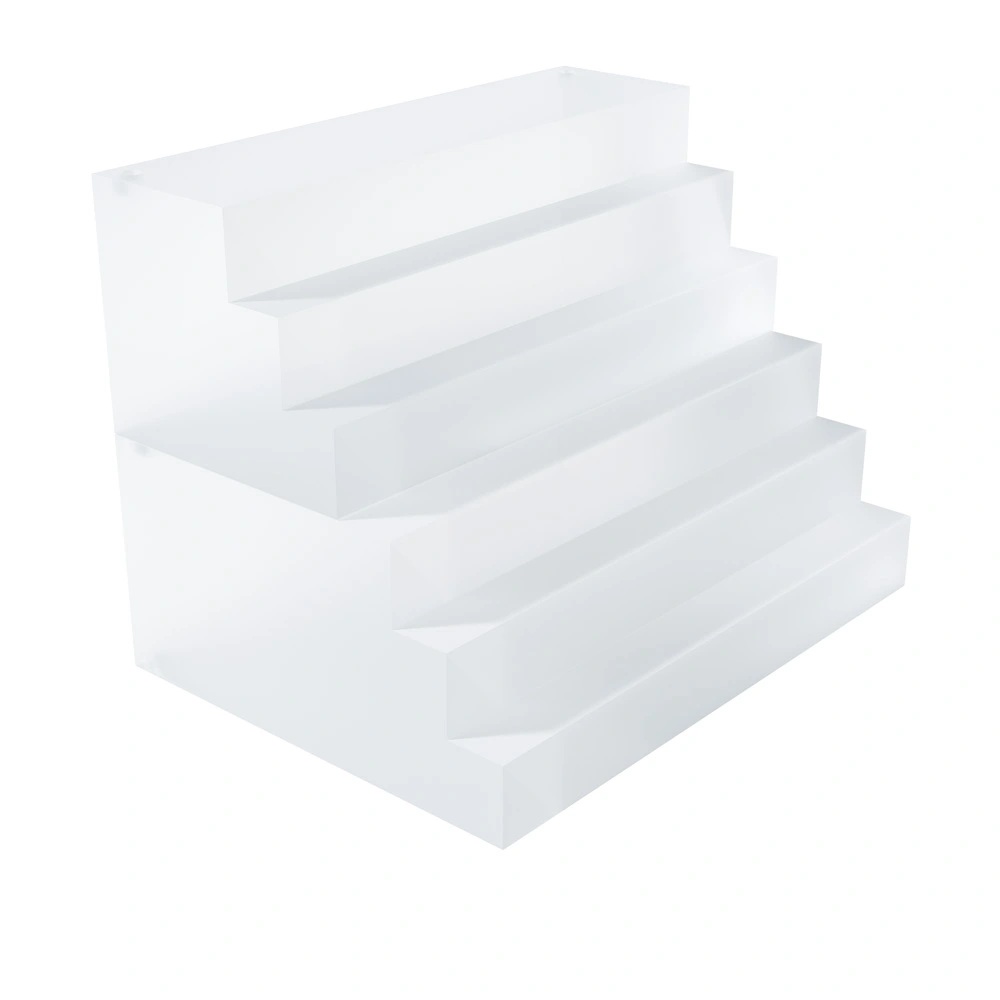

- 6 step wedges (each 25.4mm high) to test dynamic range.
- Can be folded into 203.2 x 203.2 x 76.5mm solid block.

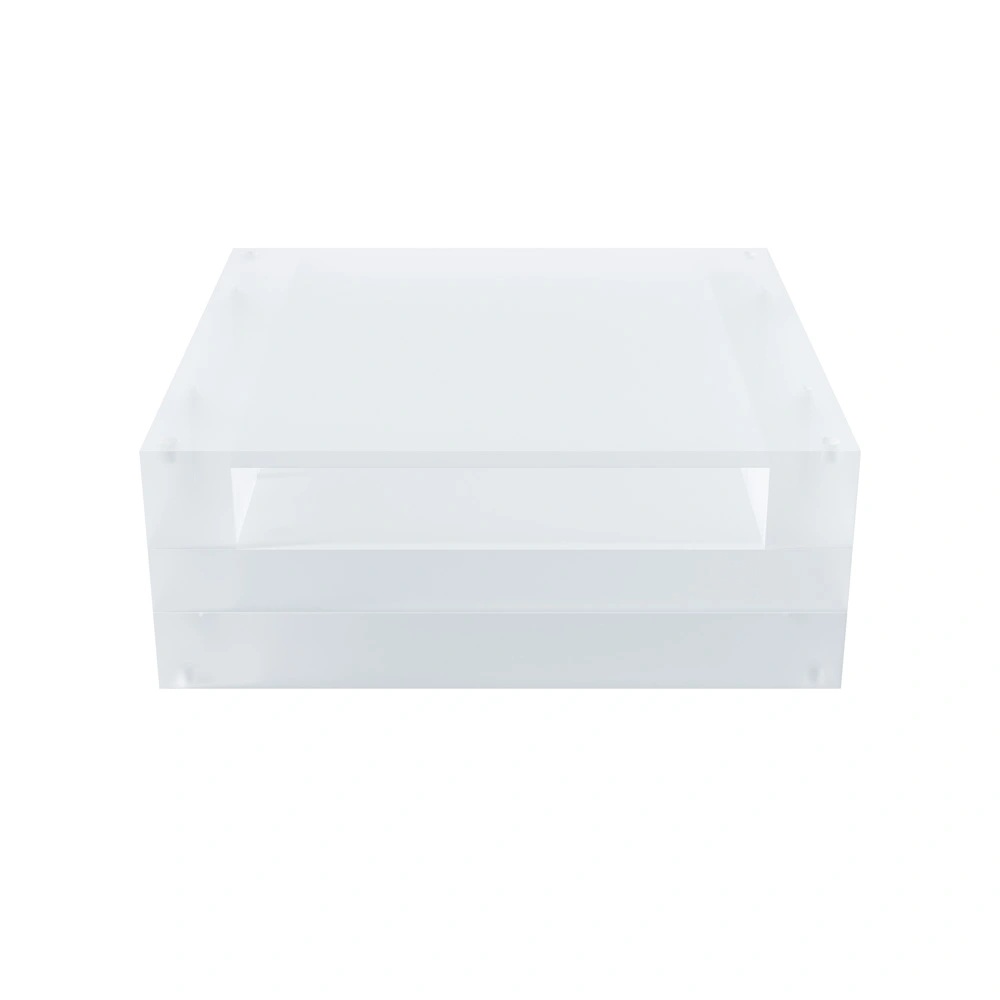

- Section III: Slot block with a place to fit other test modules.
- Outer size: 203.2 x 203.2 x 76.5mm.
- Slot size: 203.2 x 152.4 x 25.4mm.

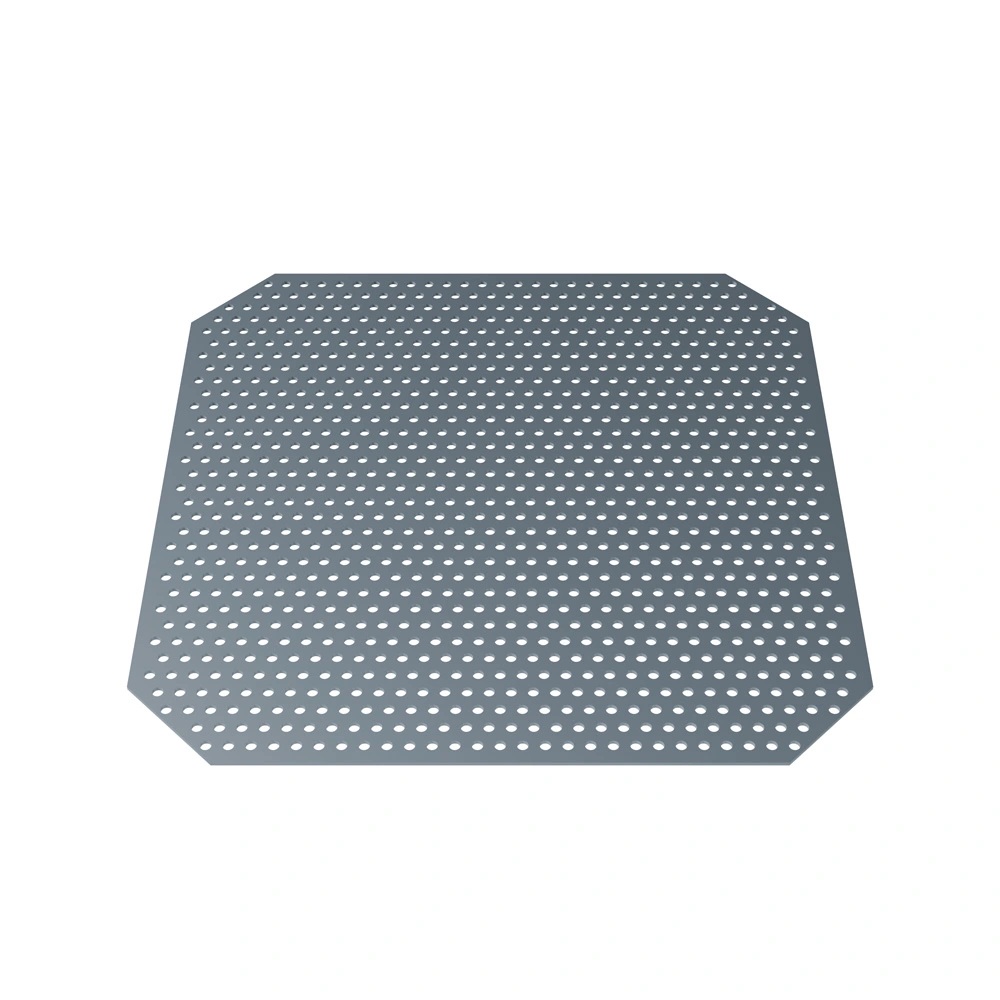

- Registration Plate: Made of aluminium with array of 3.18mm holes.
- Size: 203.2 x 203.2 x 1.5mm

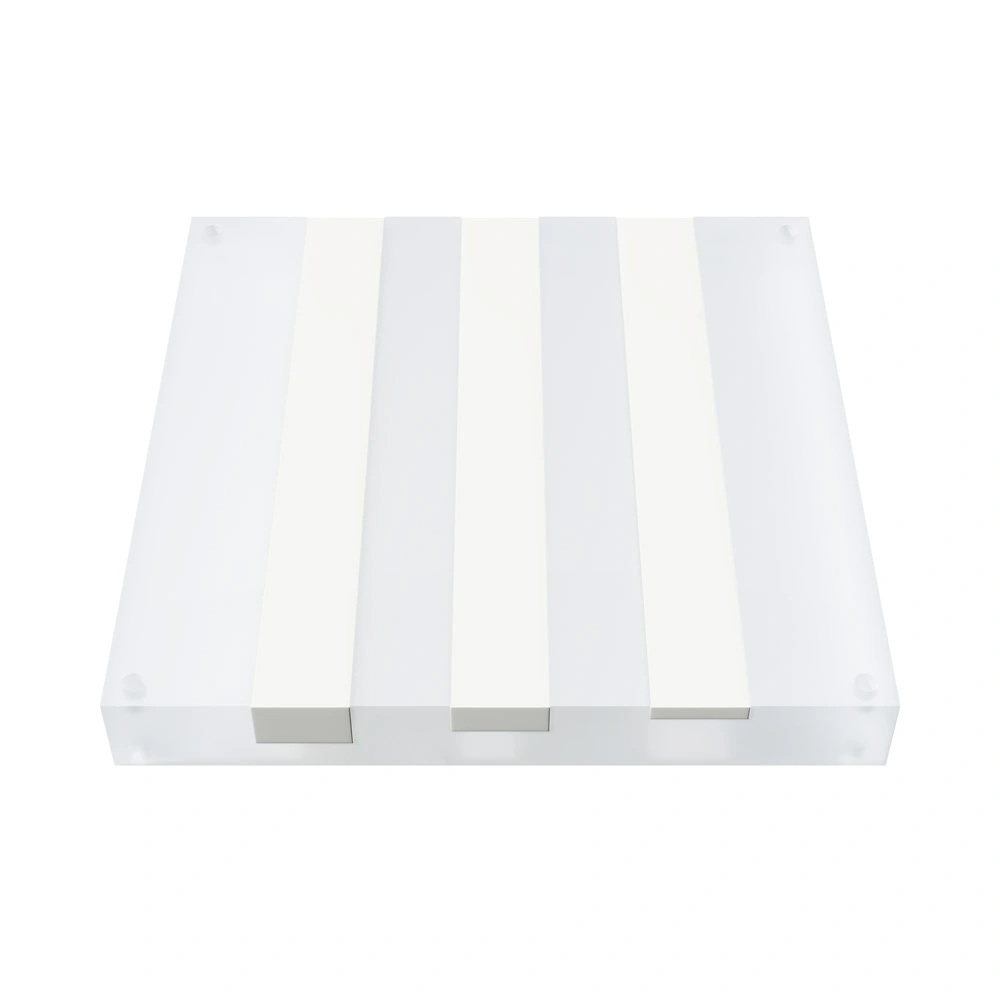

- Bone Section: With three PTFE strips.
- Thickness: 25mm width and 5, 10 and 15mm
- Size: 203.2 x 203.2 x 25.4mm

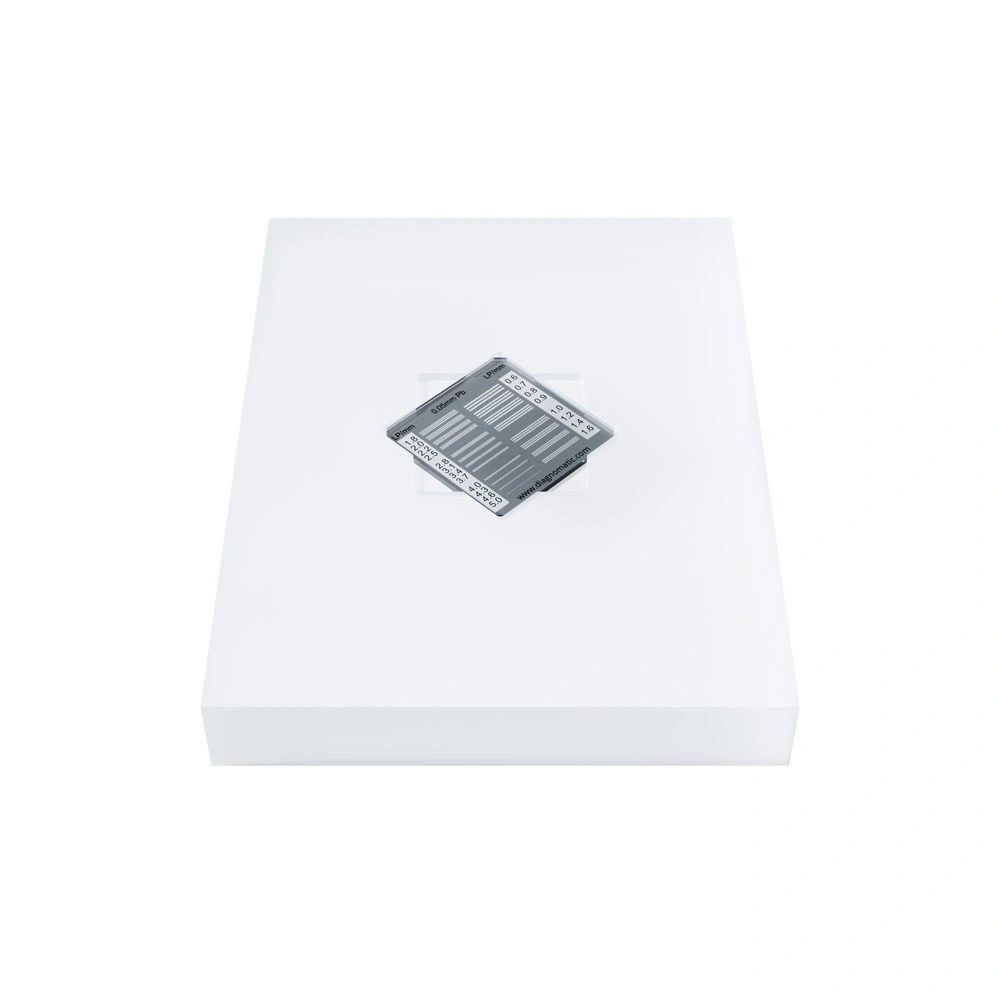

- High Contrast Resolution Section: Containing pattern for line pair resolution evaluation (from 0.6 to 5.0 LP/mm).
- Dedicated Recesses: Allows a test pattern to be placed in different orientations.
- Size: 203.2 x 203.2 x 25.4mm
- Blank Insert: When used with other modules, it forms mask plate.
- Size: 203.2 x 152.4 x 25.4mm

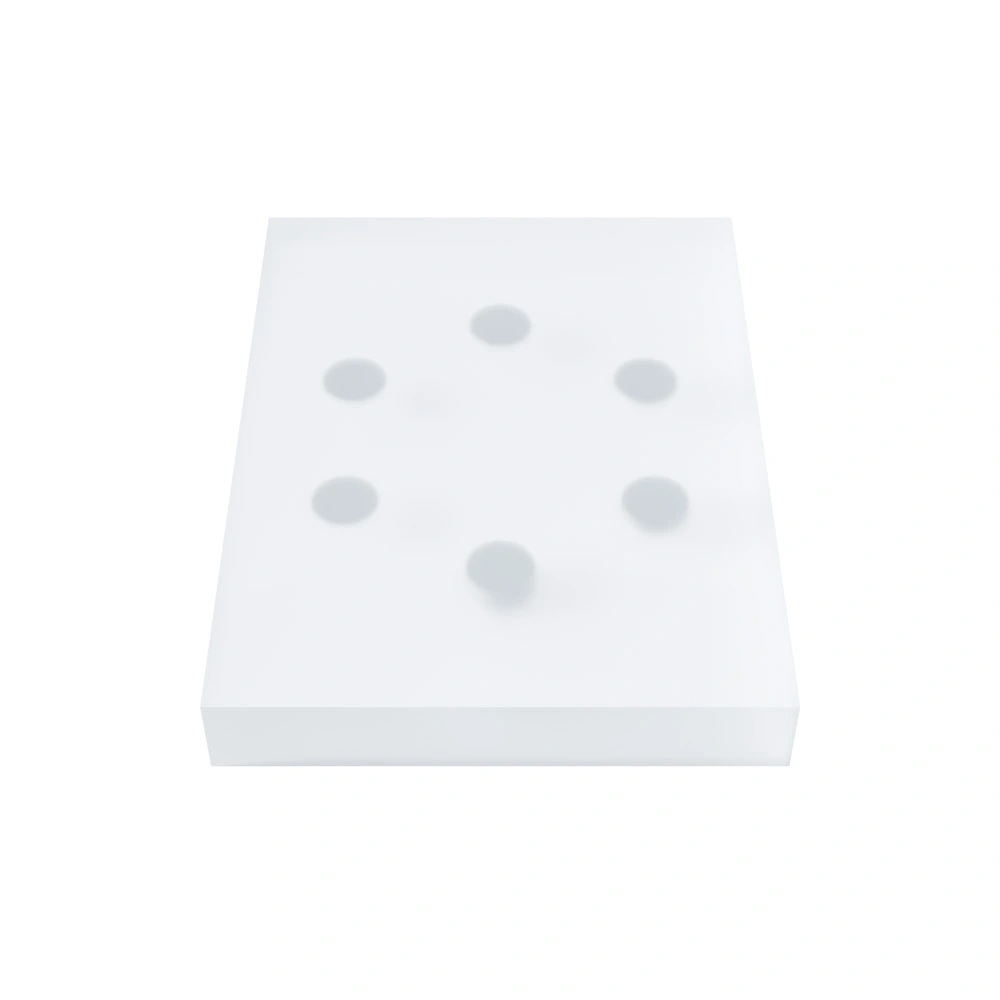

- Linearity Insert: contains 6 iodine areas (19mm diameter)
- Iodine Thickness and Concentration: 0.5, 1.0, 2.0, 4.0, 10.0 and 20.0 mg/cm2.
- Size: 203.2 x 152.4 x 25.4mm

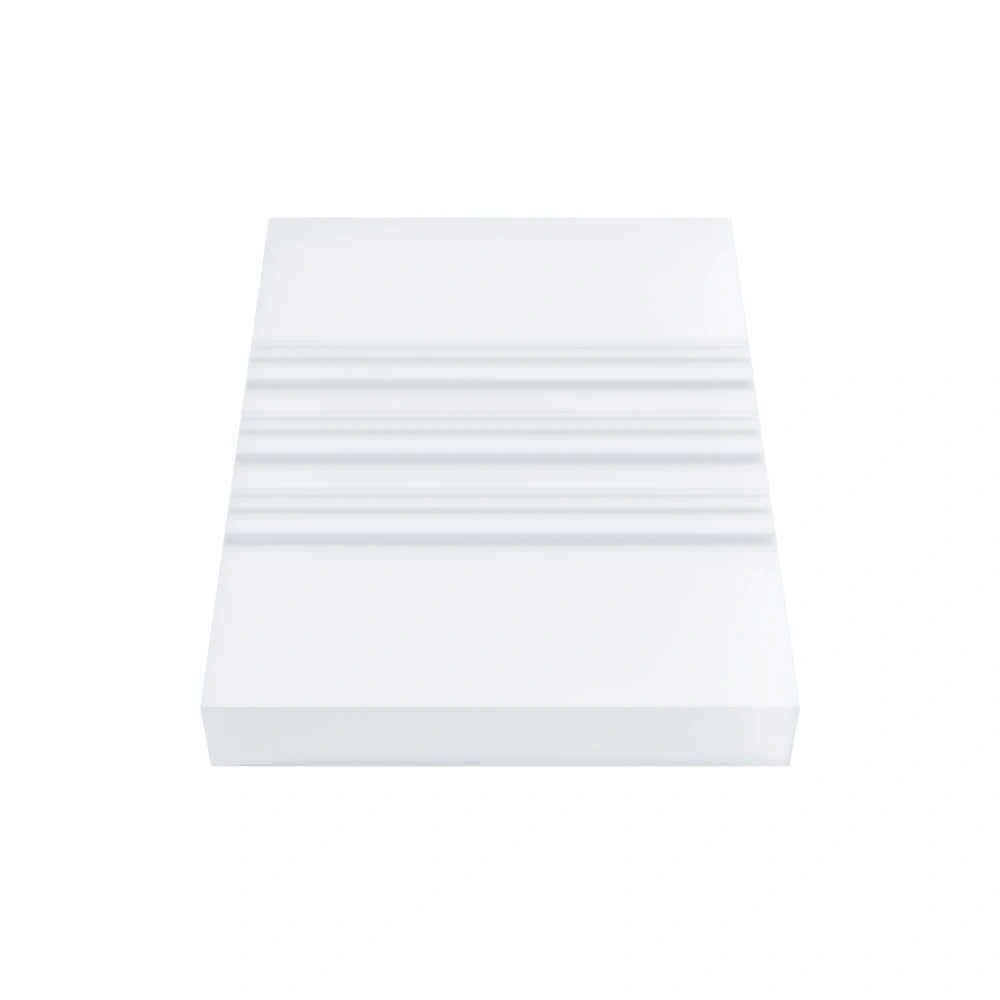

- Low Contrast Artery Insert: Contains 3 sets of analogue blood vessels
- Diameters: 0.5, 1.0, 2.0 and 4.0mm
- Each vessels group includes different iodine concentrations: 2.5, 5.0 and 10.0 mg/cc.
- Size: 203.2 x 152.4 x 25.4mm

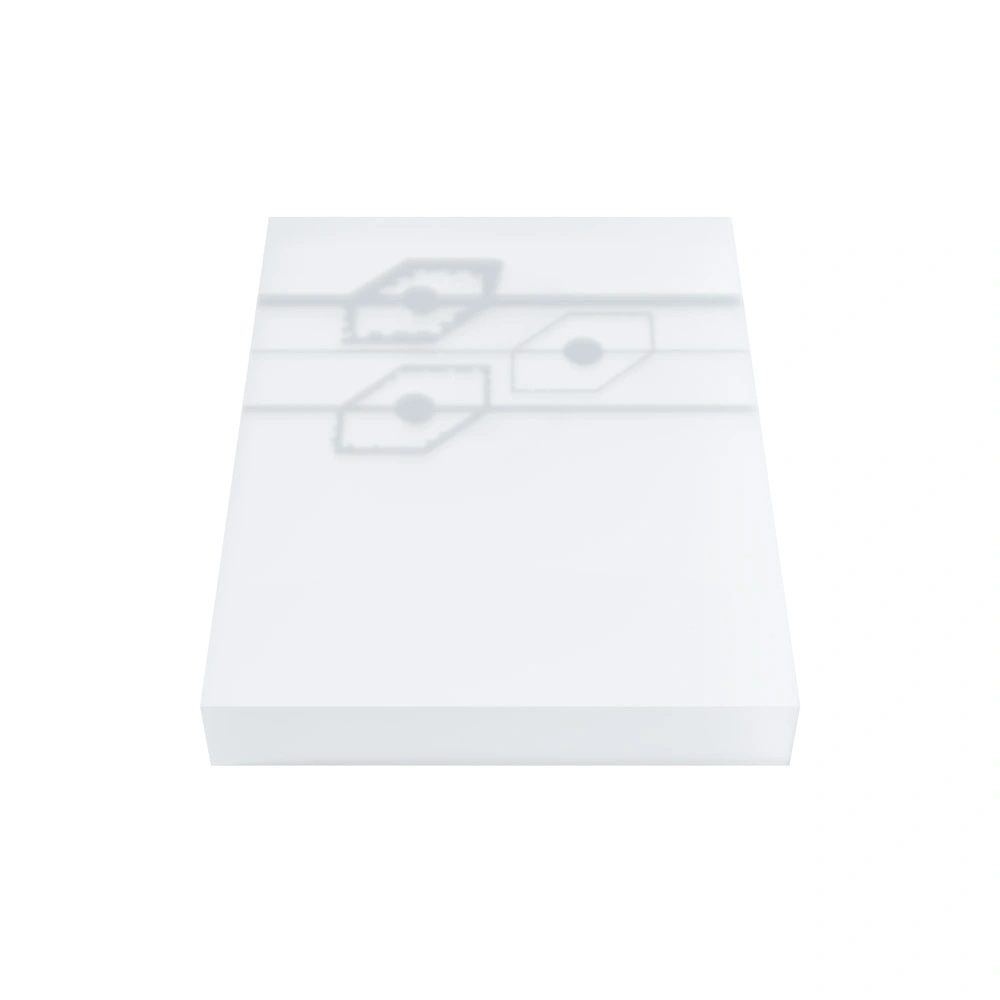

- 150mg/ml Iodine Artery Insert: 3 sets of analogue blood arteries
- Thickness: 1.0, 2.0, 4.0 mm
- Each artery includes arteriarctial and arterial aneurysm: Sizes are 1/4, 1/2 and 3/4 of artery diameter.
- Size: 203.2 x 152.4 x 25.4mm
- 300mg/ml Iodine Artery Insert: 3 sets of analogue blood arteries
- Thickness: 1.0, 2.0, 4.0 mm
- Each artery includes arteriarctial and arterial aneurysm: Sizes are 1/4, 1/2 and 3/4 of artery diameter.
- Size: 203.2 x 152.4 x 25.4mm

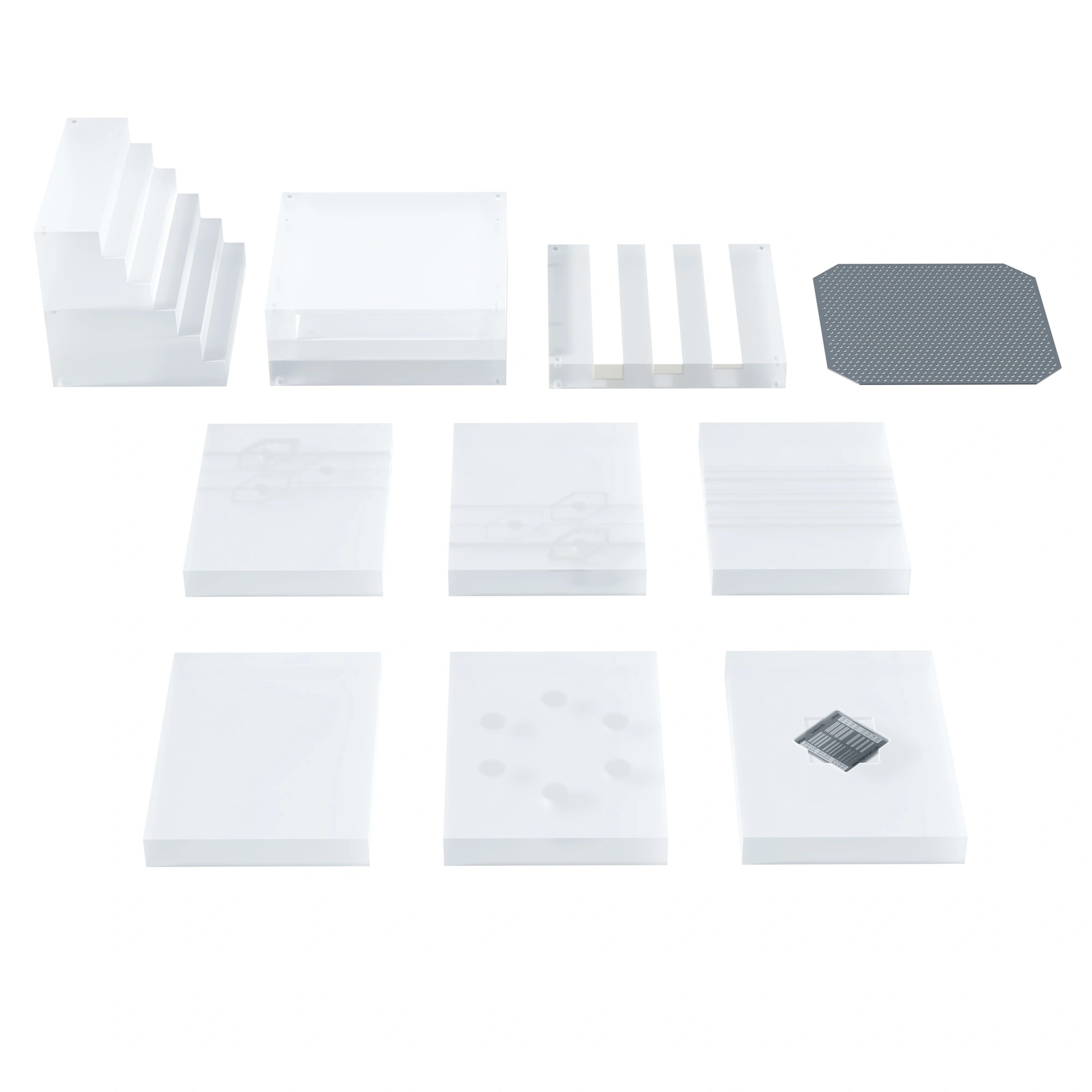

- Carrying Case

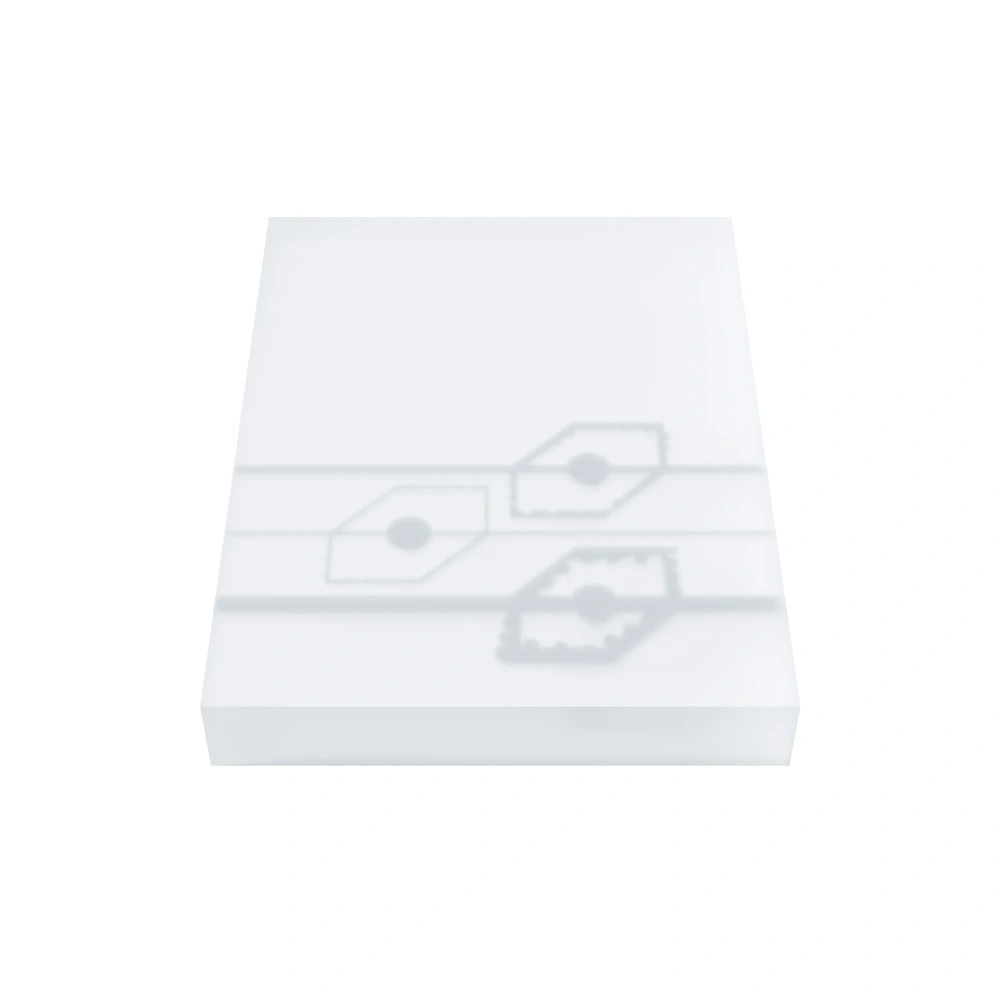

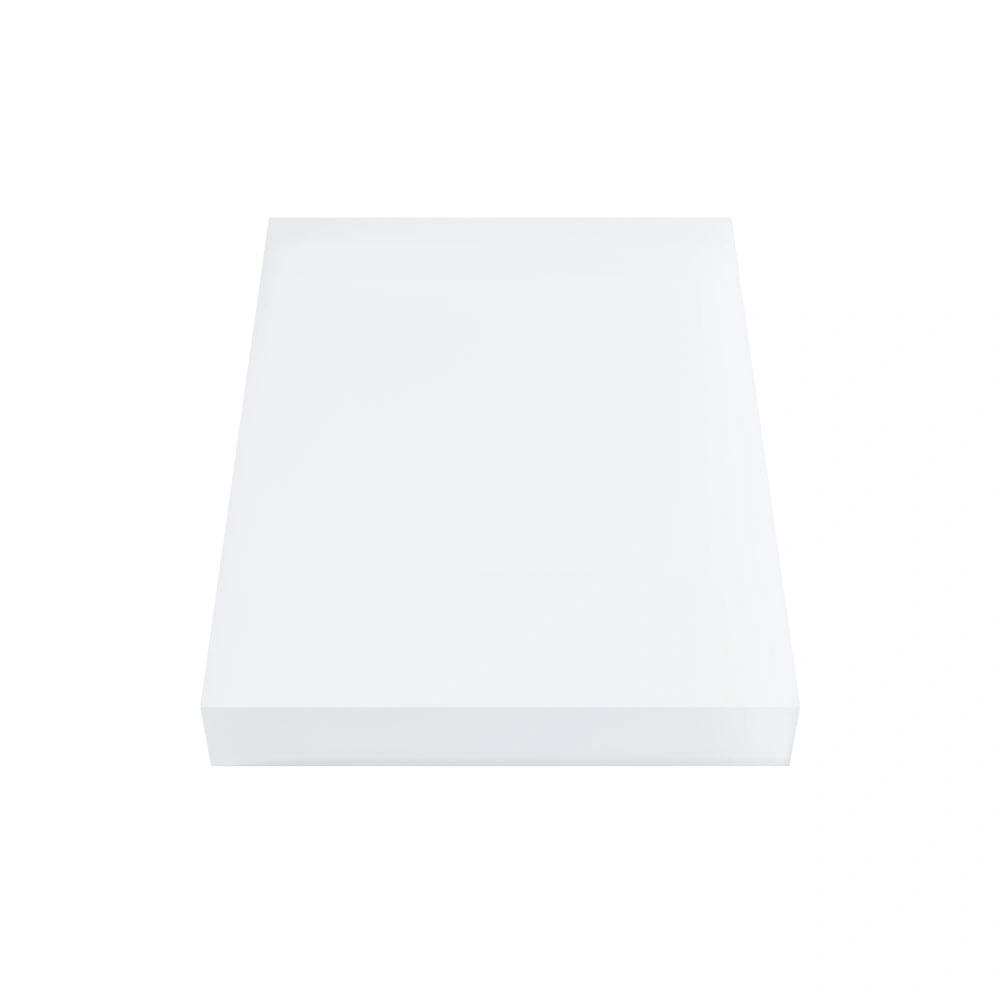

Section I and II
Section III
Registration Plate
Bone Section
High Contrast Resolution Section
Blank Insert
Linearity Insert
Low Contrast Artery Insert
150mg/ml Iodine Artery Insert
300mg/ml Iodine Artery Insert
- complies with:
- AAPM Report No. 15
- Performance Evaluation and Quality Assurance in Digital Subtraction Angiography
- Diagnostic X-Ray Imaging Committee/Digital Radiography/ Fluorography Task Group - May 1985
- IEC 61223-3-1
- CE certified
- the Manual provides detailed guidelines for carrying out each test, results assessment and registration
| Models and Ordering | ||
| Item Number | Item Name | Item Description |
| 02-117 | Pro-RF AAPM 15 | Includes All Modules Shown |
