Pro-RF 11 Steps
Radiography Step Wedge - Diagnomatic by Pro-Project - 02-306

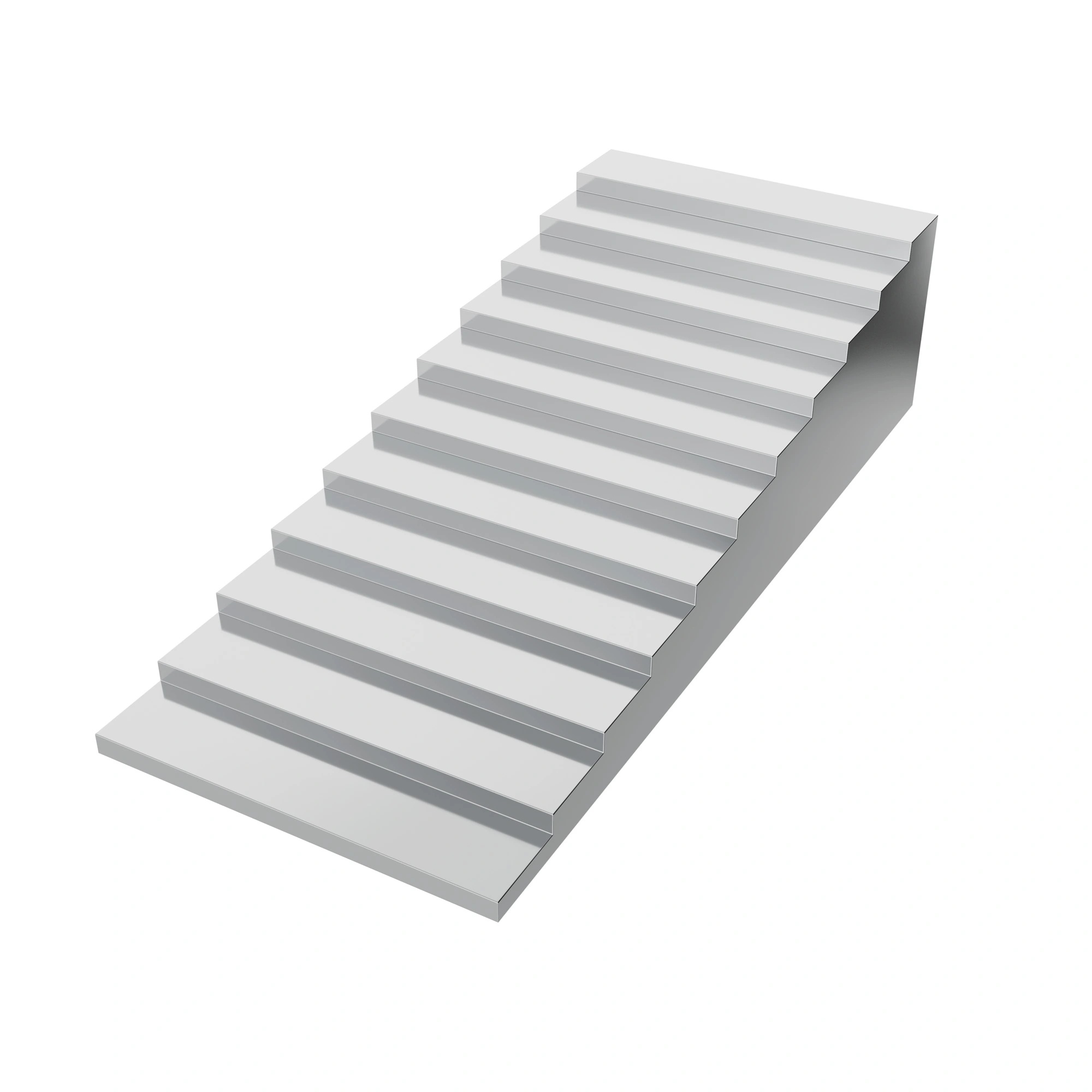

Pro-RF 11 Steps from Diagnomatic by Pro-Project provides 11 aluminum steps for checking dynamic range in digital and film-screen imaging.

Click a photo or illustration to enlarge it.

Models and Ordering

Specifications

• dimensions: 140 x 60 x 35.2 mm
• 11 steps 3.2 mm high and 12.7 mm deep
• made of the highest purity aluminium
• other sizes of step wedges upon request

Features and Test References

• complies with:
  – IEC 61223-3-1
• CE marked
• Includes a manual covering the tests, result evaluation and recording.
