Pro-Digi
Digital Radiography Test Phantom - Diagnomatic by Pro-Project - 02-102

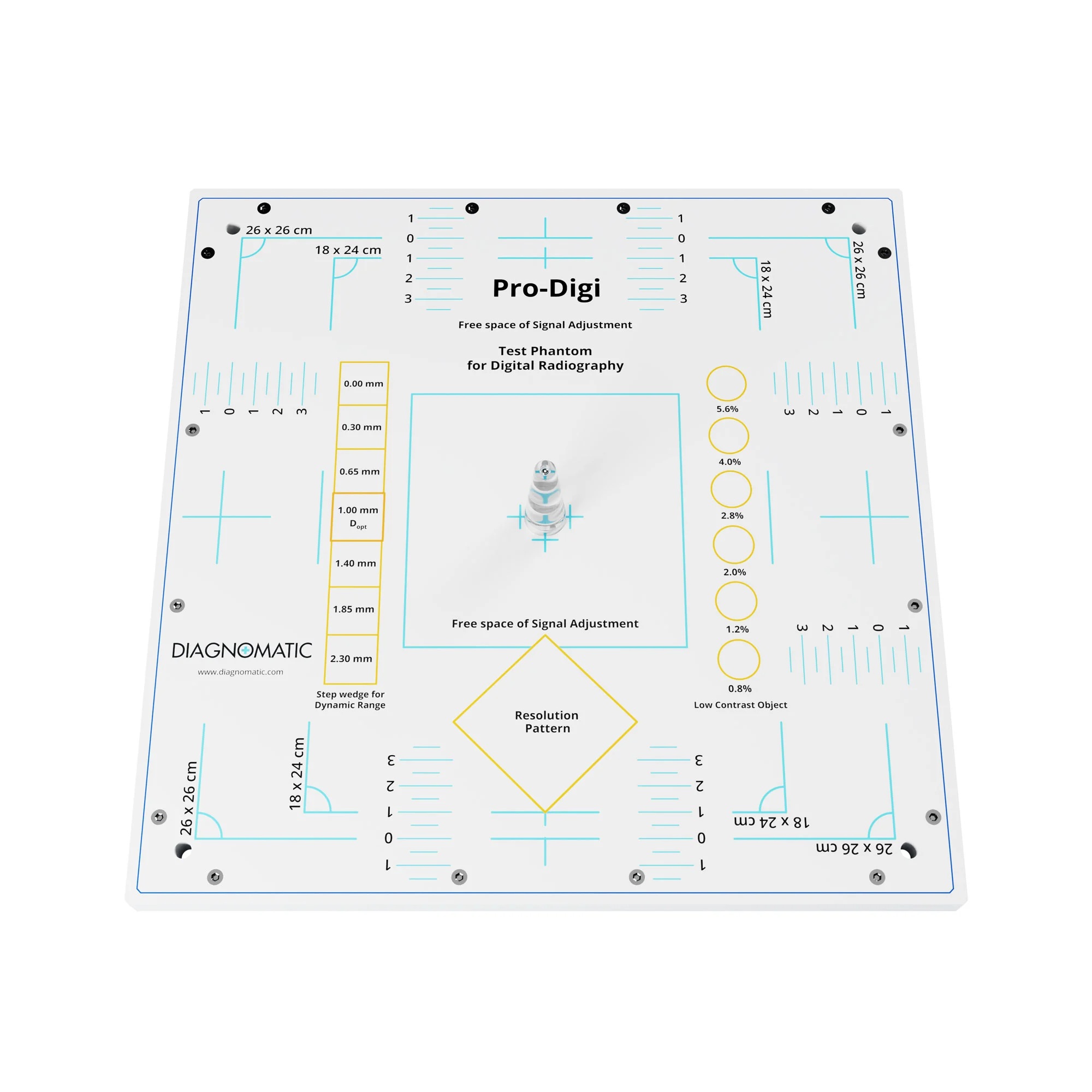

Pro-Digi from Diagnomatic by Pro-Project combines alignment, contrast and resolution targets for acceptance and routine checks of digital radiography systems.
Click a photo or illustration to enlarge it.
Models and Ordering
| Part number | Model / configuration |
|---|---|
| 02-102 | Pro-Digi |
It can be used to measure
- collimation / beam alignment
- position and size of the effective radiation field
- dynamic range
- spatial resolution
- contrast resolution
- homogeneity
Specifications
- dimensions: 310 x 310 x 14 mm
- 1 mm thick copper plate embedded in PMMA
- 7-step copper wedge
- 6 low contrast elements
- free area for signal calibration
- markings to determine the size and position of the effective radiation field
- pattern for line pair resolution evaluation (from 0.6 to 5.0 LP/mm)
- cone for perpendicular X-Ray beam control in the range of 0° ÷ 1.5°
Features and Test References
- complies with:
– IEC 61223-3-1
– DIN 6868/58 and DIN 6868/13 - CE marked
- Includes a manual covering the tests, result evaluation and recording.
